INSTRUMENT PANEL SAFETY PAD COMPONENTS

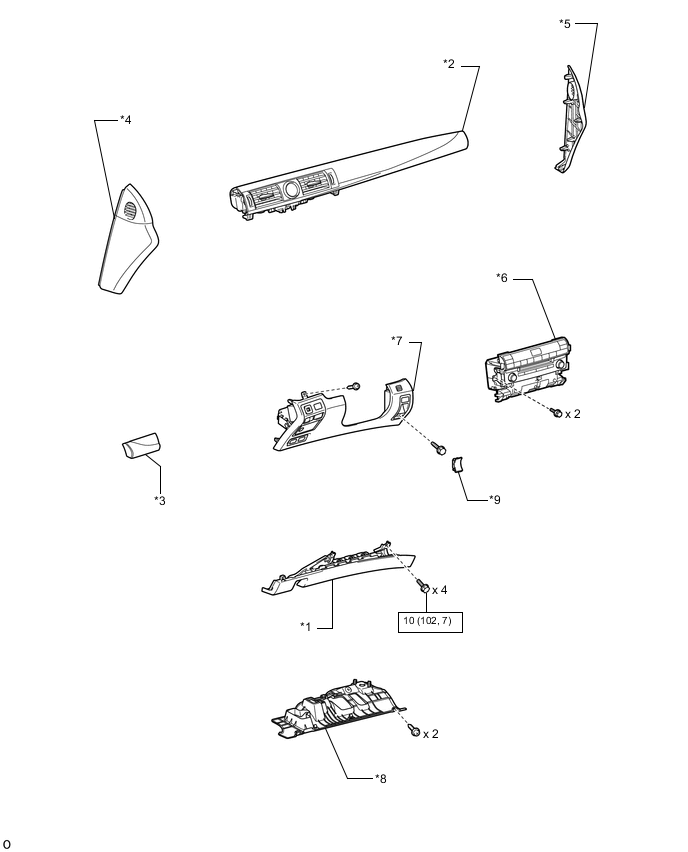

ILLUSTRATION
| *1 | DRIVER SIDE KNEE AIRBAG ASSEMBLY | *2 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY |
| *3 | INSTRUMENT PANEL ORNAMENT | *4 | INSTRUMENT SIDE PANEL LH |
| *5 | INSTRUMENT SIDE PANEL RH | *6 | MULTI-MEDIA MODULE RECEIVER ASSEMBLY |
| *7 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | *8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *9 | SWITCH BASE HOLE COVER | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

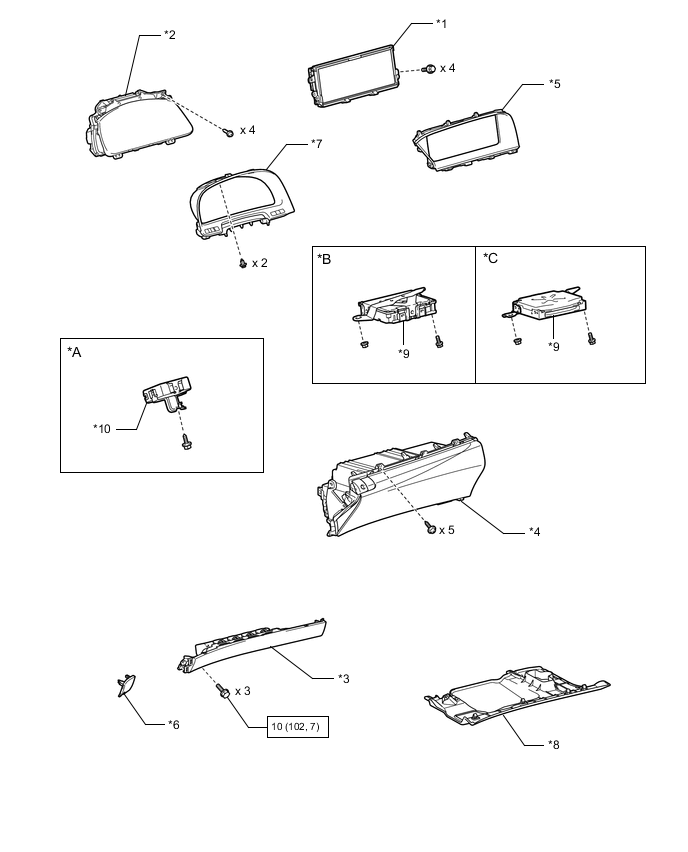

ILLUSTRATION
| *A | w/ Tire Pressure Warning System | *B | w/ Telematics Transceiver for G-BOOK |
| *C | w/ Telematics Transceiver except G-BOOK | - | - |
| *1 | ACCESSORY METER ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY | *4 | GLOVE COMPARTMENT DOOR ASSEMBLY |
| *5 | INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | *6 | LOWER INSTRUMENT PANEL |
| *7 | NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *8 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *9 | TELEMATICS TRANSCEIVER | *10 | TIRE PRESSURE MONITOR RECEIVER ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

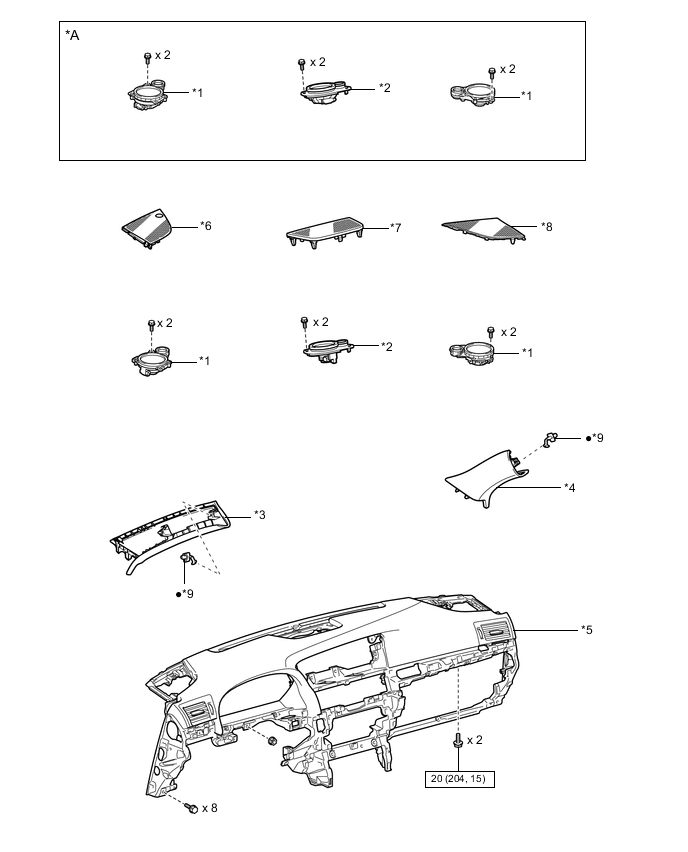

ILLUSTRATION
| *A | w/ 19 Speakers Models | - | - |
| *1 | FRONT NO. 2 SPEAKER ASSEMBLY | *2 | FRONT NO. 3 SPEAKER ASSEMBLY |
| *3 | FRONT PILLAR GARNISH LH | *4 | FRONT PILLAR GARNISH RH |
| *5 | INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | *6 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY |
| *7 | NO. 1 SPEAKER HOLE COVER | *8 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY |
| *9 | CLIP | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

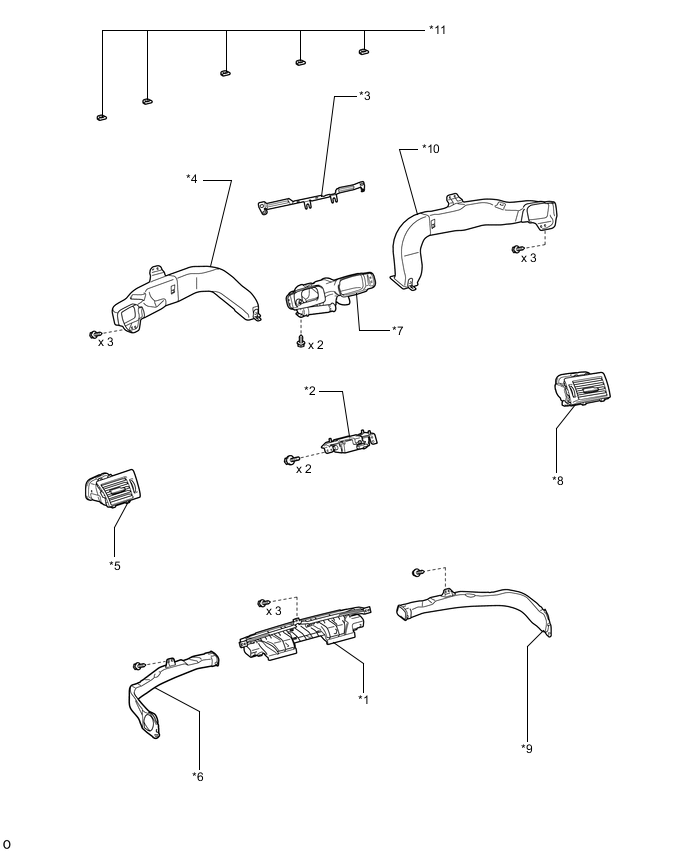

ILLUSTRATION
| *1 | DEFROSTER NOZZLE ASSEMBLY | *2 | ION GENERATOR SUB-ASSEMBLY |
| *3 | NO. 1 COMBINATION METER BRACKET | *4 | NO. 1 HEATER TO REGISTER DUCT |
| *5 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | *6 | NO. 1 SIDE DEFROSTER NOZZLE DUCT |
| *7 | NO. 2 HEATER TO REGISTER DUCT | *8 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *9 | NO. 2 SIDE DEFROSTER NOZZLE DUCT | *10 | NO. 3 HEATER TO REGISTER DUCT |
| *11 | NO. 3 INSTRUMENT PANEL STAY | - | - |

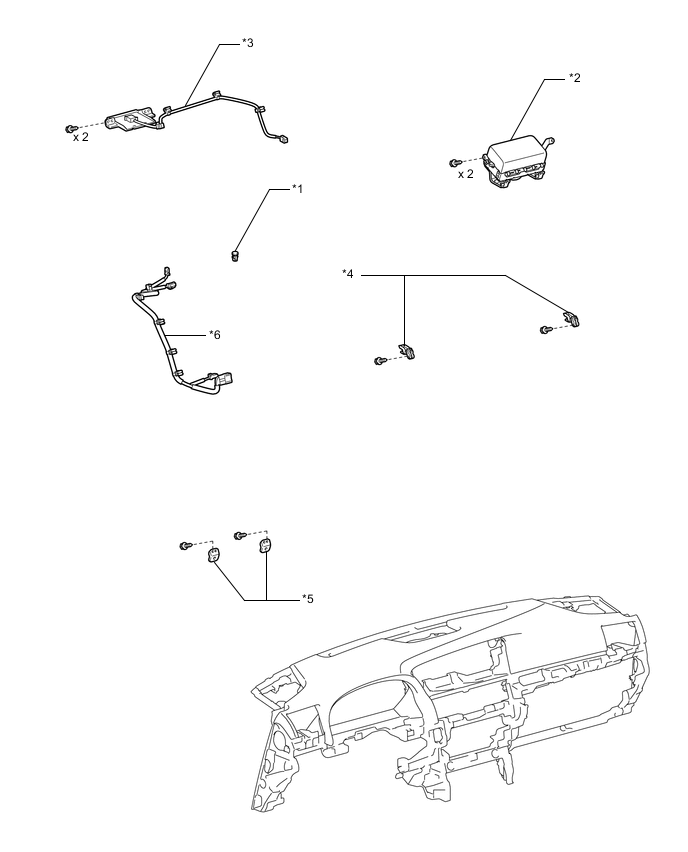

ILLUSTRATION
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | FRONT PASSENGER AIRBAG ASSEMBLY |
| *3 | NAVIGATION ANTENNA ASSEMBLY | *4 | NO. 1 INSTRUMENT PANEL PIN |
| *5 | NO. 1 METER HOOD RETAINER | *6 | NO. 2 INSTRUMENT PANEL WIRE |
