GARAGE DOOR OPENER SYSTEM ON-VEHICLE INSPECTION

PROCEDURE


  1. INSPECT GARAGE DOOR OPENER

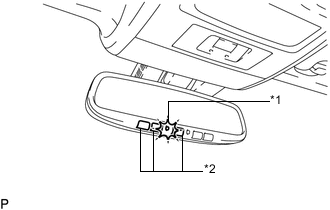

    1. A0019K0E04
      Text in Illustration
      *1 LED
      *2 Three "HomeLink" Switches

      Press each switch and check that the red LED turns on (either steady or flashing is acceptable). If all of the switches do not turn on the LED, confirm normal operation of the fuse and wire harness. If the fuse and/or wire harness are malfunctioning, replace them. If not, replace the inner rear view mirror assembly (garage door opener) Click here.

  2. INSPECT GARAGE DOOR OPENER REGISTRATION AND TRANSMITTING

    Tech Tips

    Use the "HomeLink" tester and a tester transmitter for this test. First clear the customer transmitter code, and then register the tester transmitter code.

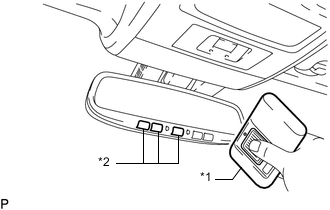

    1. A001FHGE03
      Text in Illustration
      *1 Tester Transmitter
      *2 "HomeLink" Switch Press

      Check if the test transmitter code was successfully registered.

      Tech Tips


      • Pressing any one of the garage door opener ("HomeLink") switches illuminates the LED (not flashing).

      • If the code cannot be registered, replace the inner rear view mirror assembly (garage door opener) Click here.

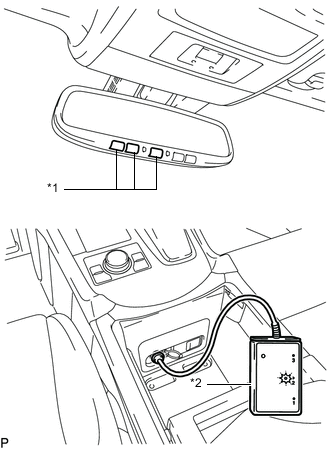

    2. A001BZRE03
      Text in Illustration
      *1 "HomeLink" Switch Press
      *2 "HomeLink" Tester

      Press a garage door opener ("HomeLink") switch. Check if the green LED of the "HomeLink" tester illuminates.

      Tech Tips

      If the green LED does not illuminate, replace the inner rear view mirror assembly (garage door opener) Click here.

    3. When the inspection is complete, clear all tester transmitter codes by entering Clear Mode. Then register the customer transmitter code(s) again.

      Tech Tips


      • Registration of the customer transmitter code(s) may not be possible in the service facility if the transmitters of the customer are not available or if any of the buttons are used for rolling code-type systems.

      • Refer to the Owner's Manual for additional information about registration (programming) of transmitter codes.
