REAR COMBINATION LIGHT ASSEMBLY (w/ Aero Stabilizing Fin) REASSEMBLY

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.


  1. INSTALL REAR COMBINATION LIGHT PROTECTOR LH


    1. Install the rear combination light protector LH to the rear combination light lens LH.

  2. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

    A003FGWE01
    Text in Illustration
    *a Clamp
    *b Guide

    1. Attach the clamp and 2 guides to install the rear combination light socket and wire sub-assembly LH.

  3. INSTALL BACK UP LIGHT BULB (NO. 1 REAR FOG LIGHT BULB)

    A003BTD

    1. Install the back up light bulb (No. 1 rear fog light bulb) to the rear combination light socket and wire sub-assembly LH.

    2. A003FVO

      Turn the rear combination light socket and wire sub-assembly LH with the back up light bulb (No. 1 rear fog light bulb) in the direction indicated by the arrow in the illustration to connect them as a unit.

  4. INSTALL REAR TURN SIGNAL LIGHT BULB

    A003AJW

    1. Install the rear turn signal light bulb to the rear combination light socket and wire sub-assembly LH.

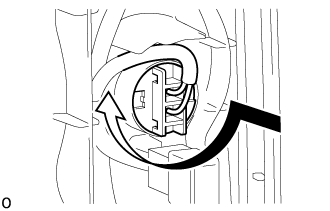

    2. A003E5U

      Turn the rear combination light socket and wire sub-assembly LH with the rear turn signal light bulb in the direction indicated by the arrow in the illustration to connect them as a unit.

  5. INSTALL TAIL AND STOP LIGHT BULB

    A003I1T

    1. Install the tail and stop light bulb to the rear combination light socket and wire sub-assembly LH.

    2. A003EF0

      Turn the rear combination light socket and wire sub-assembly LH with the tail and stop light bulb in the direction indicated by the arrow in the illustration to connect them as a unit.

  6. INSTALL REAR COMBINATION LIGHT BODY PACKING LH


    1. Install a new rear combination light body packing LH to the rear combination light lens LH.
