REAR COMBINATION LIGHT ASSEMBLY (w/ Aero Stabilizing Fin) DISASSEMBLY

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.


  1. REMOVE REAR COMBINATION LIGHT BODY PACKING LH

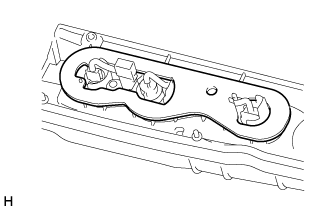

    A003EWU

    1. Remove the rear combination light body packing LH from the rear combination light lens LH.

      Note


      • Be sure to remove all the traces of the old rear combination light body packing LH from the body.

      • Do not reuse the removed rear combination light body packing LH. Be sure to install a new rear combination light body packing LH to prevent water ingress.

  2. REMOVE TAIL AND STOP LIGHT BULB

    A003C3S

    1. Turn the rear combination light socket and wire sub-assembly LH with the tail and stop light bulb in the direction indicated by the arrow to disconnect them as a unit.

    2. A003E07

      Remove the tail and stop light bulb from the rear combination light socket and wire sub-assembly LH.

  3. REMOVE REAR TURN SIGNAL LIGHT BULB

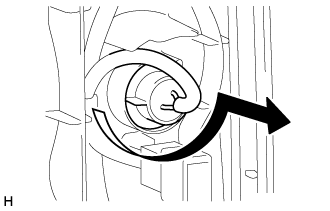

    A003FO7

    1. Turn the rear combination light socket and wire sub-assembly LH with the rear turn signal light bulb in the direction indicated by the arrow to disconnect them as a unit.

    2. A003CTO

      Remove the rear turn signal light bulb from the rear combination light socket and wire sub-assembly LH.

  4. REMOVE BACK UP LIGHT BULB (NO. 1 REAR FOG LIGHT BULB)

    A003D3Z

    1. Turn the rear combination light socket and wire sub-assembly LH with the back up light bulb (No. 1 rear fog light bulb) in the direction indicated by the arrow to disconnect them as a unit.

    2. A003DZY

      Remove the back up light bulb (No. 1 rear fog light bulb) from the rear combination light socket and wire sub-assembly LH.

  5. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

    A003HAEE01
    Text in Illustration
    *1 Clamp
    *2 Guide

    1. Detach the clamp and 2 guides and remove the rear combination light socket and wire sub-assembly LH.

  6. REMOVE REAR COMBINATION LIGHT PROTECTOR LH

    A003FRN

    1. Remove the rear combination light protector LH from the rear combination light lens LH.
