REAR SEAT OUTER BELT ASSEMBLY COMPONENTS

ILLUSTRATION

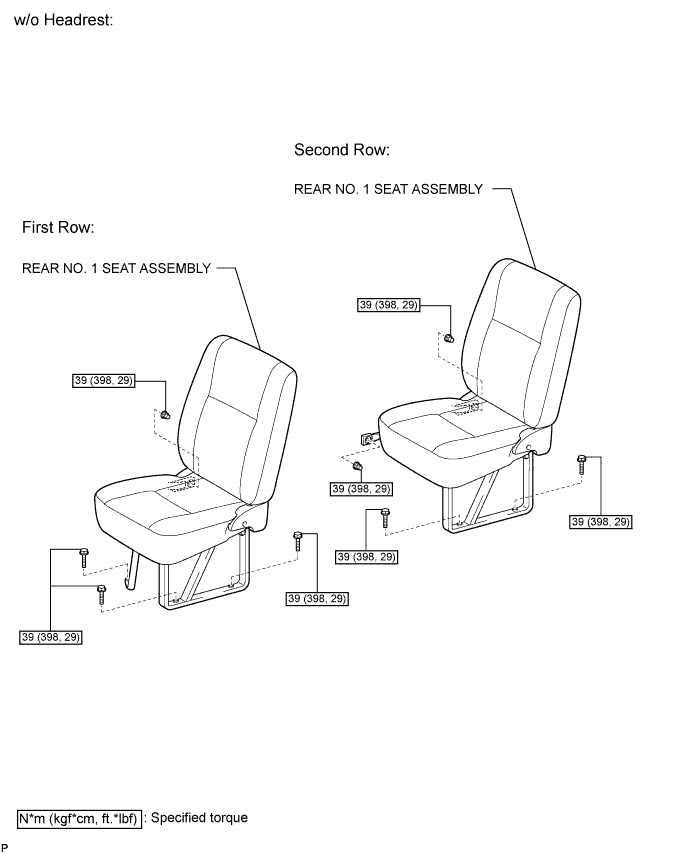

A003CZQE05

ILLUSTRATION

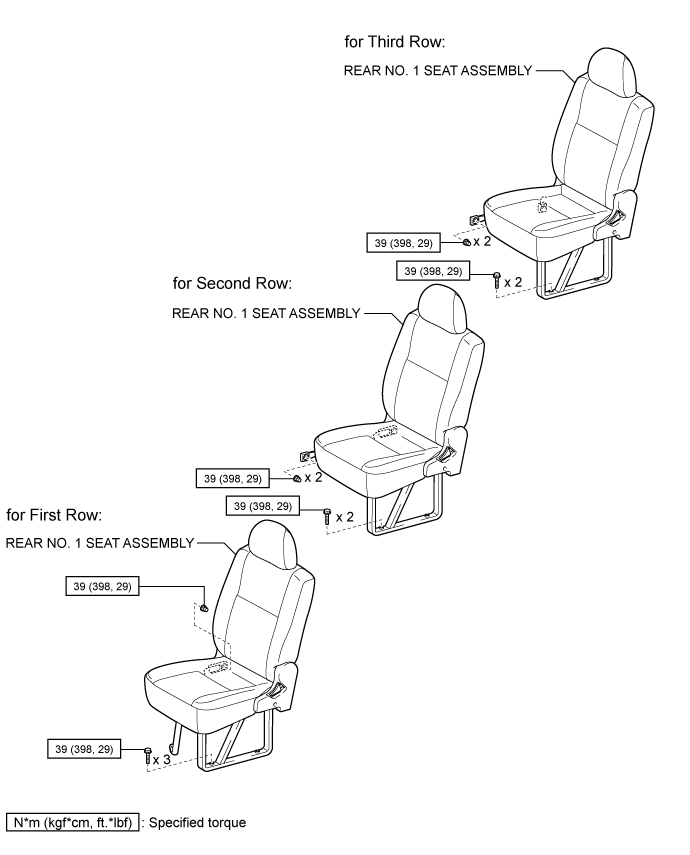

A003CH9E05

ILLUSTRATION

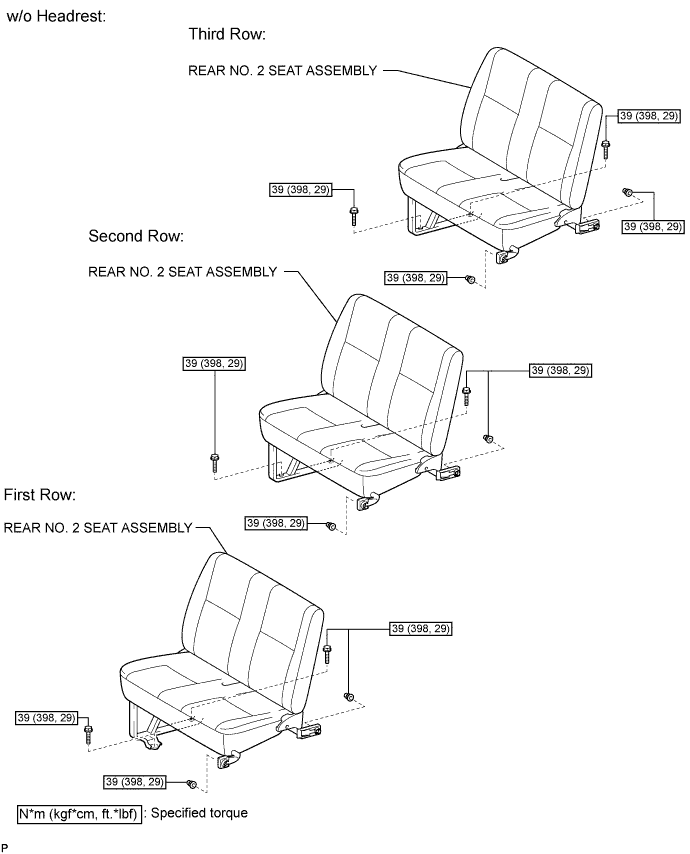

A003BRHE05

ILLUSTRATION

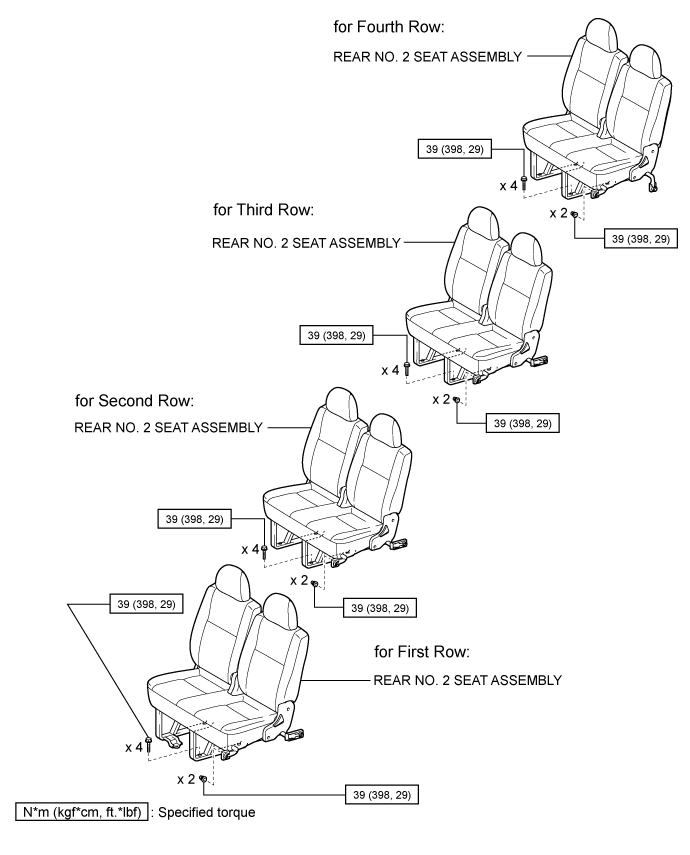

A003CRBE05

ILLUSTRATION

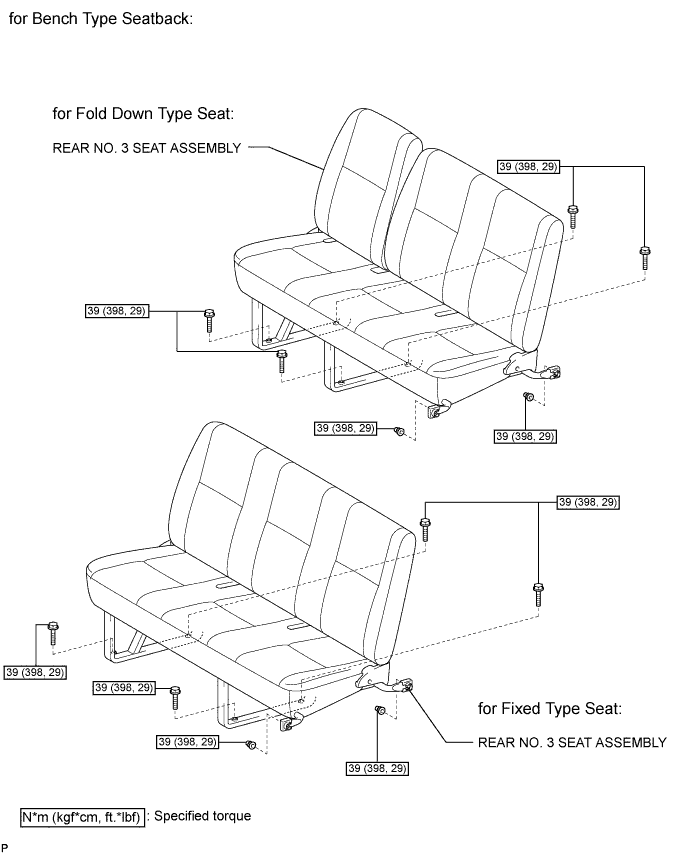

A003AQDE08

ILLUSTRATION

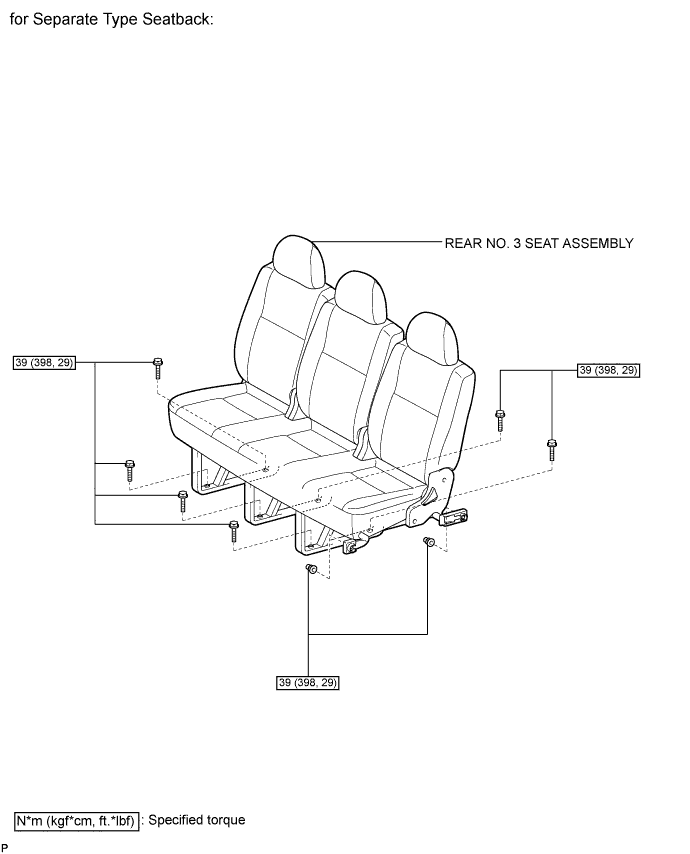

A003HI9E09

ILLUSTRATION

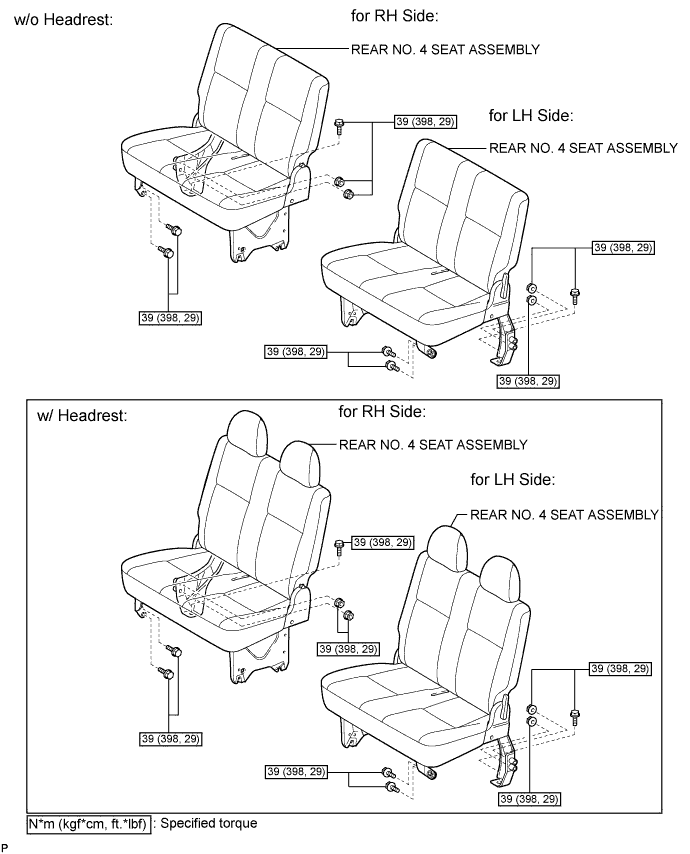

A003HWUE06

ILLUSTRATION

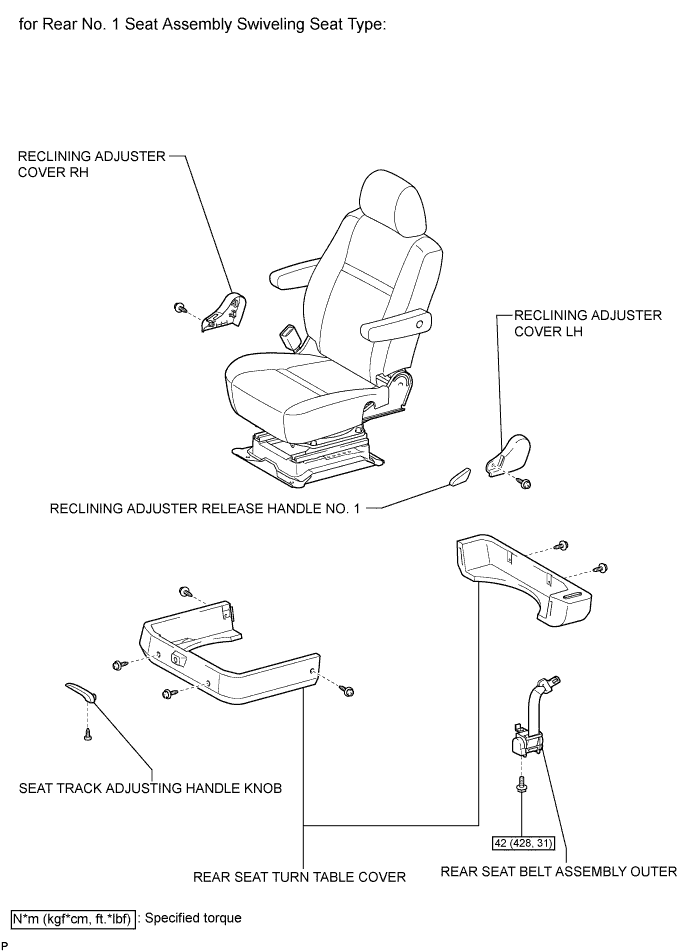

A003BGPE03

ILLUSTRATION

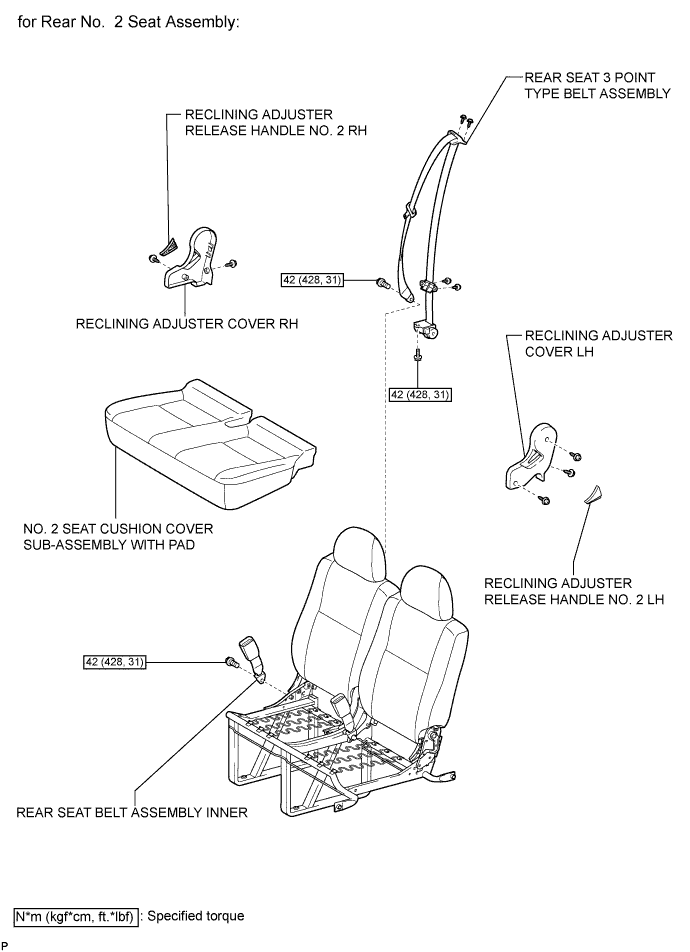

A003GWEE03

ILLUSTRATION

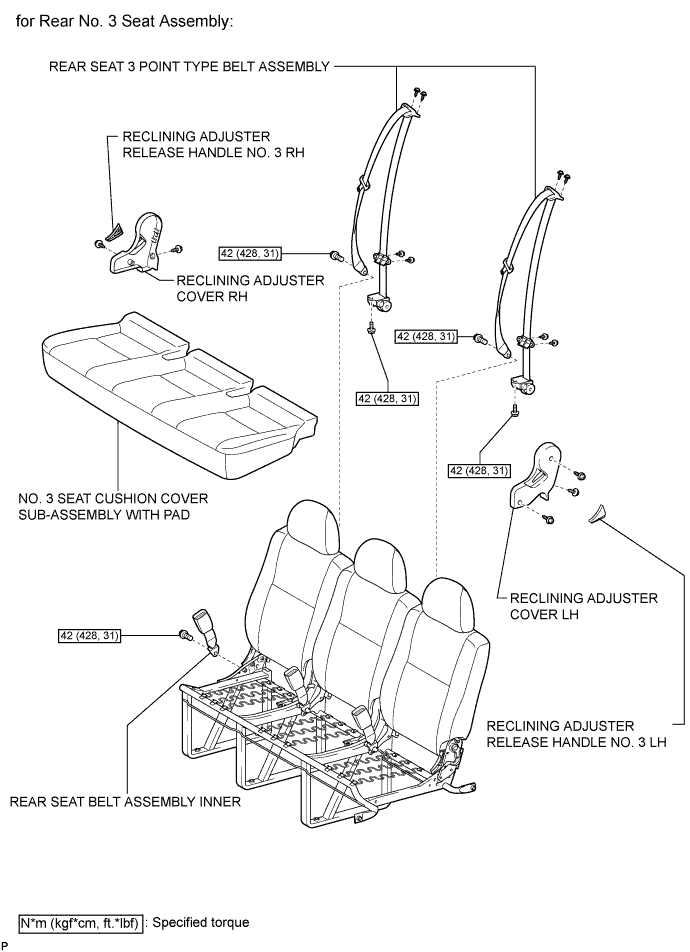

A003D51E03

ILLUSTRATION

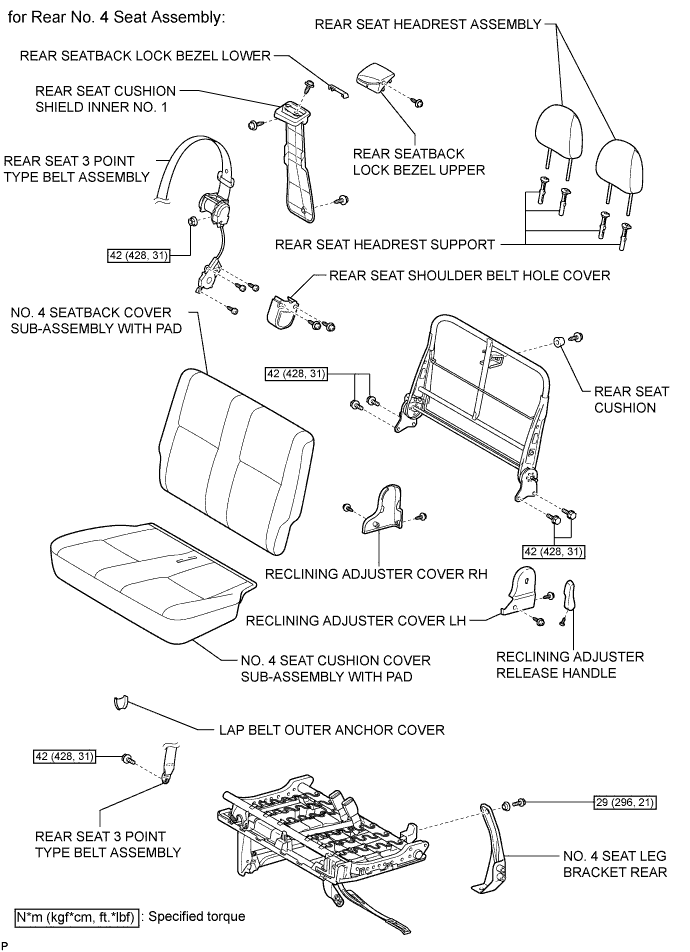

A003GSQE02

ILLUSTRATION

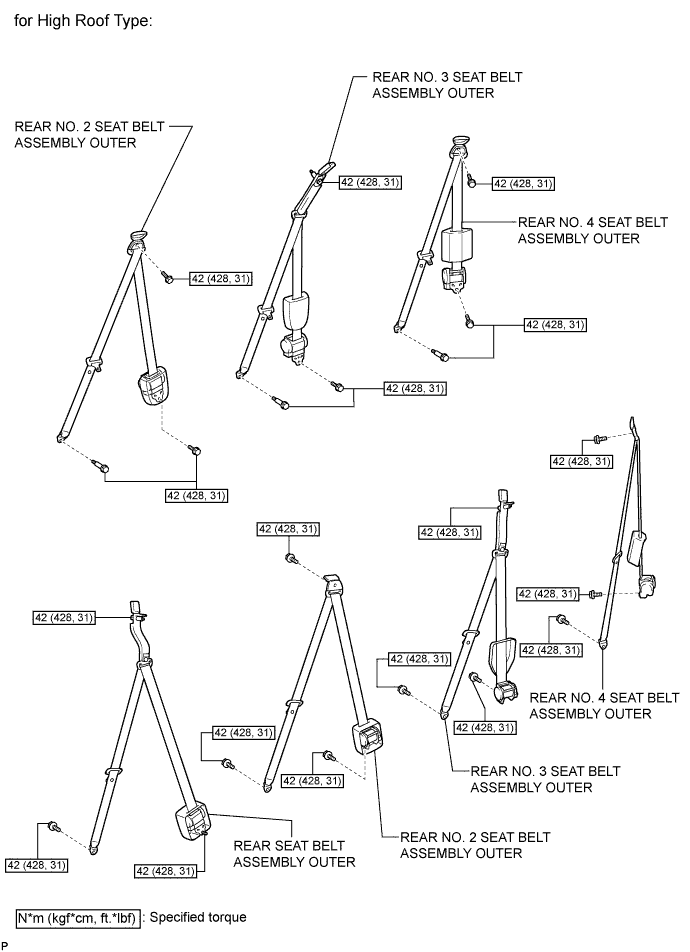

A003AEYE03

ILLUSTRATION

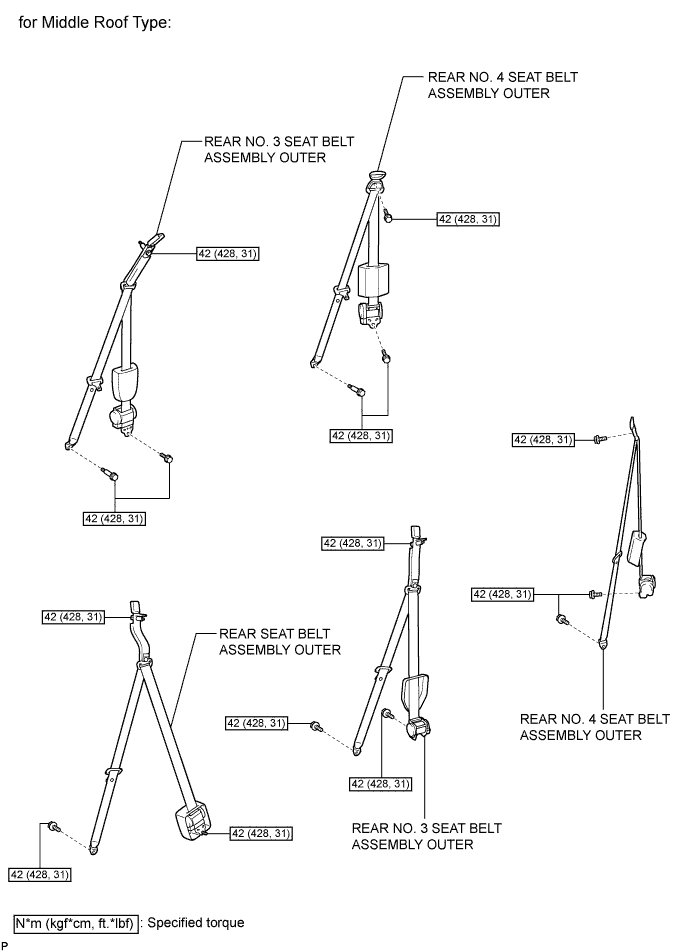

A003EEAE05

ILLUSTRATION

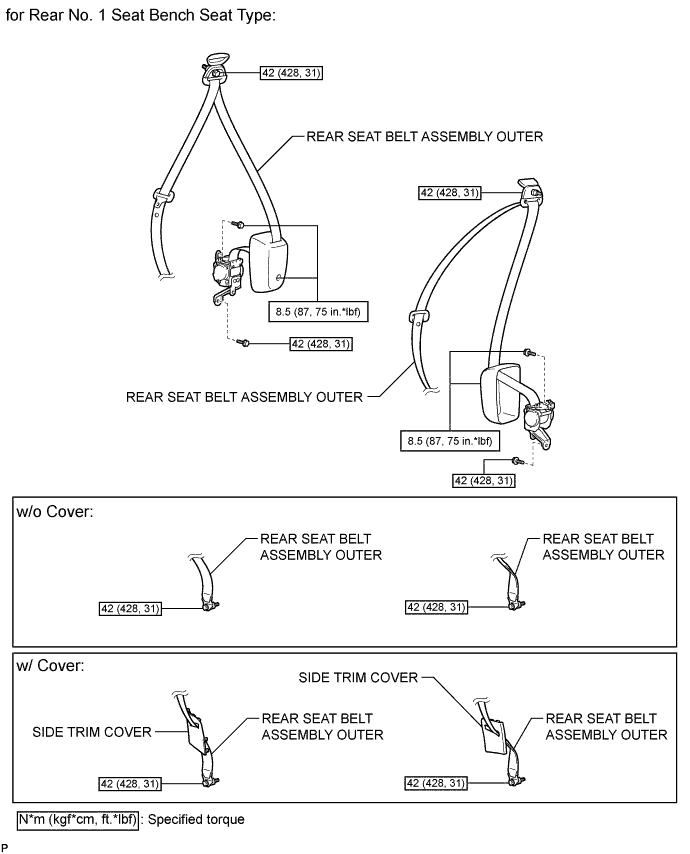

A003F1PE02
