REAR SEAT OUTER BELT ASSEMBLY COMPONENTS

ILLUSTRATION

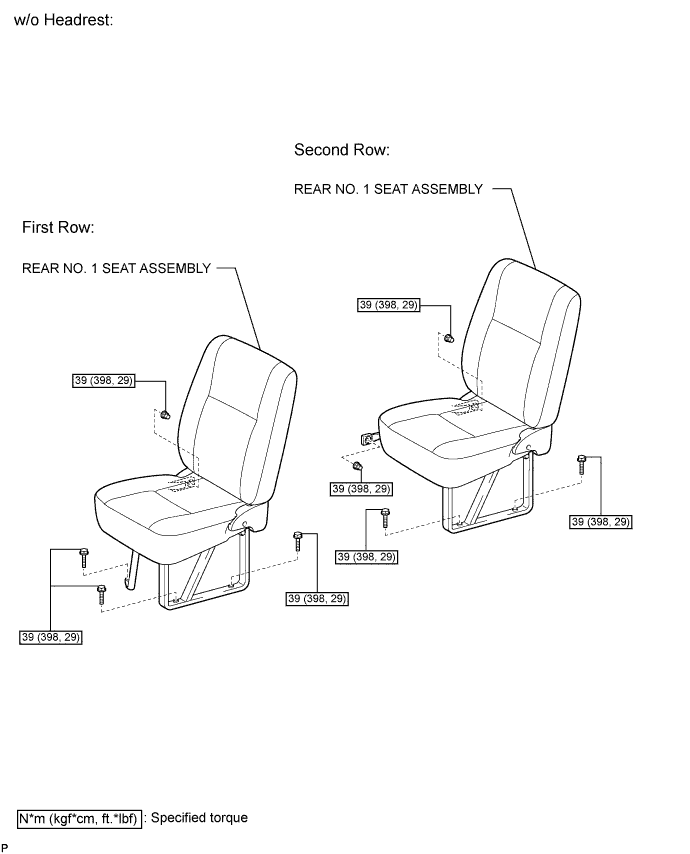

A003CZQE03

ILLUSTRATION

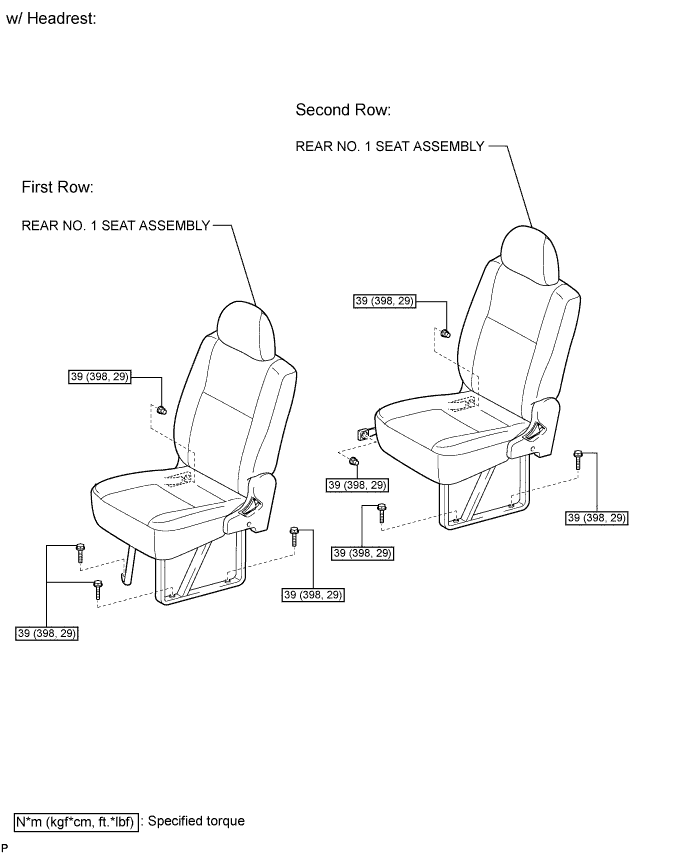

A003FY9E04

ILLUSTRATION

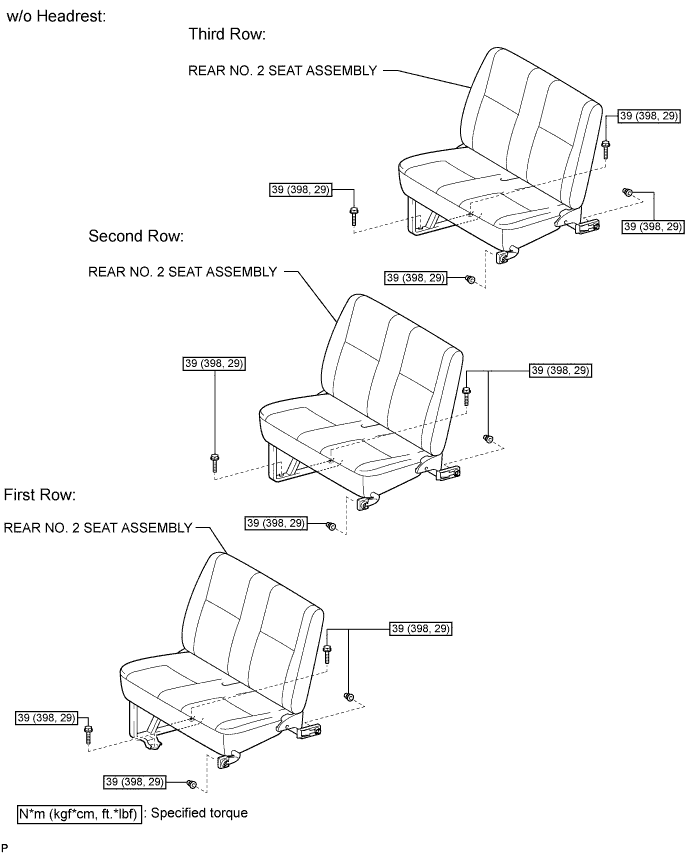

A003BRHE03

ILLUSTRATION

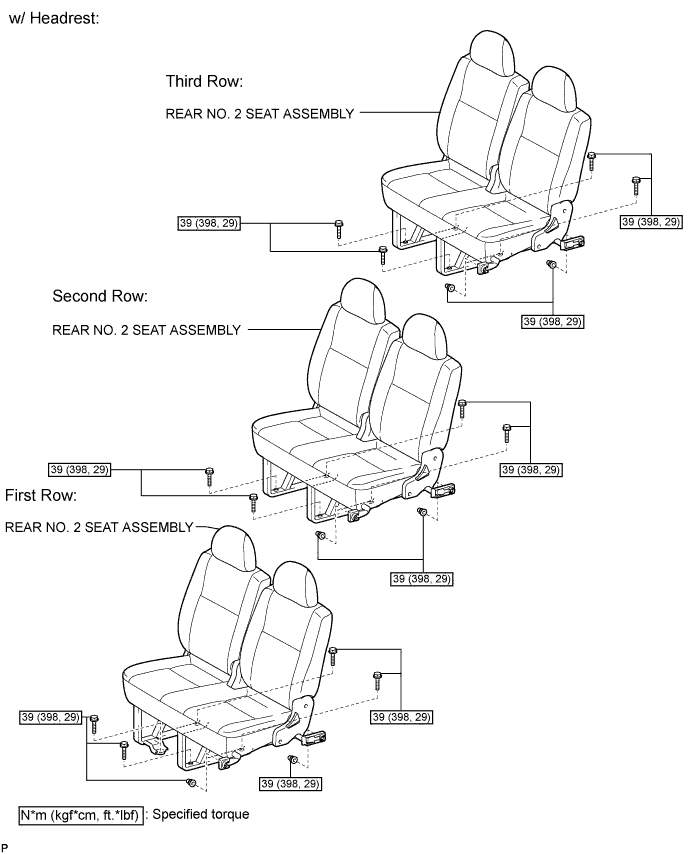

A003FKVE04

ILLUSTRATION

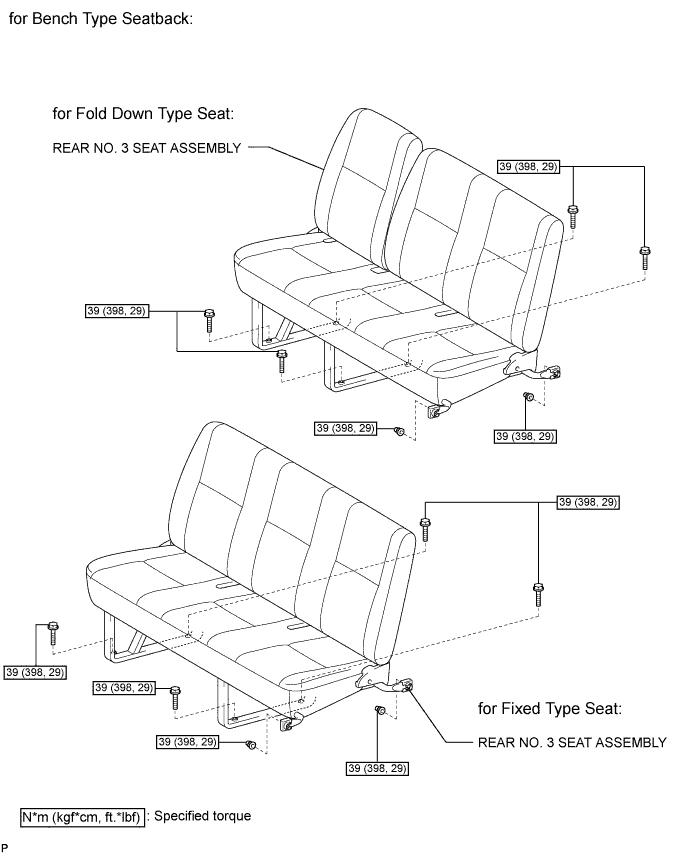

A003AQDE07

ILLUSTRATION

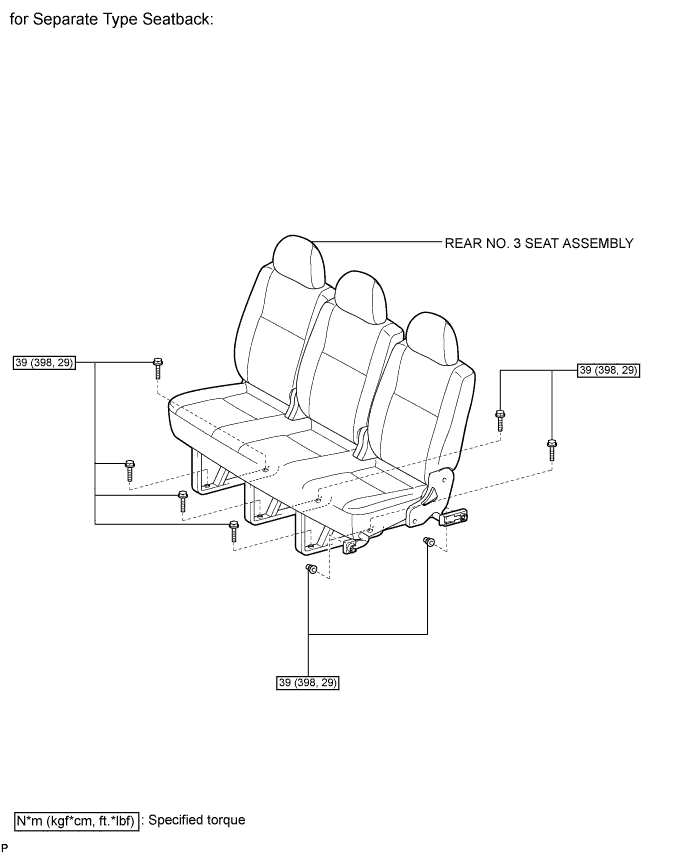

A003HI9E06

ILLUSTRATION

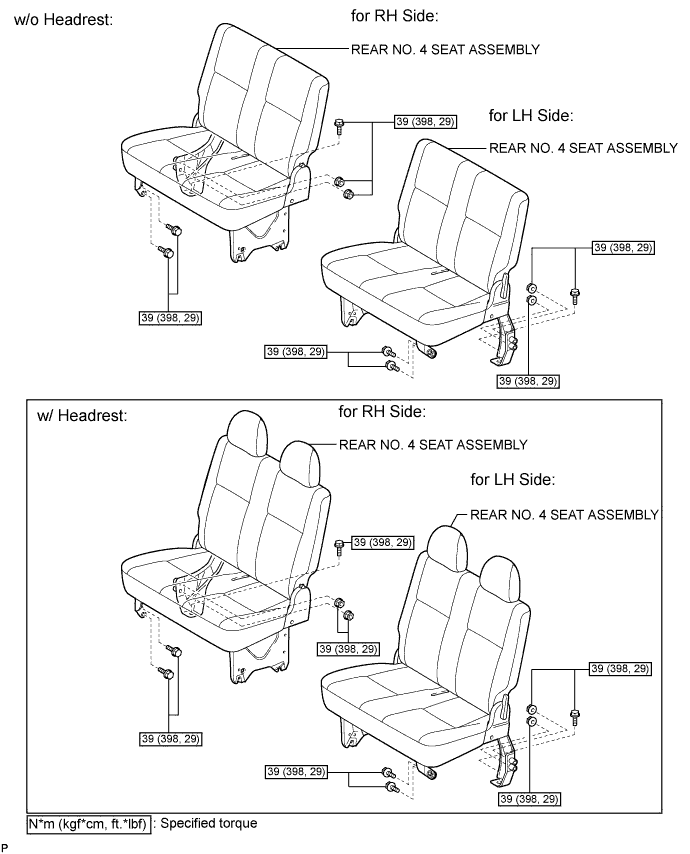

A003HWUE03

ILLUSTRATION

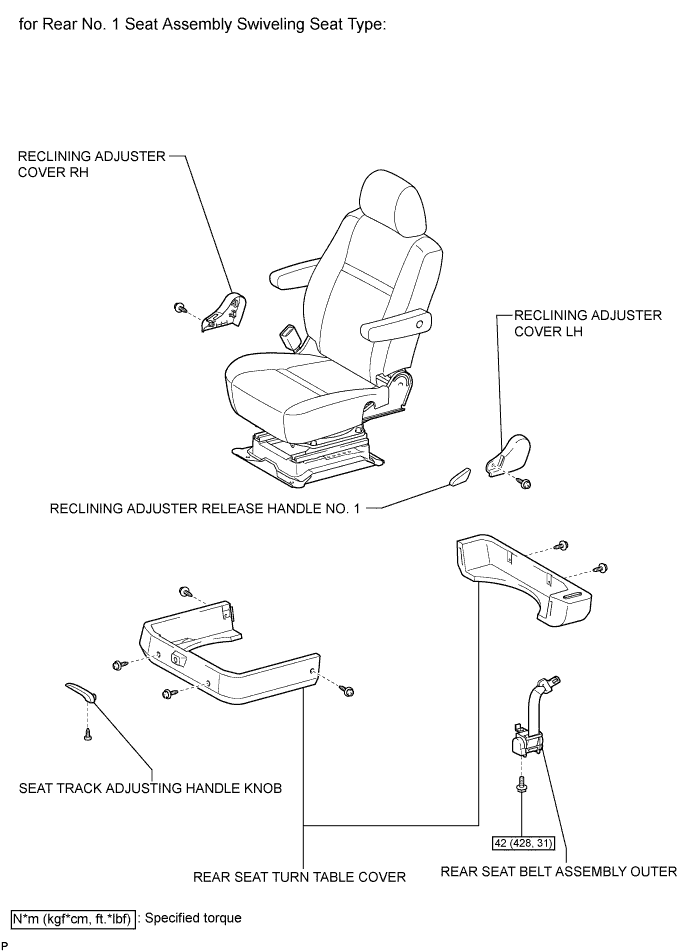

A003BGPE02

ILLUSTRATION

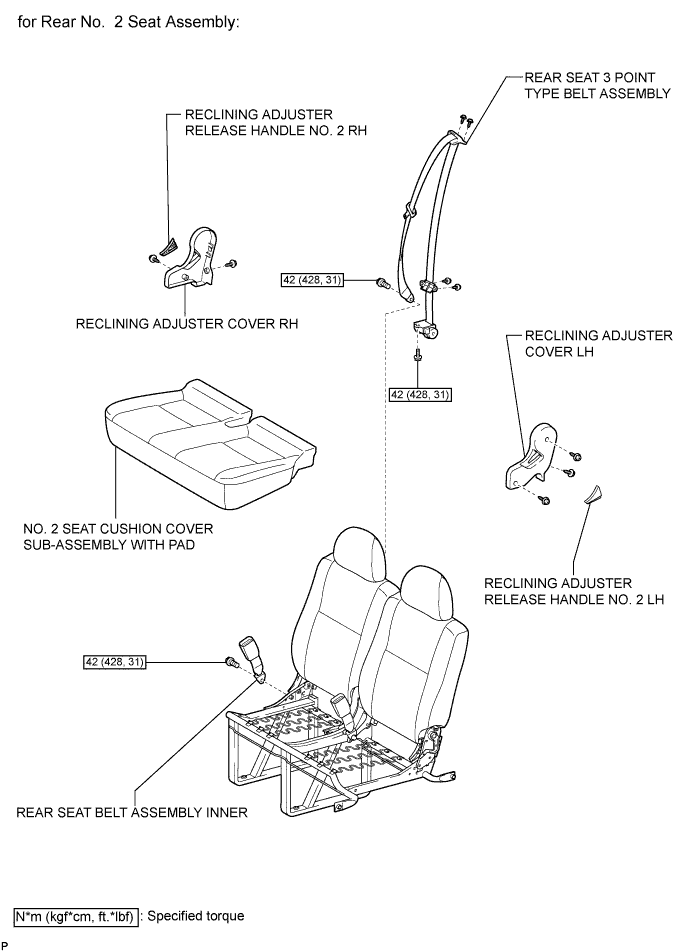

A003GWEE02

ILLUSTRATION

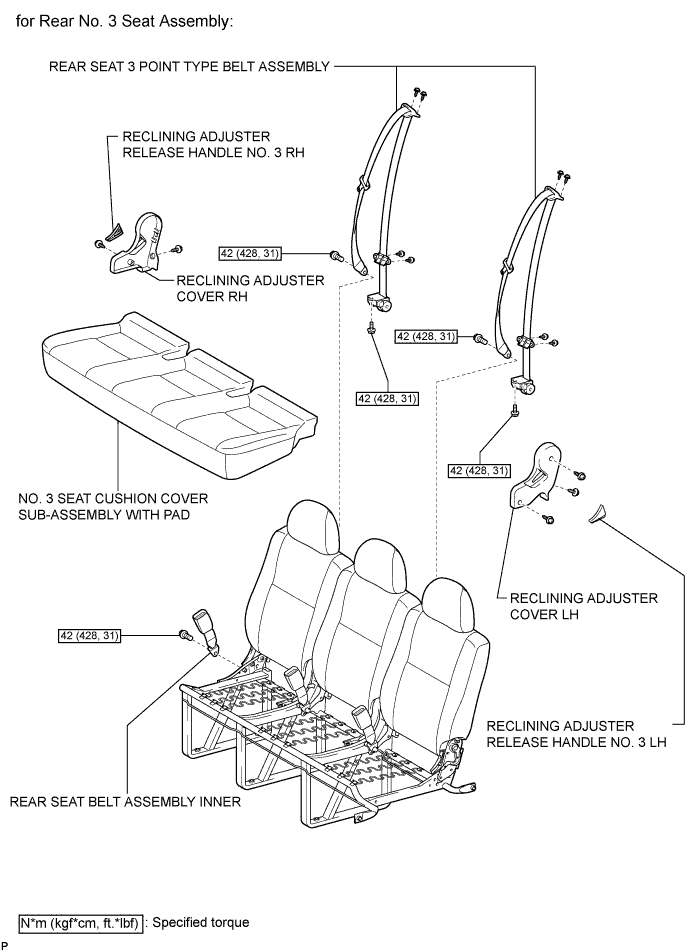

A003D51E02

ILLUSTRATION

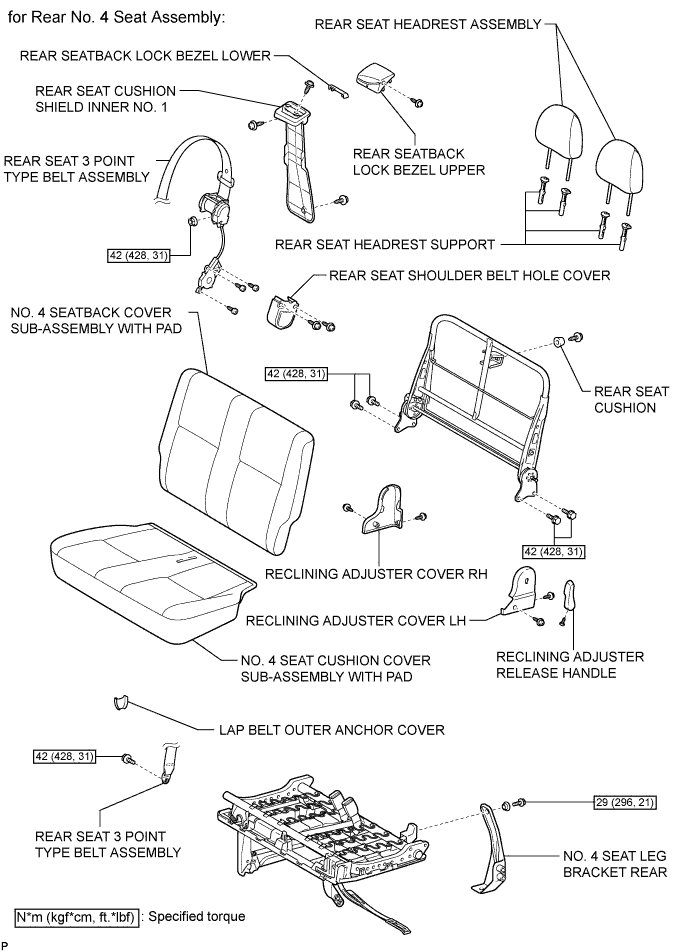

A003GSQE01

ILLUSTRATION

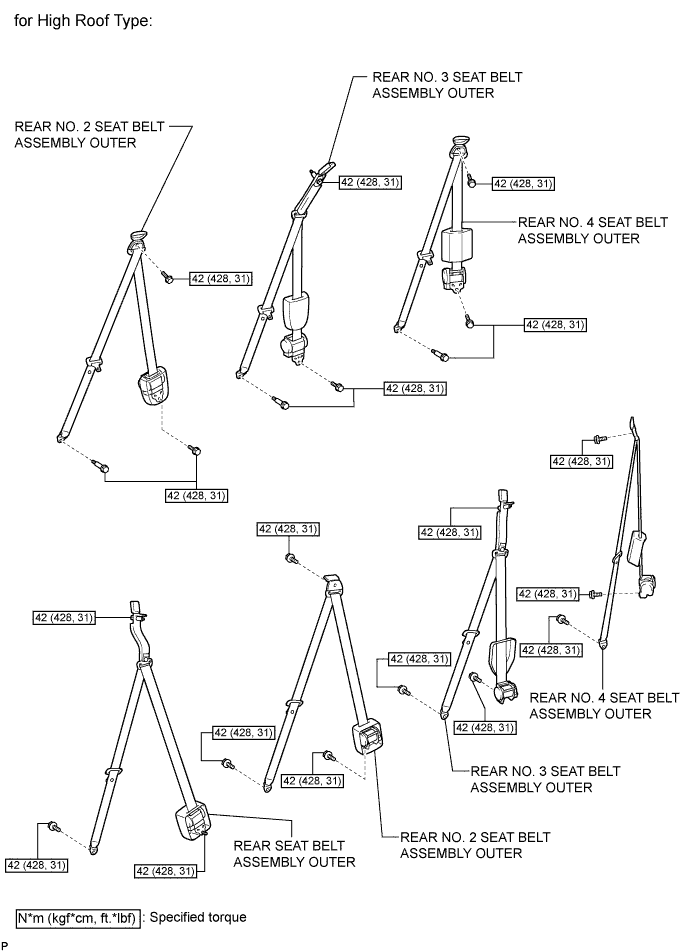

A003AEYE02

ILLUSTRATION

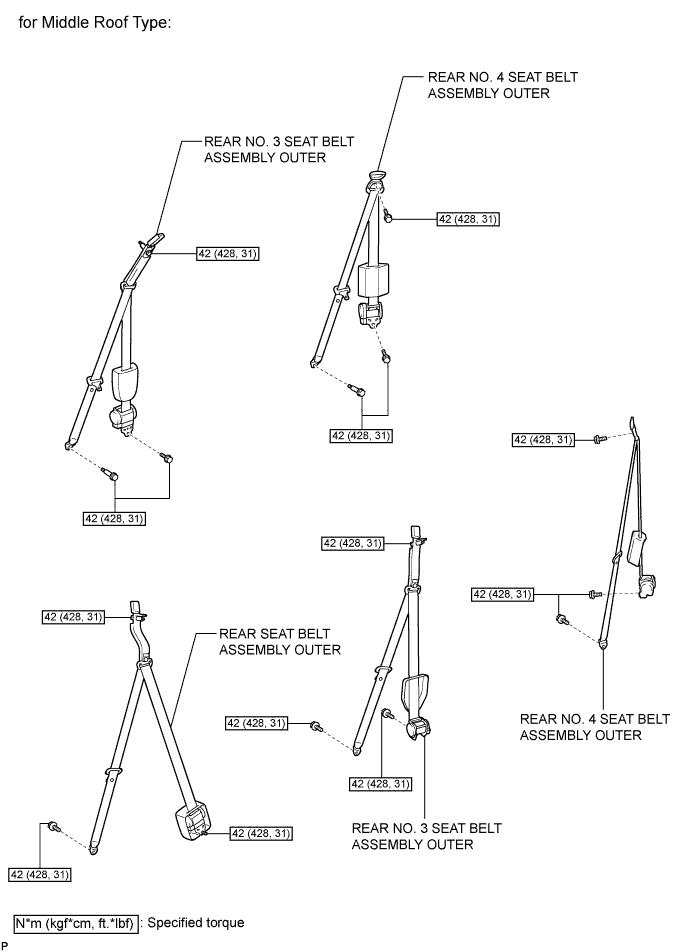

A003EEAE03

ILLUSTRATION

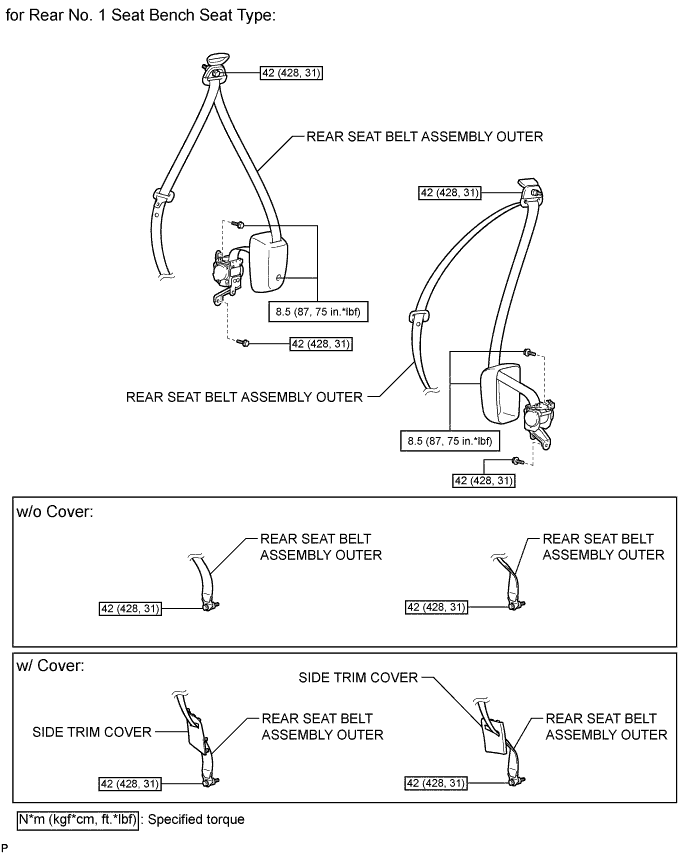

A003F1PE01
