SHIFT AND SELECT TRANSMISSION CONTROL CABLE REMOVAL


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE TRANSMISSION CONTROL CABLE INSULATOR (for RHD) (w/ DPF)


    1. A003D52

      Remove the nut and No. 1 transmission control cable insulator from the select outer lever.

    2. Remove the 2 nut and No. 2 transmission control cable insulator from the No. 1 transmission control cable bracket.

  3. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY


    1. A003H3DE02

      Put matchmarks on the transmission control cable assembly and the select outer lever.

    2. Put matchmarks on the transmission control cable assembly and the shift outer lever.

    3. Remove the nut and disconnect the transmission control cable assembly from the select outer lever.

    4. Remove the nut and disconnect the transmission control cable assembly from the shift outer lever.

    5. A003C9R

      Using a screwdriver, disengage the claws of the 2 clips.

    6. Remove the 2 transmission control cable assemblies and 2 clips from the No. 1 transmission control cable bracket.

    7. A003CV9

      Remove the bolt and control cable support.

    8. A003ARU

      Remove the bolt and separate the clamp.

    9. A003D3D

      Remove the 2 nuts and No. 2 control cable bracket.

  4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER


    1. A003FBF

      Using a clip remover, remove the 2 clips.

    2. Detach the 4 clips and remove the instrument panel finish lower.

    3. Disconnect each connector.

    4. A003EOU

      Push the positions indicated by the arrows in the illustration to disconnect the fuel lid lock control cable and bonnet (hood) control cable assembly from the instrument panel finish lower.

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY


    1. A003DP4

      Using a clip remover, remove the 2 clips

    2. Detach the 3 claws and remove the instrument panel under cover sub-assembly No. 1.

  6. REMOVE PARKING BRAKE HOLE COVER


    1. A003FEU

      Detach the 6 claws and remove the parking brake hole cover.

    2. Disconnect each connector.

  7. REMOVE SHIFT LEVER KNOB


    1. A003GWUE01
      Text in Illustration
      *A for Manual Transmission
      *B for Automatic Transmission

      Turn the shift lever knob in the direction indicated by the arrow and remove it.

  8. REMOVE SHIFTING HOLE COVER ASSEMBLY


    1. A003G6YE01
      Text in Illustration
      *A for Manual Transmission
      *B for Automatic Transmission

      for Manual Transmission:

      Detach the 6 claws and remove the shifting hole cover assembly.

    2. for Automatic Transmission:

      Detach the 8 claws and remove the shifting hole cover assembly.

  9. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER


    1. A003HDQE01
      Text in Illustration
      *A for Manual Transmission
      *B for Automatic Transmission

      Detach the 8 claws and remove the instrument panel finish panel lower center.

  10. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

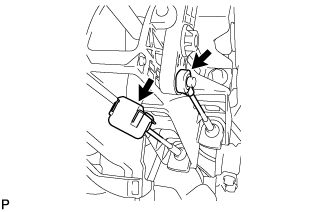

    1. A003AOZ

      Separate the transmission control cable assembly from the shift lever.

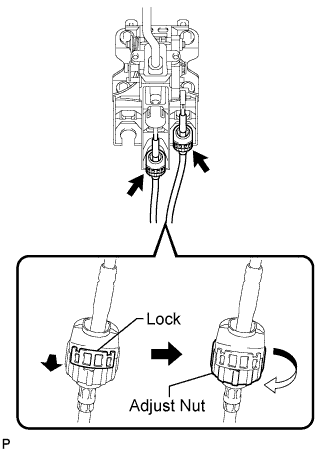

    2. A003B9HE01

      Pull out the control cable assembly locks.

    3. Turn the adjust nut clockwise 180°. While holding the adjust nut, separate the control cable assembly.

    4. A003E6B

      Wide body LHD steering position type:


      1. Remove the 2 nuts and No. 3 control cable bracket.

      2. Remove the No. 3 control cable bracket from the transmission control cable assembly.

    5. A003GF8

      Remove the 2 nuts and front floor footrest.

    6. A003E1A

      Remove the 2 bolts and transmission control cable assembly.
