INPUT SHAFT DISASSEMBLY


  1. REMOVE SYNCHRONIZER RING NO.2


    1. A003AW5

      Remove the synchronizer ring No.2.

  2. REMOVE INPUT SHAFT BEARING


    1. A003AOL

      Remove the 13 input shaft bearings from the input shaft assembly.

  3. REMOVE INPUT SHAFT FRONT BEARING

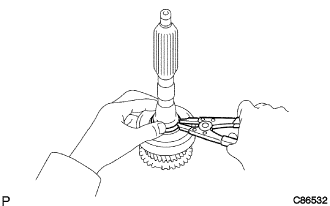

    1. A003CKF

      Using a snap ring expander, remove the snap ring.

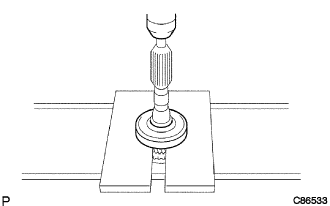

    2. A003HO9

      Using SST and a press, remove the input shaft shim from the input shaft.

      SST
      09527-10011
