CONDENSER REMOVAL

PROCEDURE


  1. REMOVE FRONT BUMPER COVER


    1. Remove the front bumper cover Click here.

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Click here

  3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Click here

  4. REMOVE OIL COOLER ASSEMBLY (w/ Air Cooled Transmission Oil Cooler)

    Click here

  5. REMOVE RADIATOR GRILLE BRACKET


    1. A004TUH

      Remove 2 bolts, nut and radiator grille bracket.

  6. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

    A004OGQ

    1. Remove the bolt and disconnect the discharge hose sub-assembly from the condenser.

      Note

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

    2. Remove the O-ring from the discharge hose sub-assembly.

      Note

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  7. DISCONNECT SUCTION PIPE SUB-ASSEMBLY

    A004RIA

    1. Remove the bolt and disconnect the suction pipe sub-assembly from the condenser.

      Note

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

    2. Remove the O-ring from the suction pipe sub-assembly.

      Note

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  8. REMOVE UPPER RADIATOR SUPPORT


    1. A004REY

      Remove the 2 bolts and 2 upper radiator supports.

    2. Remove the 2 radiator support cushions.

  9. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY


    1. A004NST

      Remove the 4 bolts, upper radiator support sub-assembly LH and upper radiator support sub-assembly RH.

  10. REMOVE CONDENSER ASSEMBLY WITH RECEIVER

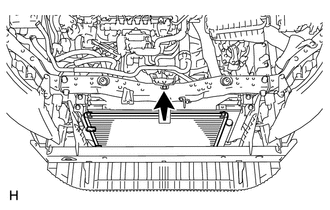

    1. A004QYL

      Remove the condenser assembly with receiver as shown in the illustration.
