CAN COMMUNICATION SYSTEM SYSTEM DIAGRAM

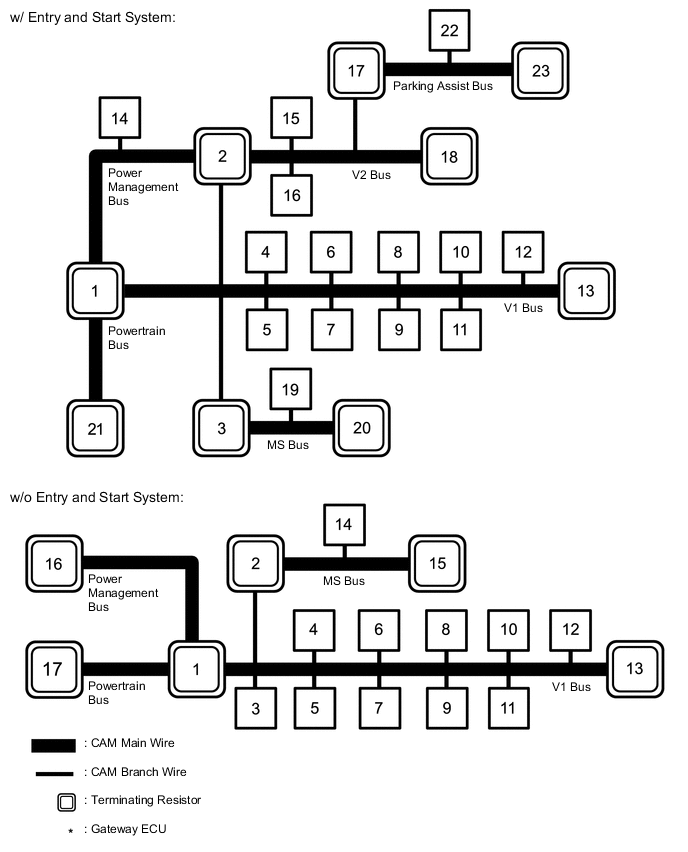

  1. SYSTEM DIAGRAM

    A004ODJE02
    w/ Entry and Start System
    No. ECU/Sensor Name
    1 ECM
    2 Power management control ECU
    3 Main body ECU (instrument panel junction block assembly)
    4 Brake actuator assembly (skid control ECU)
    5 Parking brake with bracket actuator assembly (parking brake ECU)
    6 Certification ECU (smart key ECU assembly)
    7 Power steering ECU assembly
    8 Spiral with sensor cable sub-assembly (steering angle sensor)
    9 Yaw rate sensor
    10 DLC3
    11 Center airbag sensor assembly
    12 Radio and display receiver assembly*1
    13 Combination meter assembly
    14 Air conditioning amplifier assembly
    15 Headlight swivel ECU assembly (AFS ECU)*2
    16 Seat belt control ECU*3
    17 Driving support ECU assembly*4
    18 CAN junction connector
    19 Position control ECU assembly*5
    20 Multiplex tilt and telescopic ECU*6
    21 Transmission control ECU assembly (TCM)*7
    22 Lane recognition camera sensor assembly*8
    23 Millimeter wave radar sensor assembly*4

    • *1: for Radio and Display Type

    • *2: w/ Adaptive Front-lighting System

    • *3: w/ Pre-crash Safety System

    • *4: w/ Dynamic Radar Cruise Control System

    • *5: w/ Seat Position Memory System

    • *6: for Power Tilt and Power Telescopic Steering Column

    • *7: for Automatic Transaxle

    • *8: w/ Lane-keeping Assist System

    w/o Entry and Start System
    No. ECU/Sensor Name
    1 ECM
    2 Main body ECU (instrument panel junction block assembly)
    3 Brake actuator assembly (skid control ECU)
    4 Parking brake with bracket actuator assembly (parking brake ECU)
    5 Power steering ECU assembly
    6 Air conditioning amplifier assembly
    7 Spiral with sensor cable sub-assembly (steering angle sensor)
    8 Yaw rate sensor
    9 DLC3
    10 Center airbag sensor assembly
    11 Radio and display receiver assembly*1
    12 Headlight swivel ECU assembly (AFS ECU)*2
    13 Combination meter assembly
    14 Position control ECU assembly*3
    15 Multiplex tilt and telescopic ECU*4
    16 Power management control ECU
    17 Transmission control ECU assembly (TCM)*5

    • *1: for Radio and Display Type

    • *2: w/ Adaptive Front-lighting System

    • *3: w/ Seat Position Memory System

    • *4: for Power Tilt and Power Telescopic Steering Column

    • *5: for Automatic Transaxle

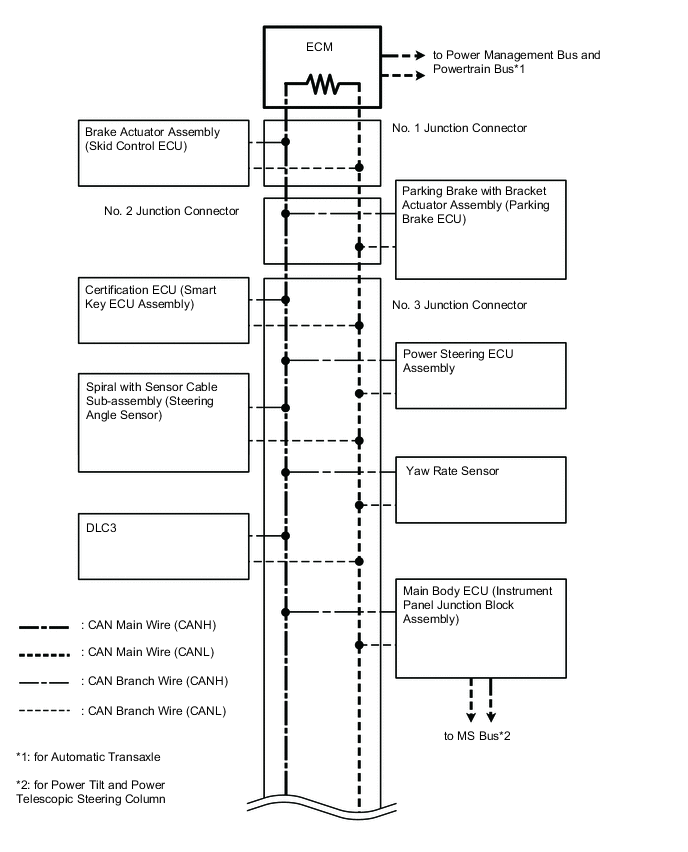

  2. V1 Bus (w/ Entry and Start System)

    A004P3WE01

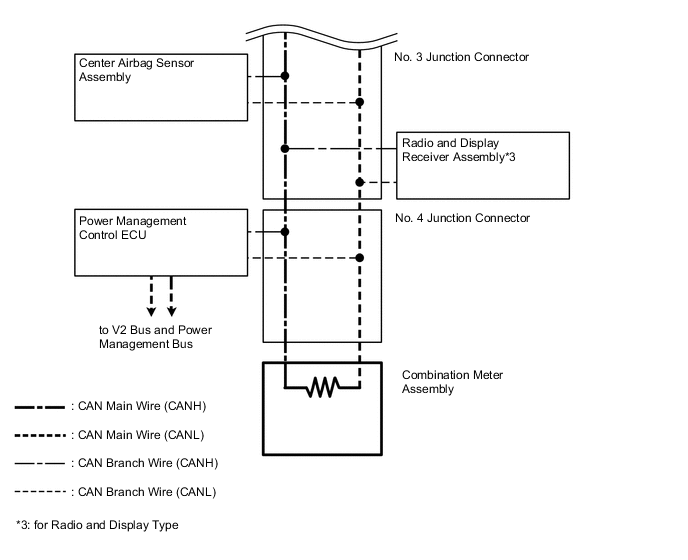

    A004SBGE02

  3. V1 Bus (w/o Entry and Start System)

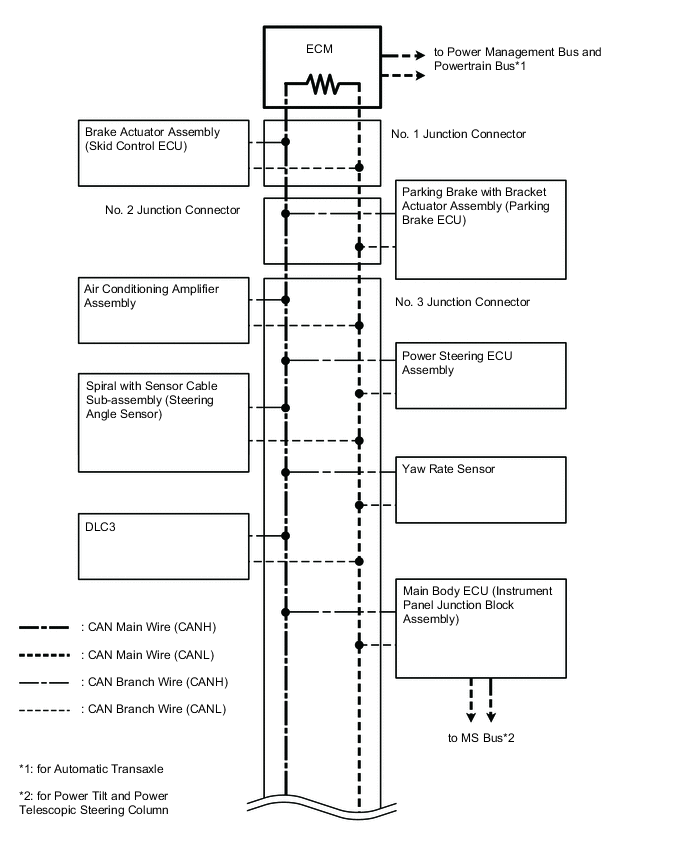

    A004P3WE02

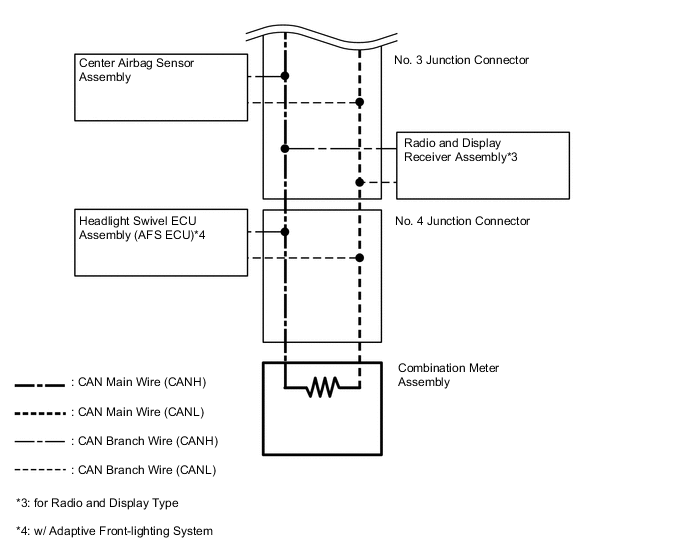

    A004QCKE02

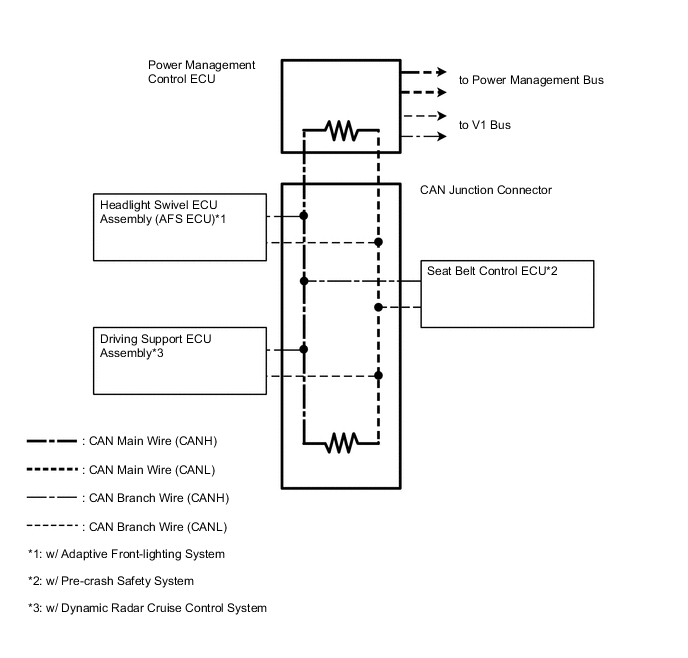

  4. V2 Bus (w/ Entry and Start System)

    A004N40E01

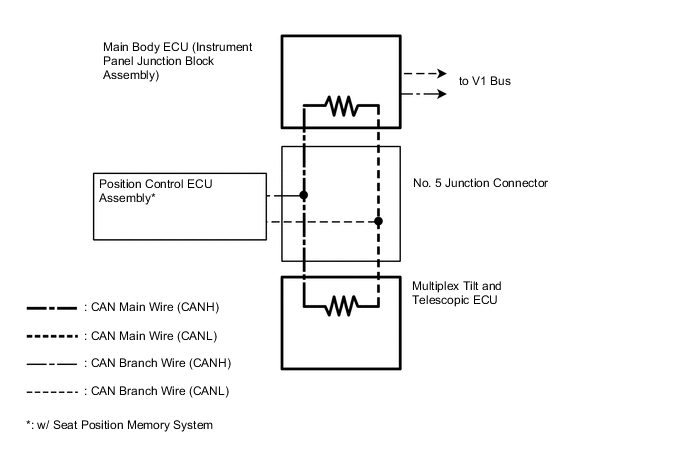

  5. MS Bus (for Power Tilt and Power Telescopic Steering Column)

    A004U0HE05

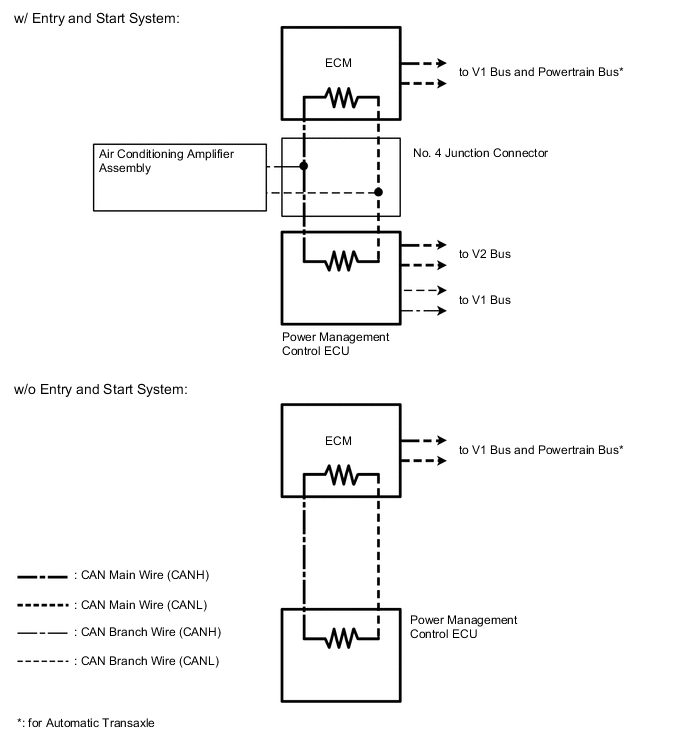

  6. Power Management Bus

    A004RCLE04

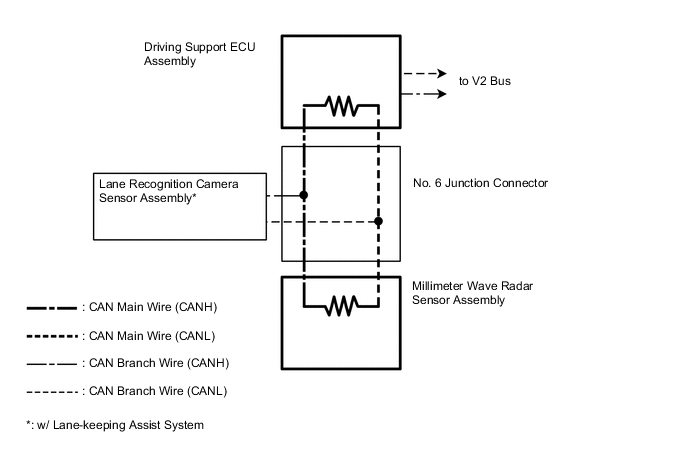

  7. Parking Assist Bus (w/ Dynamic Radar Cruise Control System)

    A004U0HE06

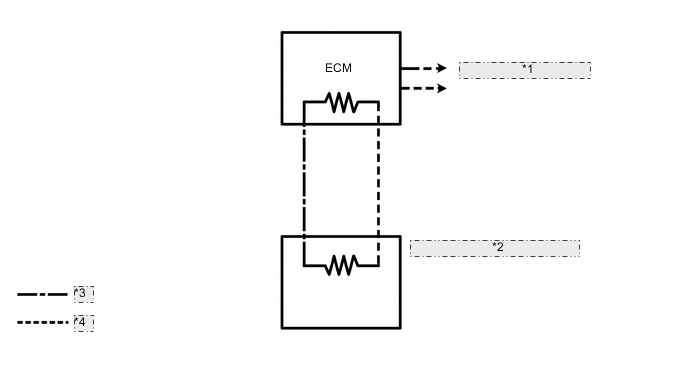

  8. Powertrain Bus (for Automatic Transaxle)

    A004SG9E03
    *1 to V1 Bus and Power Management Bus
    *2 Transmission Control ECU Assembly (TCM)
    *3 CAN Main Wire (CANH)
    *4 CAN Main Wire (CANL)
