LIN COMMUNICATION SYSTEM, Diagnostic DTC:B1249

DTC Code DTC Name
B1249 Double Locking ECU Communication Stop

DESCRIPTION

DTC B1249 is stored when communication between the double lock door control relay and main body ECU (instrument panel junction block assembly) stops for more than 10 seconds.

DTC Code DTC Detection Condition Trouble Area
B1249 No communication from the double door lock relay for more than 10 seconds.

  • Double lock door control relay

  • Main body ECU (instrument panel junction block assembly)

  • Harness or connector

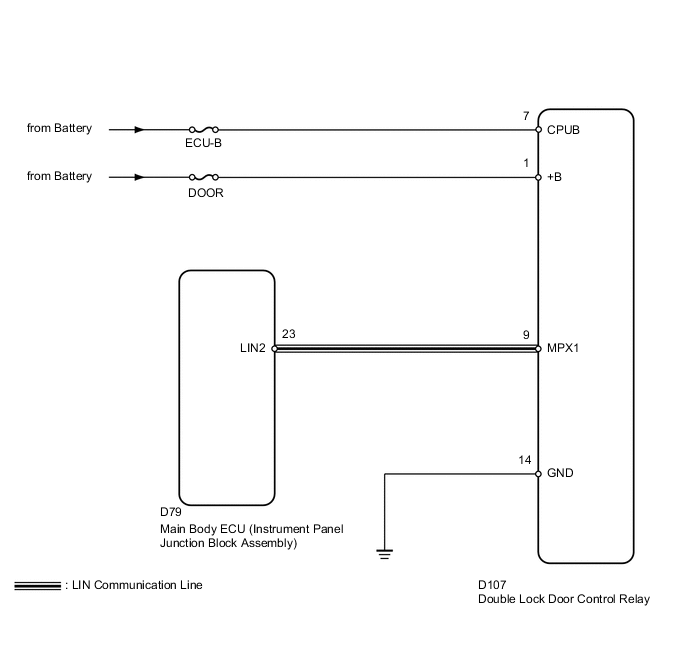

WIRING DIAGRAM

A004Q73E06

CAUTION / NOTICE / HINT

Note


  • When using the intelligent tester with the ignition switch off to troubleshoot:

    Connect the intelligent tester to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the intelligent tester and vehicle begins.

  • Inspect the fuses and bulbs for circuits related to this system before performing the following inspection procedure.

Tech Tips

When the communication between the double lock door control relay and main body ECU (instrument panel junction block assembly) stops, DTC B2325 is also stored.

PROCEDURE


  1. CLEAR DTC


    1. Clear the DTCs Click here.


    NEXT

  2. CHECK FOR DTC


    1. Recheck for DTCs Click here.

      Result:
      Result Proceed to
      DTC B1249 is output A
      DTC B1249 is not output B

    B

    USE SIMULATION METHOD TO CHECK Click here

    A

  3. CHECK HARNESS AND CONNECTOR (DOUBLE LOCK DOOR CONTROL RELAY - MAIN BODY ECU)

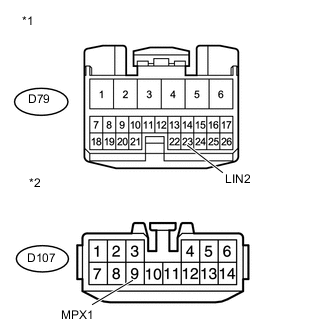

    A004R4CE02
    Text in Illustration
    *1

    Front view of wire harness connector

    (to Main Body ECU)
    *2

    Front view of wire harness connector

    (to Double Lock Door Control Relay)

    1. Disconnect the D79 ECU connector.

    2. Disconnect the D107 relay connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      D107-9 (MPX1) - D79-23 (LIN2) Always Below 1 Ω
      D107-9 (MPX1) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. CHECK HARNESS AND CONNECTOR (DOUBLE LOCK DOOR CONTROL RELAY - BATTERY AND BODY GROUND)

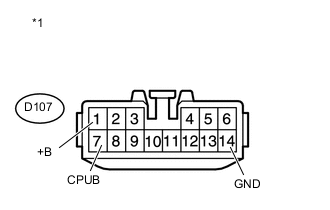

    A004TKIE02
    Text in Illustration
    *1

    Front view of wire harness connector

    (to Double Lock Door Control Relay)

    1. Disconnect the D107 relay connector.

    2. Measure the resistance and voltage according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      D107-14 (GND) - Body ground Always Below 1 Ω
      Standard Voltage
      Tester Connection Condition Specified Condition
      D107-1 (+B) - Body ground Always 11 to 14 V
      D107-7 (CPUB) - Body ground Always 11 to 14 V

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  5. REPLACE DOUBLE LOCK DOOR CONTROL RELAY


    1. Temporarily replace the double lock door control relay with a new or normally functioning one Click here.

    2. Clear the DTCs Click here.


    NEXT

  6. CHECK FOR DTC


    1. Recheck for DTCs Click here.

      Result
      Result Proceed to
      DTC B1249 is not output A
      DTC B1249 is output B

    A

    END (DOUBLE LOCK DOOR CONTROL RELAY IS DEFECTIVE)

    B

    REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
