FRONT BUMPER DISASSEMBLY

PROCEDURE


  1. REMOVE HEADLIGHT CLEANER WASHER NOZZLE COVER LH (w/ Headlight Cleaner System)

    Click here

  2. REMOVE HEADLIGHT CLEANER WASHER NOZZLE COVER RH (w/ Headlight Cleaner System)

    Tech Tips

    Use the same procedure described for the LH side.

  3. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Click here

  4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tech Tips

    Use the same procedure described for the LH side.

  5. REMOVE HEADLIGHT CLEANER HOSE ASSEMBLY (w/ Headlight Cleaner System)

    Click here

  6. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    Click here

  7. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  8. REMOVE FOG LIGHT COVER LH (w/ Fog Light)

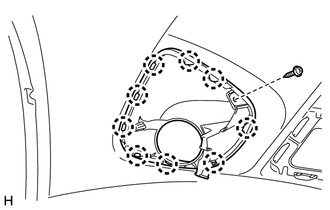

    1. A004NUQ

      Remove the screw.

    2. Detach the 9 claws and remove the fog light cover LH.

  9. REMOVE FOG LIGHT COVER RH (w/ Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  10. REMOVE FRONT BUMPER HOLE COVER LH (w/o Fog Light)

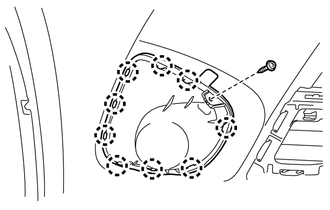

    1. A004RKZ

      Remove the screw.

    2. Detach the 9 claws and remove the front bumper hole cover LH.

  11. REMOVE FRONT BUMPER HOLE COVER RH (w/o Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  12. REMOVE LOWER SIDE RADIATOR GRILLE LH

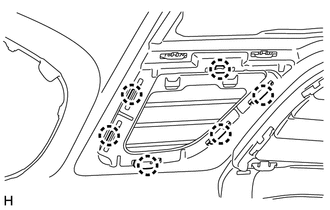

    1. A004MV0

      Detach the 6 claws and remove the lower side radiator grille LH.

  13. REMOVE LOWER SIDE RADIATOR GRILLE RH

    Tech Tips

    Use the same procedure described for the LH side.

  14. REMOVE UPPER RADIATOR GRILLE

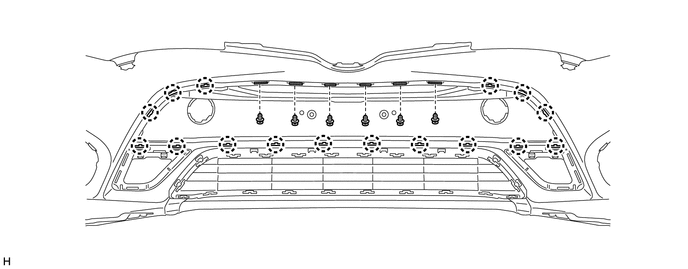

    1. Remove the 6 clips.

      A004NK1

    2. Detach the 16 claws and remove the upper radiator grille.

  15. REMOVE FRONT BUMPER HOLE COVER

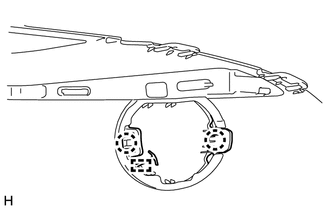

    1. A004P0B

      Detach the 2 claws.

    2. Disconnect the fall prevention hook and remove the front bumper hole cover.

  16. REMOVE NO. 1 RADIATOR GRILLE MOULDING


    1. Remove the 2 screws.

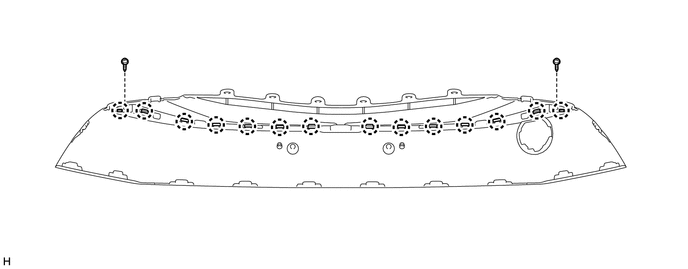

      A004NDK

    2. Detach the 14 claws and remove the No. 1 radiator grille moulding.

  17. REMOVE LOWER RADIATOR GRILLE MOULDING LH

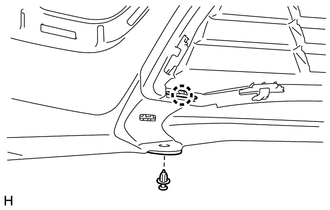

    1. A004RA2

      Remove the clip.

    2. Detach the claw and remove the lower radiator grille moulding LH.

  18. REMOVE LOWER RADIATOR GRILLE MOULDING RH

    Tech Tips

    Use the same procedure described for the LH side.

  19. REMOVE LOWER NO. 1 RADIATOR GRILLE


    1. Detach the 20 claws and remove the lower No. 1 radiator grille.

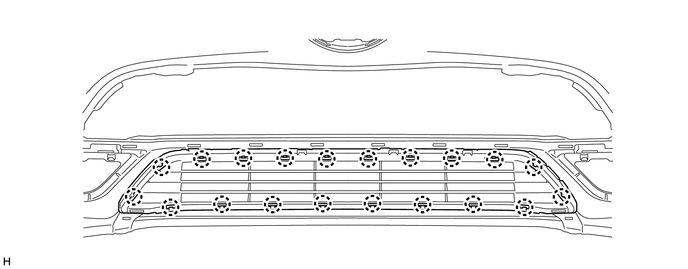

      A004NWC

  20. REMOVE FRONT SPOILER COVER LH

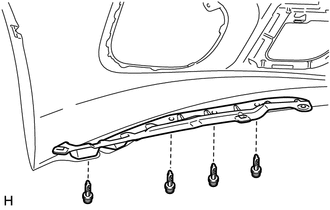

    1. A004P79

      Remove the 4 clips and front spoiler cover LH.

  21. REMOVE FRONT SPOILER COVER RH

    Tech Tips

    Use the same procedure described for the LH side.
