FRONT DRIVE SHAFT ASSEMBLY DISASSEMBLY

CAUTION / NOTICE / HINT

Note


  • When using a vise, place aluminum plates between the part and vise.

  • When using a vise, do not overtighten it.

PROCEDURE


  1. DISCONNECT FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP LH


    1. A004R67E01
      Text in Illustration
      *a Claw Engagement

      Using needle-nose pliers, detach the claw engagement and disconnect the front No. 2 axle inboard joint boot clamp LH as shown in the illustration.

  2. DISCONNECT FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP RH

    Tech Tips

    Use the same procedure described for the LH side.

  3. DISCONNECT FRONT AXLE INBOARD JOINT BOOT CLAMP LH


    1. A004SG2

      Using pliers, grasp the front axle inboard joint boot clamp LH and move the front axle inboard joint boot clamp LH as shown in the illustration to disconnect the front axle inboard joint boot clamp LH from the front axle inboard joint boot.

  4. DISCONNECT FRONT AXLE INBOARD JOINT BOOT CLAMP RH

    Tech Tips

    Use the same procedure described for the LH side.

  5. DISCONNECT FRONT AXLE INBOARD JOINT BOOT

    Tech Tips

    Use the same procedure for the RH and LH sides.


    1. Disconnect the front axle inboard joint boot from the front drive inboard joint LH.

  6. REMOVE FRONT DRIVE INBOARD JOINT LH


    1. Remove any old grease from the front drive inboard joint LH.

    2. A004MVEE16
      Text in Illustration
      *a Matchmark

      Put matchmarks on the front drive inboard joint LH and front drive outboard joint shaft assembly LH.

      Note

      Do not use a punch to make the matchmarks.

    3. Remove the front drive inboard joint LH from the front drive outboard joint shaft assembly LH.

    4. A004SIF

      Using a snap ring expander, remove the shaft snap ring.

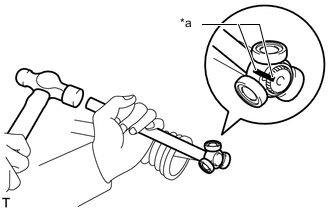

    5. A004RCPE03
      Text in Illustration
      *a Matchmark

      Put matchmarks on the front drive outboard joint shaft assembly LH and tripod joint.

      Note

      Do not use a punch to make the matchmarks.

    6. Using a brass bar and hammer, remove the tripod joint from the front drive outboard joint shaft assembly LH.

      Note


      • Do not tap the rollers.

      • Do not drop the tripod joint.

    7. Remove the front No. 2 axle inboard joint boot clamp LH, front axle inboard joint boot and front axle inboard joint boot clamp LH.

  7. REMOVE FRONT DRIVE INBOARD JOINT RH

    Tech Tips

    Use the same procedure described for the LH side.

  8. DISCONNECT FRONT DRIVE SHAFT DAMPER CLAMP LH

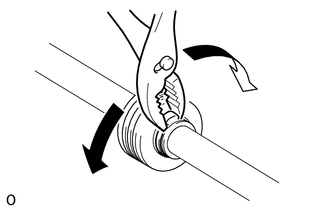

    1. A004Q7K

      Using pliers, grasp the front drive shaft damper clamp LH and move the front drive shaft damper clamp LH as shown in the illustration to disconnect the front drive shaft damper clamp LH from the front drive outboard joint shaft assembly LH.

  9. DISCONNECT DRIVE SHAFT DAMPER SETTING CLAMP

    Tech Tips

    Use the same procedure described for the front drive shaft damper clamp LH.

  10. REMOVE FRONT DRIVE SHAFT DAMPER LH


    1. Remove the front drive shaft damper LH from the front drive outboard joint shaft assembly LH.

  11. REMOVE FRONT DRIVE SHAFT DAMPER RH

    Tech Tips

    Use the same procedure described for the LH side.

  12. DISCONNECT FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP LH


    1. A004OS0

      Using pliers, grasp the front No. 2 axle outboard joint boot clamp LH and move the front No. 2 axle outboard joint boot clamp LH as shown in the illustration to disconnect the front No. 2 axle outboard joint boot clamp LH from the front axle outboard joint boot.

  13. DISCONNECT FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP RH

    Tech Tips

    Use the same procedure described for the LH side.

  14. DISCONNECT FRONT AXLE OUTBOARD JOINT BOOT CLAMP LH


    1. A004U6J

      Using pliers, grasp the front axle outboard joint boot clamp LH and move the front axle outboard joint boot clamp LH as shown in the illustration to disconnect the front axle outboard joint boot clamp LH from the front axle outboard joint boot.

  15. DISCONNECT FRONT AXLE OUTBOARD JOINT BOOT CLAMP RH

    Tech Tips

    Use the same procedure described for the LH side.

  16. REMOVE FRONT AXLE OUTBOARD JOINT BOOT

    Tech Tips

    Use the same procedure for the RH and LH sides.


    1. Remove the front axle outboard joint boot clamp, front axle outboard joint boot and front No. 2 axle outboard joint boot clamp from the front drive outboard joint shaft assembly.

    2. Remove any old grease from the front drive outboard joint shaft assembly.

  17. REMOVE FRONT DRIVE SHAFT DUST COVER LH


    1. A004QGOE04

      Using SST and a press, remove the front drive shaft dust cover LH from the front drive inboard joint LH.

      SST
      09950-00020

      Note

      Do not drop the front drive inboard joint LH.

  18. REMOVE FRONT DRIVE SHAFT DUST COVER RH

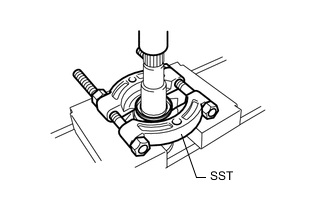

    1. Using SST and a press, remove the front drive shaft dust cover RH from the front drive inboard joint assembly RH.

      SST
      09950-00020

      Note

      Do not drop the front drive inboard joint assembly RH.

      A004S82E01
