SHIFT LEVER REASSEMBLY

PROCEDURE

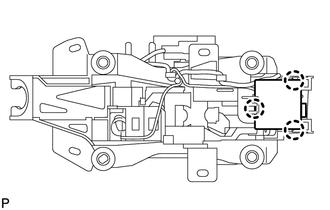

  1. INSTALL SHIFT LOCK CONTROL ECU

    A004OTV

    1. Attach the 3 claws to install the shift lock control ECU to the shift lock control unit.

    2. Connect the shift lock solenoid connector to the shift lock control ECU.

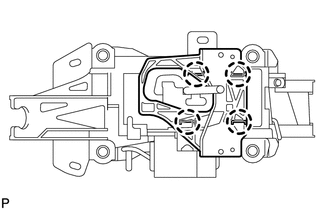

  2. INSTALL LOWER POSITION INDICATOR HOUSING

    A004PID

    1. Attach the 4 claws to install the lower position indicator housing to the shift lock control unit.

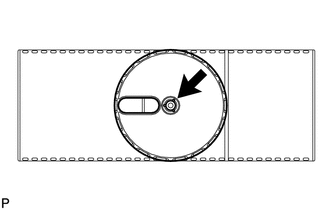

  3. INSTALL NO. 2 POSITION INDICATOR SLIDE COVER

    A004PQR

    1. Install the No. 2 position indicator slide cover to the position indicator slide cover.

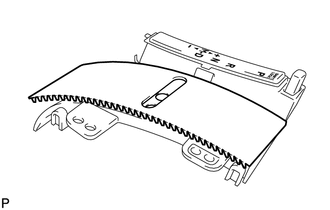

  4. INSTALL POSITION INDICATOR SLIDE COVER

    A004MN2

    1. Install the position indicator slide cover together with the No. 2 position indicator slide cover to the position indicator housing.

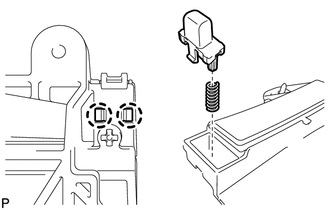

  5. INSTALL SHIFT LOCK RELEASE BUTTON

    A004SGL

    1. Install the shift lock release button compression spring, and then attach the 2 claws to install the shift lock release button to the position indicator housing.

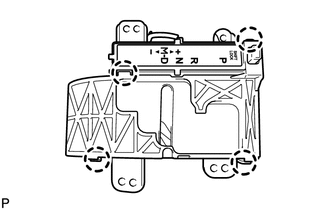

  6. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY

    A004MNZ

    1. Attach the 4 claws to install the floor shift position indicator housing to the position indicator housing.

  7. INSTALL POSITION INDICATOR LIGHT BULB


    1. Install the cap to the bulb.

    2. Install the bulb to the position indicator light wire socket.

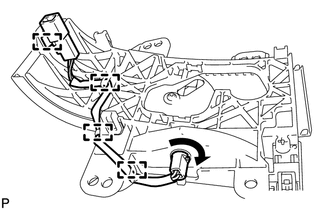

  8. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

    A004T5C

    1. Align the wire with the key part of the position indicator housing, and install the wire. Then rotate the wire clockwise until it locks.

    2. Attach the 4 clamps to connect the indicator light wire and connector to the position indicator housing.

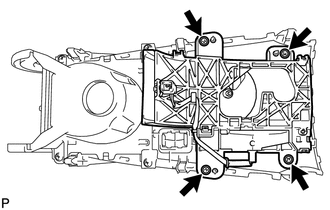

  9. INSTALL POSITION INDICATOR HOUSING ASSEMBLY

    A004MKQ

    1. Install the position indicator housing to the rear upper console panel with the 4 screws.
