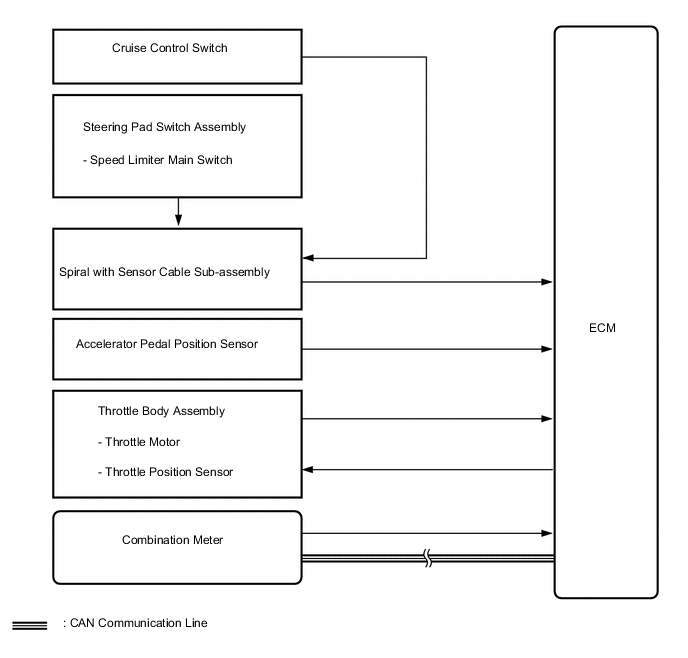

SPEED LIMITER SYSTEM SYSTEM DIAGRAM

A004QTQE02
Communication Table
Sender Receiver Signal Line
ECM Combination Meter

  • Speed limiter indicator light signal

  • Multi-information display signal

 CAN
