REAR BUMPER(for Wagon) REMOVAL

PROCEDURE


  1. REMOVE REAR COMBINATION LIGHT ASSEMBLY LH

    Click here

  2. REMOVE REAR COMBINATION LIGHT ASSEMBLY RH

    Click here

  3. REMOVE REAR BUMPER COVER


    1. A0052XA

      Remove the clip.

      Tech Tips

      Use the same procedure for the other side.

    2. A0056OC

      Remove the 8 clips.

    3. A0052VC

      Remove the screw.

      Tech Tips

      Use the same procedure for the other side.

    4. Detach the claw and remove the rear bumper upper stopper.

      Tech Tips

      Use the same procedure for the other side.

    5. A0054QQE01
      Text in Illustration
      *a Protective Tape

      Put protective tape around the rear bumper cover.

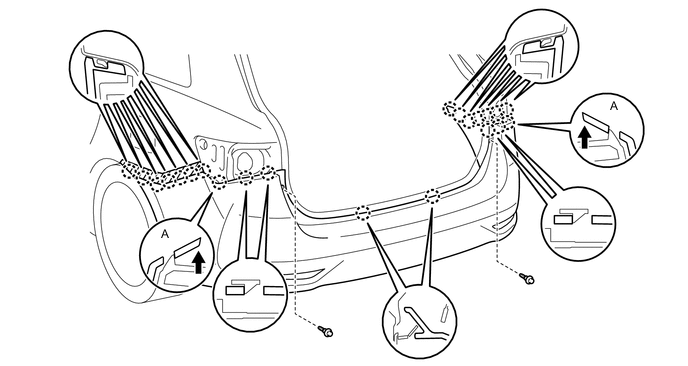

    6. Remove the 2 screws.

      A0055V9E03

    7. Detach the 22 claws and remove the rear bumper cover.

      Tech Tips

      Pull up the claws labeled A in the illustration.

    8. Remove the protective tape.

  4. REMOVE REAR BUMPER NO. 1 REINFORCEMENT


    1. A0057FZ

      Remove the 8 bolts and rear bumper No. 1 reinforcement.

  5. REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH


    1. A0055FO

      Remove the 3 bolts and rear bumper arm sub-assembly LH.

  6. REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  7. REMOVE REAR BUMPER SIDE RETAINER LH


    1. A00592FE01
      Text in Illustration
      *1 Rear Bumper Bracket

      Remove the rear bumper bracket.

    2. Remove the 2 screws.

    3. Detach the 3 claws and remove the rear bumper side retainer LH.

  8. REMOVE REAR BUMPER SIDE RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.

  9. REMOVE REAR BUMPER NO. 2 SIDE RETAINER LH


    1. A0057PP

      Remove the 2 screws.

    2. Detach the 3 claws and remove the rear bumper No. 2 side retainer LH.

  10. REMOVE REAR BUMPER NO. 2 SIDE RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.

  11. REMOVE REAR BUMPER UPPER RETAINER LH


    1. A0058PN

      Remove the screw.

    2. Detach the 2 claws and remove the rear bumper upper retainer LH.

  12. REMOVE REAR BUMPER UPPER RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.
