REAR BUMPER(for Wagon) REMOVAL

PROCEDURE

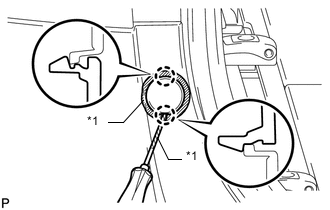

  1. REMOVE REAR BUMPER PLATE LH

    A0052RBE02
    Text in Illustration
    *1 Protective Tape

    1. Put protective tape around the rear bumper plate.

    2. Using a screwdriver, detach the 2 claws and remove the rear bumper plate.

      Tech Tips

      Tape the screwdriver tip before use.

  2. REMOVE REAR BUMPER PLATE RH

    Tech Tips

    Use the same procedure described for the LH side.

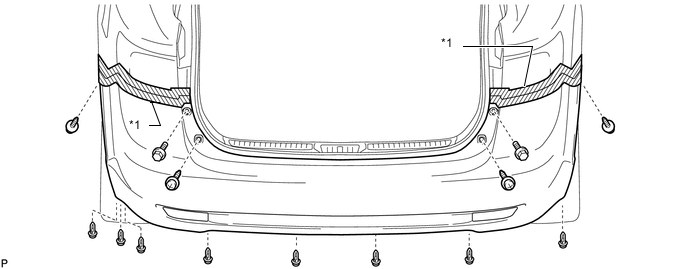

  3. REMOVE REAR BUMPER COVER


    1. Put protective tape around the rear bumper cover.

    2. Remove the 4 screws, 2 bolts and 8 clips.

      A00579FE02
      Text in Illustration
      *1 Protective Tape - -

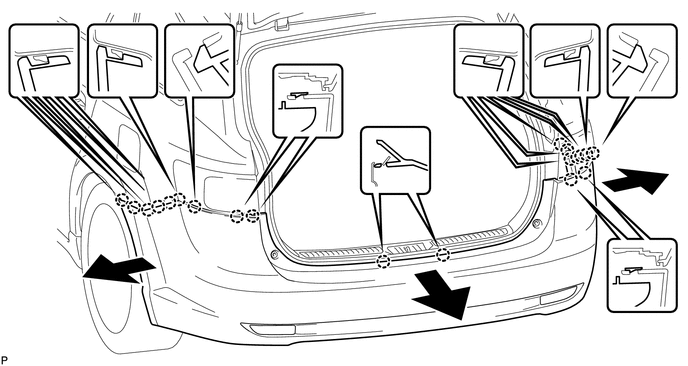

    3. w/o TOYOTA Parking Assist-sensor System:

      Detach the 20 claws and remove the rear bumper cover.

    4. w/ TOYOTA Parking Assist-sensor System:

      Detach the 20 claws, disconnect the No. 2 frame wire connector and remove the rear bumper cover.

      A0058JK

  4. REMOVE REAR NO. 1 BUMPER REINFORCEMENT

    A0053CS

    1. Remove the 8 bolts and No. 1 bumper reinforcement.

  5. REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH

    A0055FO

    1. Remove the 3 bolts and rear bumper arm.

  6. REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

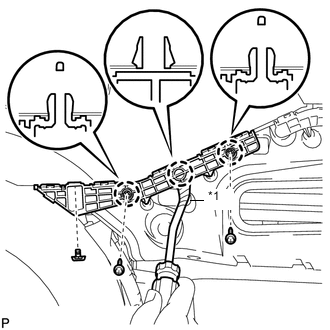

  7. REMOVE REAR BUMPER SIDE RETAINER LH

    A005758E02
    Text in Illustration
    *1 Protective Tape

    1. Remove the 2 screws and bracket.

    2. Using a clip remover, detach the 3 claws and remove the rear bumper side retainer.

      Tech Tips

      Tape the clip remover tip before use.

  8. REMOVE REAR BUMPER SIDE RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.

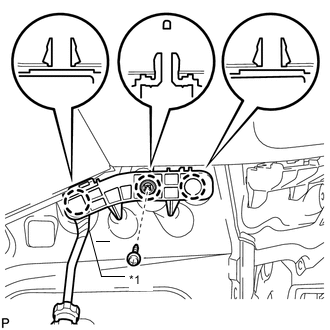

  9. REMOVE REAR NO. 2 BUMPER SIDE RETAINER LH

    A0056BLE02
    Text in Illustration
    *1 Protective Tape

    1. Remove the screw.

    2. Using a clip remover, detach the 3 claws and remove the rear No. 2 bumper side retainer.

      Tech Tips

      Tape the clip remover tip before use.

  10. REMOVE REAR NO. 2 BUMPER SIDE RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.

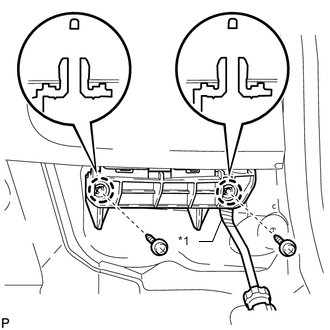

  11. REMOVE REAR UPPER BUMPER RETAINER LH

    A0053KQE02
    Text in Illustration
    *1 Protective Tape

    1. Remove the 2 screws.

    2. Using a clip remover, detach the 2 claws and remove the rear upper bumper retainer.

      Tech Tips

      Tape the clip remover tip before use.

  12. REMOVE REAR UPPER BUMPER RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.
