WASHER NOZZLE(for Front) ADJUSTMENT

PROCEDURE

1. ADJUST WASHER NOZZLE SUB-ASSEMBLY

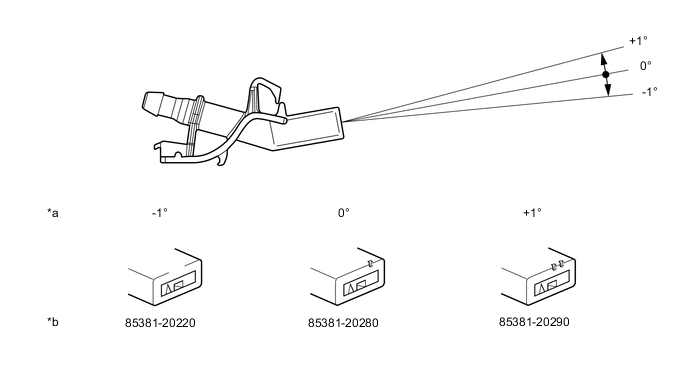

   1. Select a washer nozzle sub-assembly so that the washer fluid spray area is as specified in On-vehicle Inspection.



      Text in Illustration

      *a

      Washer Fluid Spray Angle

      *b

      Part Number
