WASHER MOTOR(for Front Side) INSTALLATION

PROCEDURE


  1. INSTALL WINDSHIELD WASHER JAR ASSEMBLY


    1. for Sedan:


      1. Attach the guide to temporarily set the windshield washer jar assembly on the vehicle.

        A00573FE03
        Text in Illustration
        *a Guide - -

      2. Temporarily install the windshield washer jar assembly with the 4 bolts.

      3. Tighten the 4 bolts in the order indicated in the illustration.

        Torque:
        5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

      4. Attach the 4 clamps.

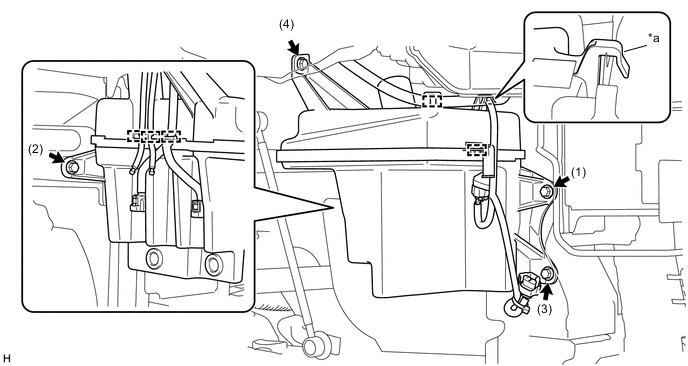

    2. for Wagon:


      1. Attach the guide to temporarily set the windshield washer jar assembly on the vehicle.

        A00576GE04
        Text in Illustration
        *a Guide - -

      2. Temporarily install the windshield washer jar assembly with the 4 bolts.

      3. Tighten the 4 bolts in the order indicated in the illustration.

        Torque:
        5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

      4. Attach the 5 clamps.

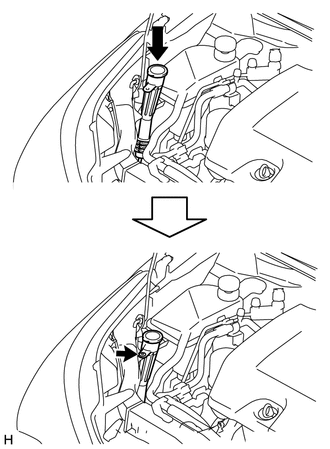

  2. INSTALL WASHER INLET SUB-ASSEMBLY


    1. A0057OR

      Install the washer inlet sub-assembly to the windshield washer jar assembly.

    2. Install the washer inlet sub-assembly to vehicle with the clip.

  3. INSTALL HEADLIGHT CLEANER CONTROL RELAY (w/ Headlight Cleaner System)

    Click here

  4. INSTALL HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY (w/ Headlight Cleaner System)

    Click here

  5. INSTALL REAR WASHER MOTOR AND PUMP ASSEMBLY (for Wagon)

    Click here

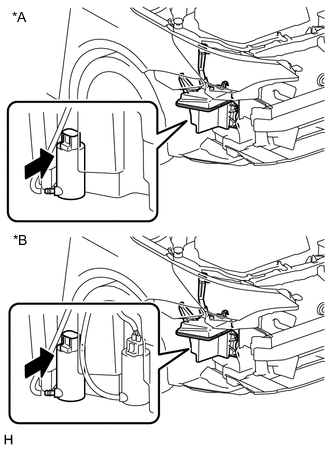

  6. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY


    1. A00534ZE02
      Text in Illustration
      *A for Sedan
      *B for Wagon

      Install the windshield washer motor and pump assembly.

    2. A00563AE01
      Text in Illustration
      *A for Sedan
      *B for Wagon

      Connect the connector and washer hose.

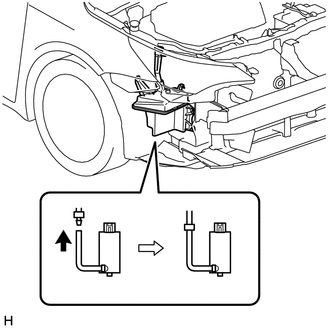

  7. FILL WASHER JAR WITH WASHER FLUID


    1. A0054T4

      Connect the washer hose as shown in the illustration, and fill the washer jar with washer fluid.

  8. INSTALL FRONT BUMPER COVER

    Click here

  9. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light)

    Click here

  10. INSPECT FOG LIGHT AIMING (w/ Fog Light)

    Click here

  11. ADJUST FOG LIGHT AIMING (w/ Fog Light)

    Click here
