REAR SEAT OUTER BELT ASSEMBLY(for Sedan) REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE REAR BENCH TYPE SEAT CUSHION ASSEMBLY

   Click here

2. REMOVE REAR SIDE SEATBACK ASSEMBLY LH

   Click here

3. REMOVE REAR SIDE SEATBACK ASSEMBLY RH

   Click here

4. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

   Click here

5. REMOVE INNER ROOF SIDE GARNISH LH

   Click here

6. REMOVE INNER ROOF SIDE GARNISH RH

   Click here

7. REMOVE REAR SEAT SHOULDER BELT HOLE COVER






   1. Using a moulding remover, detach the 4 claws and remove the belt hole cover.

      Tech Tips

      Use the same procedure to remove all the belt hole covers.

8. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY






   1. Disconnect the connector.

   2. Remove the 4 clips.

   3. Detach the 2 clips and raise the front portion of the package tray trim panel assembly.

   4. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

   5. Detach the 5 claws and remove the package tray trim panel assembly.

9. REMOVE NO. 1 ROOM PARTITION BOARD






   1. Remove the 4 clips.

   2. Using a moulding remover, detach the 4 clips and remove the partition board.

10. REMOVE NO. 1 PACKAGE TRAY TRIM PAD

    Tech Tips

    Perform the following procedure if replacing the No. 1 package tray trim pad.




    1. Remove the package tray trim pad.

11. REMOVE NO. 2 PACKAGE TRAY TRIM PAD

    Tech Tips

    Perform the following procedure if replacing the No. 2 package tray trim pad.




    1. Remove the package tray trim pad.

12. REMOVE NO. 3 PACKAGE TRAY TRIM PAD

    Tech Tips

    Perform the following procedure if replacing the No. 3 package tray trim pad.




    1. Remove the package tray trim pad.

13. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH






    1. Remove the nut and seat belt.

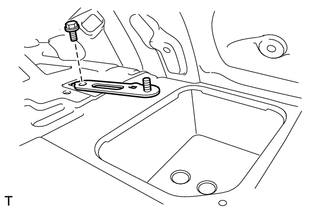

14. REMOVE OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY LH






    1. Remove the bolt and anchor bracket.
