METER / GAUGE SYSTEM SYSTEM DIAGRAM

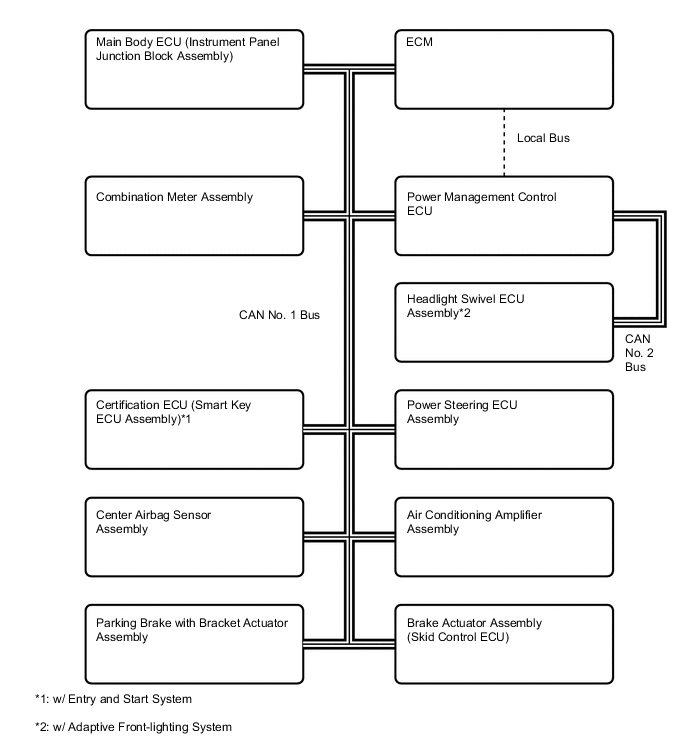

  1. CAN SIGNAL

    A0059DDE01

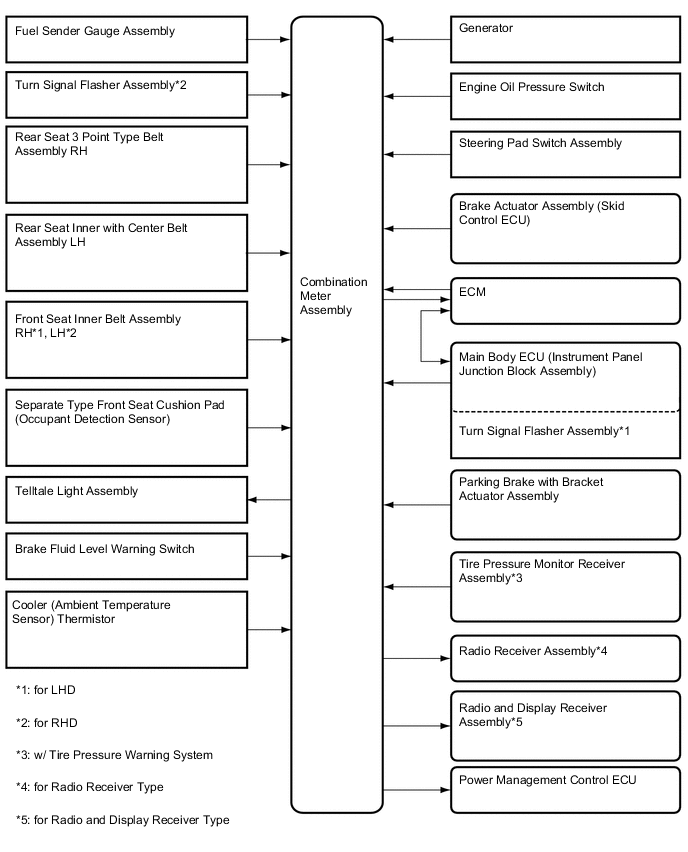

  2. DIRECT LINE SIGNAL

    A0052NOE01

  3. INPUT AND OUTPUT SIGNALS OF THE COMBINATION METER ASSEMBLY


    1. Meter or Gauge

      Meter or Gauge Communication Signal Sender Communication Line Receiver
      Speedometer Vehicle speed Brake Actuator Assembly (Skid Control ECU) CAN Combination Meter Assembly
      Tachometer Engine speed ECM CAN Combination Meter Assembly
      Fuel receiver gauge Fuel level Fuel Sender Gauge Assembly Direct Line Combination Meter Assembly
      Engine coolant temperature receiver gauge Engine coolant temperature ECM CAN Combination Meter Assembly
      ODO/TRIP meter ODO/TRIP switch Combination Meter Assembly - Combination Meter Assembly
      Meter illumination Illumination level Light Control Rheostat Knob (Combination Meter Assembly) - Combination Meter Assembly

    2. Warning or Indicator

      Warning or Indicator Communication Signal Sender Communication Line Receiver
      BEAM indicator light BEAM indicator light Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      FRONT FOG indicator light*1 FRONT FOG indicator light Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      REAR FOG indicator light*2 REAR FOG indicator light Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      SRS warning light SRS warning light Center Airbag Sensor Assembly CAN Combination Meter Assembly
      Front seat belt warning light Driver side seat belt buckle switch Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      Passenger side seat belt buckle switch Front Seat Inner Belt Assembly RH*8, LH*9 Direct Line Combination Meter Assembly
      Separate Type Front Seat Cushion Pad (Occupant Detection Sensor)
      Brake system warning light (Yellow indicator) Brake system warning light (Yellow indicator) Parking Brake with Bracket Actuator Assembly Direct Line Combination Meter Assembly
      Brake system warning light (Red indicator) Brake system warning light (Red indicator) Brake Fluid Level Warning Switch Direct Line Combination Meter Assembly
      Brake Actuator Assembly (Skid Control ECU) CAN
      CHARGE warning light CHARGE warning light Generator Direct Line Combination Meter Assembly
      ECM CAN
      ABS warning light ABS warning light Brake Actuator Assembly (Skid Control ECU) CAN Combination Meter Assembly
      MIL MIL ECM Direct Line Combination Meter Assembly
      AFS OFF indicator light*3 AFS OFF indicator light Headlight Swivel ECU Assembly CAN Combination Meter Assembly
      FUEL warning light FUEL warning light Fuel Sender Gauge Assembly Direct Line Combination Meter Assembly
      SLIP indicator light SLIP indicator light Brake Actuator Assembly (Skid Control ECU) CAN Combination Meter Assembly
      TAIL indicator light TAIL indicator light Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      Turn signal indicator light Turn signal indicator light Turn Signal Flasher Assembly Direct Line Combination Meter Assembly
      EPS warning light EPS warning light Power Steering ECU Assembly CAN Combination Meter Assembly
      Master warning light Each system warning Each System ECU CAN Combination Meter Assembly
      PARK warning light Brake fluid level Parking Brake with Bracket Actuator Assembly Direct Line Combination Meter Assembly
      SIL indicator (UP/DOWN)*4 SIL indicator ECM CAN Combination Meter Assembly
      Eco driving indicator light*5, *6 Eco driving light indicator ECM CAN Combination Meter Assembly
      Cruise indicator*7 Cruise indicator ECM CAN Combination Meter Assembly
      Speed limiter indicator*7 Speed limiter indicator ECM CAN Combination Meter Assembly
      Cruise set indicator*7 Cruise set indicator ECM CAN Combination Meter Assembly
      VSC OFF indicator light VSC OFF indicator light Brake Actuator Assembly (Skid Control ECU) CAN Combination Meter Assembly
      Tire pressure warning light*10 Tire pressure warning light Tire Pressure Monitor Receiver Assembly Direct Line Combination Meter Assembly

      • *1: w/ Front Fog Light

      • *2: w/ Rear Fog Light

      • *3: w/ Adaptive Front-lighting System

      • *4: for Manual Transaxle

      • *5: for Automatic Transaxle and Unleaded Gasoline Specification Vehicle

      • *6: for CVT

      • *7: w/ Cruise Control System

      • *8: for LHD

      • *9: for RHD

      • *10: w/ Tire Pressure Warning System

    3. Multi-information Display

      Multi-information Display Communication Signal Sender Communication Line Receiver
      Outside temperature Outside temperature Cooler (Ambient Temperature Sensor) Thermistor Direct Line Combination Meter Assembly
      Average fuel consumption Engine speed ECM CAN Combination Meter Assembly
      Fuel injection
      Vehicle speed Brake Actuator Assembly (Skid Control ECU) CAN
      Vehicle speed Direct Line
      Average vehicle speed Vehicle speed Brake Actuator Assembly (Skid Control ECU) CAN Combination Meter Assembly
      Engine speed ECM
      Current fuel consumption Engine speed ECM CAN Combination Meter Assembly
      Fuel injection
      Vehicle speed Brake Actuator Assembly (Skid Control ECU) CAN
      Vehicle speed Direct Line
      Diagnostic trouble code Diagnostic trouble code ECM CAN Combination Meter Assembly
      Brake Actuator Assembly (Skid Control ECU)
      Open door warning Each door courtesy switch Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      Multi-information display change Display switch Steering Pad Switch Assembly Direct Line Combination Meter Assembly
      Shift position indicator Shift position ECM CAN Combination Meter Assembly
      Eco driving bar display* Eco driving bar level ECM CAN Combination Meter Assembly

      • *: for Automatic Transaxle and Unleaded Gasoline Specification Vehicle

    4. Buzzer

      Buzzer Communication Signal Sender Communication Line Receiver
      Key reminder buzzer*1 Driver side door courtesy switch Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      Ignition switch
      Entry and start key buzzer*2 Ignition switch Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      Immobiliser key identification completion notice buzzer Stop light switch*3 Certification ECU (Smart Key ECU Assembly) CAN Combination Meter Assembly
      Engine switch*2
      Clutch start switch*4 ECM
      Shift position P signal*3
      Multi-information display warning buzzer Each warning buzzer Each ECU Direct Line and CAN Combination Meter Assembly
      Seat belt warning buzzer Driver side seat belt buckle switch Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      Shift position R signal*3 ECM
      Vehicle speed Brake Actuator Assembly (Skid Control ECU)
      Front passenger side seat belt buckle switch Front Passenger Side Seat Belt Buckle Switch Direct Line
      Front passenger seat condition Front Passenger Seat
      Rear seat belt buckle switch Rear Seat Inner with Center Belt Assembly LH
      Rear Seat 3 Point Type Belt Assembly RH
      PKB-ON driving warning buzzer Parking brake switch Parking Brake with Bracket Actuator Assembly Direct Line Combination Meter Assembly
      Vehicle speed CAN
      Warning of driving with door open buzzer Vehicle speed Brake Actuator Assembly (Skid Control ECU) CAN Combination Meter Assembly
      Each door courtesy switch Main Body ECU (Instrument Panel Junction Block Assembly)
      Sports shift reject buzzer*3 Shift position ECM CAN Combination Meter Assembly
      Light reminder buzzer*1 Headlight dimmer switch Main Body ECU (Instrument Panel Junction Block Assembly) CAN Combination Meter Assembly
      Driver side door courtesy switch
      Ignition switch

      *1: w/o Entry and Start System

      *2: w/ Entry and Start System

      *3: for Automatic Transaxle

      *4: for Manual Transaxle

    5. Others

      Signal Communication Signal Sender Direct Line Receiver
      Vehicle speed signal Vehicle speed Brake Actuator Assembly (Skid Control ECU) Direct Line Combination Meter Assembly
      Vehicle speed Combination Meter Assembly Direct Line ECM
      Power Management Control ECU
      Radio Receiver Assembly*1
      Radio and Display Receiver Assembly*2
      Tire Pressure Monitor Receiver Assembly*3

      • *1: for Radio Receiver Type

      • *2: for Radio and Display Type

      • *3: w/ Tire Pressure Warning System
