CAN COMMUNICATION SYSTEM Certification ECU Communication Stop Mode

DESCRIPTION

Detection Item Symptoms Trouble Area
Certification ECU Communication Stop Mode

Either condition is met:


  • "Certification (Smart)" is not displayed on the "Bus Check" screen.

  • "Certification ECU Communication Stop Mode" in "DTC Combination Table" applies.

  • Power source or inside of certification ECU (smart key ECU assembly)

  • Certification ECU (smart key ECU assembly) CAN branch wire or connector

  • Certification ECU (smart key ECU assembly)

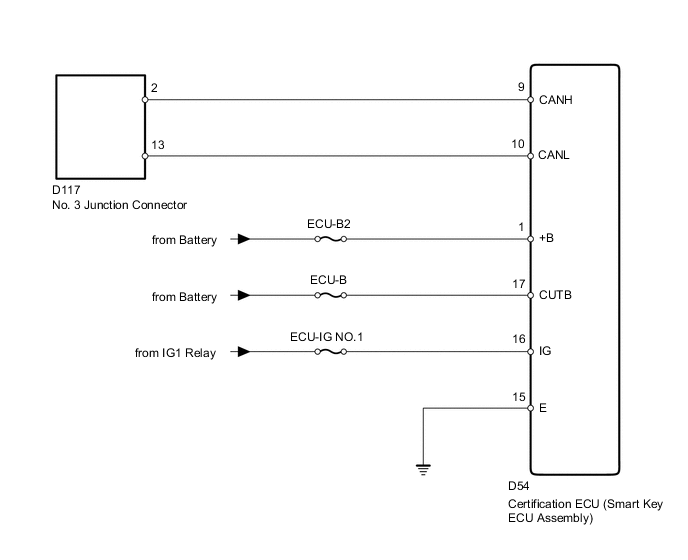

WIRING DIAGRAM

A0056T0E06

CAUTION / NOTICE / HINT

Note


  • Before replacing the certification ECU (smart key ECU assembly), refer to the entry and start system (for Entry Function) Click here.

  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

Tech Tips

Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

PROCEDURE


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.


    NEXT

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the CAN main wire and the CAN branch wire.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      Note

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.


    NEXT

  3. CHECK FOR OPEN IN CAN BUS WIRE (CERTIFICATION ECU CAN BRANCH WIRE)


    1. A00537VE02
      Text in Illustration
      *a

      Rear view of wire harness connector

      (to Certification ECU [Smart Key ECU Assembly])

      Disconnect the D54 certification ECU (smart key ECU assembly) connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      D54-9 (CANH) - D54-10 (CANL) Ignition switch off 54 to 69 Ω

    NG

    REPAIR OR REPLACE CERTIFICATION ECU CAN BRANCH WIRE OR CONNECTOR (CANH, CANL)

    OK

  4. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BATTERY AND BODY GROUND)


    1. A0055F9E02
      Text in Illustration
      *a

      Rear view of wire harness connector

      (to Certification ECU [Smart Key ECU Assembly])

      Connect the cable to the negative (-) battery terminal.

      Note

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      D54-1 (+B) - Body ground Always 11 to 14 V
      D54-17 (CUTB) - Body ground Always 11 to 14 V
      D54-16 (IG) - Body ground Ignition switch ON 11 to 14 V

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      D54-15 (E) - Body ground Always Below 1 Ω

    OK

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
