POWER MANAGEMENT CONTROL ECU INSTALLATION

PROCEDURE


  1. INSTALL POWER MANAGEMENT CONTROL ECU (for LHD)

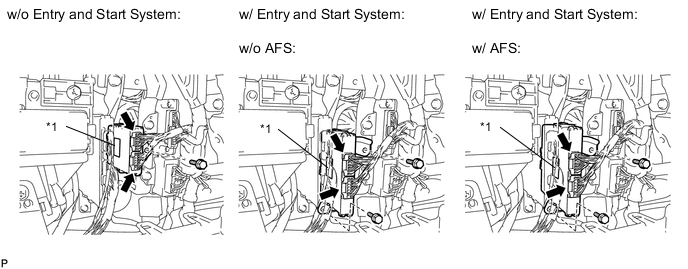

    A0057RME01
    Text in Illustration
    *1 Label

    1. w/o Entry and Start System:

      Install the power management control ECU with the bolt.

      Torque:
      8.0 N*m  { 82 kgf*cm, 71 in.*lbf }

    2. w/ Entry and Start System:

      Install the power management control ECU with the 2 bolts.

      Torque:
      8.0 N*m  { 82 kgf*cm, 71 in.*lbf }

      Tech Tips

      First install the upper bolt, and then install the lower bolt.

    3. Connect the 2 connectors.

  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (for LHD)

    Click here

  3. INSTALL POWER MANAGEMENT CONTROL ECU (for RHD)

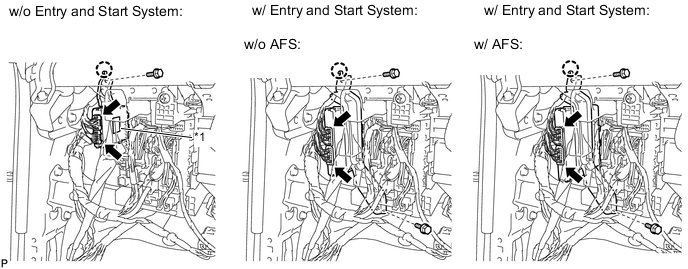

    A00531BE02
    Text in Illustration
    *1 Label

    1. w/o Entry and Start System:

      Align the power management control ECU positioning hole with the claw, and install the power management control ECU with the bolt.

      Torque:
      8.0 N*m  { 82 kgf*cm, 71 in.*lbf }

    2. w/ Entry and Start System:

      Align the power management control ECU positioning hole with the claw, and install the power management control ECU with the 2 bolts.

      Torque:
      8.0 N*m  { 82 kgf*cm, 71 in.*lbf }

      Tech Tips

      First install the lower bolt, and then install the upper bolt.

    3. Connect the 2 connectors.

  4. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY (for RHD)


    1. Install the upper instrument panel sub-assembly Click here.
