CHECK TIRE PRESSURE WARNING ECU AND RECEIVER
Disconnect the tire pressure warning ECU and receiver G58*1 or L1*2 connector and measure the voltage or resistance on the wire harness side.
*1: for Sedan
*2: for Wagon
| *A | for Sedan | *B | for Wagon |

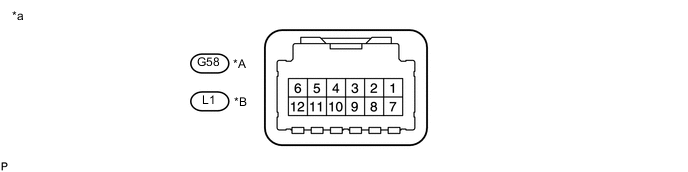

| *a | Front view of wire harness connector (to Tire Pressure Warning ECU and Receiver) |
- | - |
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G58-1 (IG) - G58-12 (GND) | L - W-B | IG power source | Ignition switch ON | 10 to 16 V |
| G58-12 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| L1-1 (IG) - L1-12 (GND) | L - W-B | IG power source | Ignition switch ON | 10 to 16 V |
| L1-12 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
Connect the tire pressure warning ECU and receiver G58*1 or L1*2 connector.
*1: for Sedan
*2: for Wagon
Measure the voltage according to the value(s) in the table below. If the result is not as specified, the ECU may have a malfunction.
Tech Tips
Inspect the connectors from the back side while the connectors are connected.
| *A | for Sedan | *B | for Wagon |

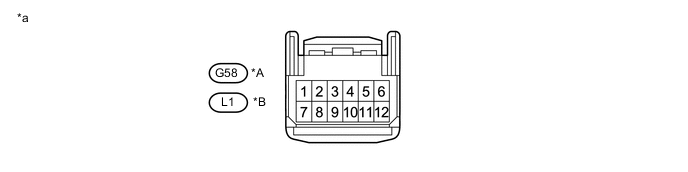

| *a | Component with harness connected (Tire Pressure Warning ECU and Receiver) |
- | - |
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G58-7 (CLSW) - G58-12 (GND) | B - W-B | Tire pressure warning reset switch |
|
Below 2.4 V |
|
8 to 15 V |
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| L1-7 (CLSW) - L1-12 (GND) | B - W-B | Tire pressure warning reset switch |
|
Below 2.4 V |
|
8 to 15 V |
