REAR SEAT ASSEMBLY(for Wagon) DISASSEMBLY

PROCEDURE


  1. REMOVE SEAT CUSHION COVER WITH PAD

    A0053TG

    1. Detach the claws and clamps.

    2. Remove the cushion cover with pad from the cushion frame as shown in the illustration.

  2. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

    A00586R

    1. Detach the clamps and remove the seat cushion cover from the seat cushion pad.

  3. REMOVE CHILD RESTRAINT SEAT GUIDE CUP


    1. A0058NN

      Detach the 8 clamps and remove the 4 guide cups from the seat cushion frame.

  4. REMOVE NO. 1 SEAT ARMREST CAP

    A0052HL

    1. Using a screwdriver, detach the 3 claws and remove the armrest cap.

      Tech Tips

      Tape the screwdriver tip before use.

  5. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

    A0057HSE02
    Text in Illustration
    *1 Pin

    1. Remove the bolt and washer.

    2. Separate the pin and center seat armrest assembly from the seatback to remove the armrest.

    3. A00577Z

      Remove the bush.

  6. REMOVE NO. 1 REAR CENTER SEAT ARMREST BOX (w/ Center Armrest Box)

    A0058SZ

    1. Detach the 3 claws and remove the armrest box.

  7. REMOVE CENTER ARMREST HINGE COVER RH (w/o Center Armrest Box)

    A0056M4

    1. Remove the hinge cover.

  8. REMOVE REAR CENTER SEAT ARMREST BOX (w/ Center Armrest Box)

    A0052LI

    1. Remove the armrest box.

  9. REMOVE REAR SEAT ARMREST HANDLE (w/ Center Armrest Box)

    A0058EN

    1. Detach the 4 claws and remove the armrest handle.

  10. REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY (w/ Center Armrest Box)

    A005581

    1. Remove the armrest door.

  11. REMOVE REAR SEATBACK COVER

    A005599

    1. Using a screwdriver, detach the 4 claws and remove the seatback cover.

      Tech Tips


      • Tape the screwdriver tip before use.

      • Use the same procedure to remove the cover on the other side.

  12. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY LH

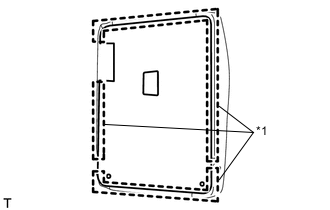

    A0052J3E01
    Text in Illustration
    *1 Clamp

    1. Detach the clamps and remove the carpet.

  13. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY RH

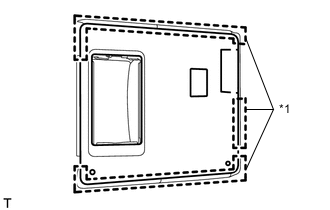

    A00542JE02
    Text in Illustration
    *1 Clamp

    1. Detach the clamps and remove the carpet.

  14. REMOVE REAR SEAT HEADREST ASSEMBLY

  15. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

  16. REMOVE REAR SEAT LOCK CONTROL LEVER LH

    A0054I8

    1. Using a screwdriver, detach the 4 claws and remove the control lever.

      Tech Tips

      Tape the screwdriver tip before use.

  17. REMOVE REAR SEAT LOCK CONTROL LEVER RH

    Tech Tips

    Use the same procedure described for the LH side.

  18. REMOVE SEAT BELT ANCHOR COVER CAP

    A0059I2

    1. Using a screwdriver, detach the 2 claws and remove the anchor cover cap.

      Tech Tips

      Tape the screwdriver tip before use.

  19. REMOVE REAR SEAT SHOULDER BELT HOLE COVER

    A00566Q

    1. Using a screwdriver, detach the 4 claws and remove the hole cover.

      Tech Tips

      Tape the screwdriver tip before use.

  20. REMOVE REAR SEATBACK LOCK COVER LH

    A0057F5

    1. Remove the 2 screws and lock cover.

  21. REMOVE REAR SEATBACK LOCK COVER RH

    Tech Tips

    Use the same procedure described for the LH side.

  22. REMOVE REAR SEAT HEADREST SUPPORT

    A00561U

    1. for LH Side:

      Detach the 4 claws and remove the 2 headrest supports.

    2. A0059C6

      for RH Side:

      Detach the 8 claws and remove the 4 headrest supports.

  23. REMOVE SEATBACK COVER WITH PAD


    1. Remove the 2 seatback covers with pads from the 2 seatback frames.

  24. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH

    A0056HR

    1. Detach the 9 clamps and remove the seatback cover.

  25. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH

    A005317

    1. Detach the 9 clamps and remove the seatback cover from the seatback pad.

  26. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY

    A0055DY

    1. Remove the nut and outer belt.

  27. REMOVE REAR SEATBACK LOCK SUB-ASSEMBLY LH

    A0057QZ

    1. Remove the 2 bolts and seatback lock.

  28. REMOVE REAR SEATBACK LOCK SUB-ASSEMBLY RH

    A0052ZO

    1. Remove the 2 bolts and seatback lock.

  29. REMOVE REAR SEAT SHOULDER BELT GUIDE LH

    A0056RW

    1. Remove the 2 screws and shoulder belt guide.

  30. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

    Tech Tips

    Use the same procedure described for the LH side.

  31. REMOVE REAR SIDE SEATBACK COVER SUB-ASSEMBLY LH

    A0056J7

    1. Detach the 3 clamps and 3 claws, and remove the seatback cover.

  32. REMOVE REAR SIDE SEATBACK COVER SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  33. REMOVE REAR SEATBACK SIDE PAD LH

    A0053OQ

    1. Remove the side pad.

  34. REMOVE REAR SEATBACK SIDE PAD RH

    Tech Tips

    Use the same procedure described for the LH side.
