OIL PUMP INSTALLATION

PROCEDURE


  1. INSTALL OIL PUMP ASSEMBLY


    1. A0052LD

      Install the oil pump with the 3 bolts.

      Torque:
      21 N*m  { 214 kgf*cm, 15 ft.*lbf }

  2. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY


    1. A0055X1E24
      *1 Seal Packing
      *2 6.0 mm
      *3 3.5 to 4.5 mm

      Remove any old packing material and be careful not to drop any oil on the contact surfaces of the cylinder block and oil pan.

    2. Apply seal packing in a continuous line as shown in the illustration.

      Application Specification
      Area Seal Packing Diameter Distance from Center of Bolt Hole to Center of Seal Packing
      A - A 3.0 to 4.5 mm (0.118 to 0.177 in.) 6.0 mm (0.236 in.)
      B - B -
      Seal packing
      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Note


      • Remove any oil from the contact surfaces.

      • Install the oil pan within 3 minutes and tighten the bolts within 10 minutes after applying seal packing.

      • Do not add engine oil for at least 2 hours after installing the oil pan.

    3. A0057JH

      Install the No. 2 oil pan with the 10 bolts and 2 nuts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

  3. INSTALL NO. 2 CHAIN SUB-ASSEMBLY


    1. A0056N5

      Temporarily install the crankshaft pulley bolt.

    2. Set the crankshaft key as shown in the illustration.

    3. Turn the drive shaft so that the cutout faces upward.

    4. Remove the crankshaft pulley bolt.

    5. A00595UE01

      Align the yellow mark plates with the timing mark of each gear as shown in the illustration.

    6. Install the gears onto the crankshaft and oil pump shaft with the chain on the gears.

    7. Temporarily install the oil pump drive shaft gear with the nut.

    8. A0053UE

      Install the damper spring to the chain tensioner plate, and then install the chain tensioner plate with the bolt.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }
    9. A0058IOE07

      Temporarily install the crankshaft pulley with the pulley bolt.

    10. Using SST, hold the crankshaft. Then tighten the drive shaft gear nut.

      for 86 mm (3.39 in.) Bolt Pitch Type:

      SST
      09213-58014   ( 91551-80840 )
      09330-00021

      for 64 mm (2.52 in.) Bolt Pitch Type:

      SST
      09213-54015
      09330-00021
      Torque:
      28 N*m  { 286 kgf*cm, 21 ft.*lbf }

      Tech Tips

      For the 64 mm (2.52 in.) bolt pitch type, the part number of the installation bolt for SST (crankshaft pulley holding tool) is 91551-00850 (quantity: 2).

    11. Remove SST, the crankshaft pulley bolt and crankshaft pulley.

  4. INSTALL CRANKSHAFT TIMING SPROCKET

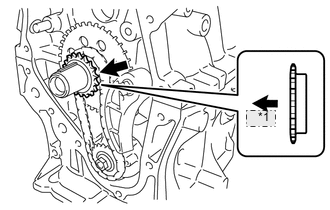

    1. A0056W7E01
      *1 Front

      Install the crankshaft timing sprocket as shown in the illustration.

  5. INSTALL NO. 1 CHAIN VIBRATION DAMPER

    Click here

  6. SET NO. 1 CYLINDER TO TDC/COMPRESSION

    Click here

  7. INSTALL CHAIN SUB-ASSEMBLY

    Click here

  8. INSTALL CHAIN TENSIONER SLIPPER

    Click here

  9. CHECK NO. 1 CYLINDER TO TDC/COMPRESSION

    Click here

  10. INSTALL TIMING CHAIN COVER SUB-ASSEMBLY


    1. A0058OS

      Install a new gasket.

      Note

      Remove any oil from the contact surface.

    2. A0054KP

      Install the engine water pump assembly with the 3 bolts.

      Torque:
      21 N*m  { 214 kgf*cm, 15 ft.*lbf }

    3. Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the timing chain cover, cylinder head, camshaft housing, stiffening crankcase and cylinder block.

      A00569XE11
      *1 Engine Side:
      *2 Timing Chain Cover Side:
      *3 Clean and degrease
    4. A0057S8

      Install 3 new O-rings.

    5. A0055JW

      Apply seal packing as shown in the illustration.

      Seal packing
      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
      Standard seal diameter
      5.0 mm (0.197 in.)

      Note


      • Remove any oil from the contact surface.

      • Install the timing chain cover within 3 minutes and tighten the bolts within 10 minutes after applying seal packing.

      • Do not add engine oil for at least 2 hours after installing the timing chain cover.

    6. Apply seal packing to the timing chain cover in a continuous line as shown in the following illustration.

      A0057HDE06
      Seal Packing
      Item Seal Packing
      Dashed line Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
      Continuous line
      Alternate long and short dashed line Toyota Genuine Seal Packing 1282B, Three Bond 1282B or equivalent
      Application Specification
      Area Seal Packing Diameter Distance from Edge of Cover to: Seal Packing Application Length Distance from Top of Cover to Top of Seal Packing
      Dashed line 2.5 to 3.0 mm (0.0984 to 0.118 in.)

      Center of seal packing

      2.5 mm (0.0984 in.)

      		 - -
      Continuous line 4.5 to 5.5 mm (0.177 to 0.217 in.) or 7.0 to 8.0 mm (0.276 to 0.315 in.) - - -
      Alternate long and short dashed line 4.0 mm (0.157 in.)

      Center of seal packing

      3.0 mm (0.118 in.)

      		 - -
      A - A 2.5 to 3.0 mm (0.0984 to 0.118 in.)

      Center of seal packing

      2.5 mm (0.0984 in.)

      		 - -
      B - B 4.5 to 5.5 mm (0.177 to 0.217 in.)

      Opposite edge of seal packing

      5.0 mm (0.197 in.)

      		 - -
      C - C 7.0 to 8.0 mm (0.276 to 0.315 in.)

      Opposite edge of seal packing

      7.5 mm (0.295 in.)

      		 - -
      F 4.5 to 5.5 mm (0.177 to 0.217 in.) - 15.5 mm (0.610 in.) 50.4 mm (1.98 in.)
      G 4.5 to 5.5 mm (0.177 to 0.217 in.) - 10.3 mm (0.406 in.) 143.1 mm (5.63 in.)
      H 7.0 to 8.0 mm (0.276 to 0.315 in.) - 19.5 mm (0.768 in.) 153.4 mm (6.04 in.)
      I 4.5 to 5.5 mm (0.177 to 0.217 in.) - 16.0 mm (0.630 in.) 385.8 mm (1.27 ft.)
      J 4.5 to 5.5 mm (0.177 to 0.217 in.) - 18.6 mm (0.732 in.) 51.4 mm (2.02 in.)
      K 4.5 to 5.5 mm (0.177 to 0.217 in.) - 25.3 mm (0.996 in.) 121.9 mm (4.80 in.)
      L 7.0 to 8.0 mm (0.276 to 0.315 in.) - 25.8 mm (1.02 in.) 147.2 mm (5.80 in.)
      M 4.5 to 5.5 mm (0.177 to 0.217 in.) - 5.1 mm (0.201 in.) 173.0 mm (6.81 in.)
      N 4.5 to 5.5 mm (0.177 to 0.217 in.) - 14.6 mm (0.575 in.) 385.8 mm (1.27 ft.)
      O 4.0 mm (0.157 in.)

      Center of seal packing

      3.0 mm (0.118 in.)

      		 - -

      Note


      • When the contact surfaces are wet, wipe them with oil-free cloth before applying seal packing.

      • Install the timing chain cover within 3 minutes and tighten the bolts within 10 minutes after applying seal packing.

      • After applying seal packing to the timing chain cover, install the engine mounting bracket and oil filter bracket within 10 minutes.

      • Do not add engine oil for at least 2 hours after installation.

    7. Clean the bolts and their installation holes.

    8. Install the timing chain cover.

    9. A0052IV

      Temporarily install the engine mounting bracket with the 3 bolts.

      Note


      • Install the mounting bracket within 10 minutes after installing the timing chain cover.

      • Do not add engine oil for at least 2 hours after installation.

    10. A0052IX

      Install 2 new O-rings.

    11. A0056C5

      Temporarily install the oil filter bracket with the 4 bolts.

      Note


      • Install the oil filter bracket within 10 minutes after installing the timing chain cover.

      • Do not add engine oil for at least 2 hours after installation.

    12. B0040GDE70
      Text in Illustration
      *1 Adhesive

      Apply adhesive to 5 and a half threads or more of the end of bolt E.

      Adhesive
      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    13. Install the timing chain cover with the 26 bolts and seal washer in the order shown in the illustration.

      A00588DE03
      Torque:
      for bolt A, E
      26 N*m  { 260 kgf*cm, 19 ft.*lbf }
      for bolt B
      51 N*m  { 520 kgf*cm, 38 ft.*lbf }
      for bolt C
      51 N*m  { 520 kgf*cm, 38 ft.*lbf }
      for bolt D
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

      Note


      • When the contact surfaces are wet, wipe them with oil-free cloth before applying seal packing.

      • Install the timing chain cover within 3 minutes and tighten the bolts within 10 minutes after applying the seal packing.

      • Do not add engine oil for at least 2 hours after installation.

      Bolt Length
      Item Length Thread Diameter
      Bolt A, E 35 mm (1.38 in.) 8 mm (0.315 in.)
      Bolt B 55 mm (2.17 in.) 10 mm (0.394 in.)
      Bolt C 80 mm (3.15 in.) 10 mm (0.394 in.)
      Bolt D 40 mm (1.57 in.) 6 mm (0.236 in.)

      Tech Tips

      Apply adhesive to bolt E before installing it.

  11. INSTALL TIMING CHAIN COVER OIL SEAL

    Click here

  12. INSTALL CRANKSHAFT PULLEY

    Click here

  13. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

    Click here

  14. INSTALL SPARK PLUG TUBE GASKET

    Click here

  15. INSTALL CYLINDER HEAD COVER GASKET

    Click here

  16. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

    Click here

  17. INSTALL RADIO SETTING CONDENSER

    Click here

  18. INSTALL IGNITION COIL ASSEMBLY

    Click here

  19. INSTALL THERMOSTAT

    Click here

  20. INSTALL WATER INLET

    Click here

  21. CONNECT WATER INLET HOSE


    1. A00554D

      Connect the water inlet hose to the water inlet housing.

  22. CONNECT NO. 3 WATER BY-PASS HOSE


    1. A00551B

      Connect the No. 3 water by-pass hose to the water inlet housing.

  23. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

    Click here

  24. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE


    1. Install the engine assembly with transaxle Click here.
