FRONT DIFFERENTIAL OIL SEAL REPLACEMENT

PROCEDURE


  1. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  2. REMOVE REAR ENGINE UNDER COVER RH

    Click here

  3. REMOVE REAR ENGINE UNDER COVER LH

    Click here

  4. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID


    1. A00583A

      Remove the refill plug and gasket from the continuously variable transaxle assembly.

    2. A0054CV

      Using a 10 mm hexagon socket wrench, remove the drain plug and gasket from the transaxle oil (CVT) pan sub-assembly, and drain the fluid.

    3. Install a new gasket and the drain plug to the transaxle oil (CVT) pan sub-assembly.

      Torque:
      49 N*m  { 500 kgf*cm, 36 ft.*lbf }

    4. Temporarily install the gasket and refill plug to the continuously variable transaxle assembly.

      Tech Tips

      Reuse the old gasket. The refill plug will be removed again to adjust the fluid level.

  5. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Click here

  6. REMOVE MANIFOLD STAY

    Click here

  7. REMOVE DRIVE SHAFT BEARING BRACKET

    Click here

  8. REMOVE FRONT DRIVE SHAFT OIL SEAL LH


    1. A0054IWE02

      Using SST, remove the front drive shaft oil seal LH from the continuously variable transaxle assembly.

      SST
      09308-00010

      Note

      Do not damage the continuously variable transaxle assembly.

  9. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

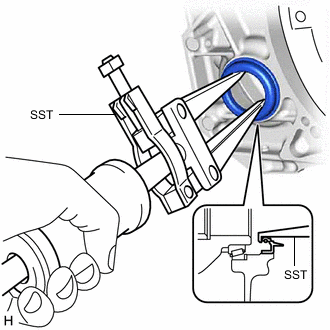

    1. A0054FIE02

      Using SST, remove the front drive shaft oil seal RH from the continuously variable transaxle assembly.

      SST
      09308-00010

      Note

      Do not damage the continuously variable transaxle assembly.

  10. INSTALL FRONT DRIVE SHAFT OIL SEAL LH


    1. Apply MP grease to the lip of a new front drive shaft oil seal LH.

    2. A0052FWE02
      Text in Illustration
      *a -0.5 to 0.5 mm

      Using SST and a hammer, install the front drive shaft oil seal LH to the continuously variable transaxle assembly.

      SST
      09950-70010   ( 09951-00480, 09951-00610, 09951-07200, 09952-06010 )
      09631-12090
      Standard Depth
      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      Note


      • Be sure to install the front drive shaft oil seal LH in the correct direction.

      • Make sure to install the front drive shaft oil seal LH as specified, otherwise malfunctions such as a fluid leak will occur.

      • Do not damage the lip of the front drive shaft oil seal LH.

  11. INSTALL FRONT DRIVE SHAFT OIL SEAL RH


    1. Apply MP grease to the lip of a new front drive shaft oil seal RH.

    2. A0059MKE02
      Text in Illustration
      *a -0.5 to 0.5 mm

      Using SST and a hammer, install the front drive shaft oil seal RH to the continuously variable transaxle assembly.

      SST
      09316-10010
      09950-70010   ( 09951-07200 )
      Standard Depth
      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      Note


      • Be sure to install the front drive shaft oil seal RH in the correct direction.

      • Make sure to install the front drive shaft oil seal RH as specified, otherwise malfunctions such as a fluid leak will occur.

      • Do not damage the lip of the front drive shaft oil seal RH.

  12. INSTALL DRIVE SHAFT BEARING BRACKET

    Click here

  13. INSTALL MANIFOLD STAY

    Click here

  14. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Click here

  15. ADD CONTINUOUSLY VARIABLE TRANSAXLE FLUID

    Click here

  16. INSPECT FOR FLUID LEAK

  17. INSTALL REAR ENGINE UNDER COVER RH

    Click here

  18. INSTALL REAR ENGINE UNDER COVER LH

    Click here

  19. INSTALL NO. 1 ENGINE UNDER COVER

    Click here
