SHIFT LEVER INSTALLATION

PROCEDURE


  1. INSTALL SHIFT LEVER ASSEMBLY

    Note

    Check that the park/neutral position switch and shift lever are in neutral.

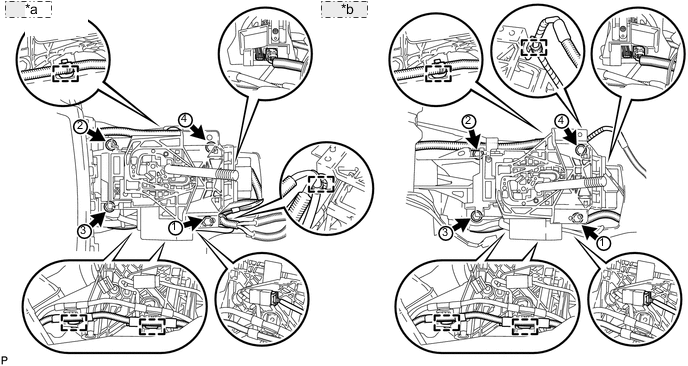

    A0058O5E02
    *a for LHD:
    *b for RHD:

    1. Install the shift lever with the 4 bolts. Tighten the bolts in the order shown in the illustration.

      Torque:
      12 N*m  { 122 kgf*cm, 9 ft.*lbf }

    2. Connect the 2 connectors and 4 clamps to the shift lever.

  2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY


    1. Turn the nut of the transmission control cable 180° counterclockwise. While holding the nut in place, push in the stopper until it clicks twice.

      A00589HE24
      Text in Illustration
      *1 Stopper *2 Nut

    2. Install the outer part of the transmission control cable to the shift lever retainer. Check that the spring is positioned at "A" and push in the stopper.

      A0059DZE10
      Text in Illustration
      *1 Stopper *3 Shift Lever Retainer
      *2 Nut *4 Spring

      Tech Tips

      If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

    3. A0053WVE02
      *1 Side View:
      *2 Push
      *3 Bottom View:
      *4 Lock Piece

      Push the 2 claws together at the top of the transmission control cable lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.

    4. A0055MCE02
      Text in Illustration
      *1 Lock Piece

      Connect the end of the cable to the shift lever assembly.

      Note


      • Make sure that the lock piece is pulled up.

      • Push on the end of the cable all the way to the base of the pin.

    5. A0053JWE02
      Text in Illustration
      *1 Lock Piece
      *2 Adjuster Case

      Push the lock piece into the adjuster case.

      Note

      Securely push in the lock piece until it locks.

  3. INSPECT SHIFT LEVER POSITION

    Click here

  4. INSTALL CONSOLE BOX ASSEMBLY


    1. Install the console box Click here.
