DIFFERENTIAL CASE DISASSEMBLY

PROCEDURE


  1. INSPECT FRONT DIFFERENTIAL CASE ASSEMBLY WITH RING GEAR

    Click here

  2. INSPECT FRONT DIFFERENTIAL SIDE GEAR THRUST AMOUNT

    Click here

  3. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN


    1. Mount the front differential case in a vise between aluminum plates.

      Note

      Do not overtighten the vise.

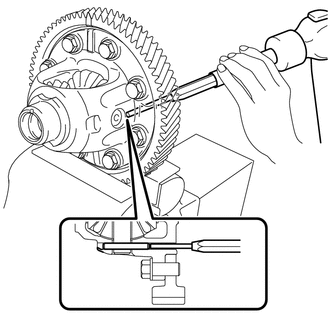

    2. A0055J2

      Using a 5 mm pin punch and hammer, remove the front differential pinion shaft straight pin from the front differential case assembly with ring gear.

  4. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT

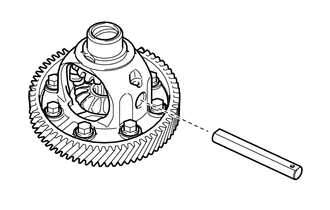

    1. A0054GG

      Remove the front No. 1 differential pinion shaft from the front differential case assembly with ring gear.

  5. INSPECT FRONT DIFFERENTIAL PINION BACKLASH

    Click here

  6. REMOVE FRONT DIFFERENTIAL SIDE GEAR


    1. Install SST as shown in the illustration and tighten it.

      SST
      09528-52010   ( 09528-05020, 09953-05010 )
      A00579WE06
      Text in Illustration
      *a Turn *b Hold

      Note

      Do not overtighten SST, as doing so will damage the front differential side gears, conical springs, front No. 1 differential side gear thrust washers and front differential case assembly with ring gear.

      Tech Tips


      • Tighten SST until there is clearance between the front differential pinions and front differential side gears.

      • When removing the front differential pinions, do not overtighten SST, as it is necessary to rotate the front differential side gears.

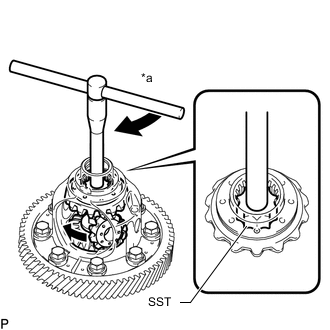

    2. A0053AAE05
      Text in Illustration
      *a Turn

      Install SST as shown in the illustration, rotate the front differential side gear, and then remove the 2 front differential pinions and 2 front differential pinion thrust washers from the front differential case assembly with ring gear.

      SST
      09528-52010   ( 09528-05040 )

      Note

      Do not drop the differential pinion and front differential pinion thrust washer.

    3. A0055CSE03
      Text in Illustration
      *1 Front Differential Side Gear
      *2 Conical Spring
      *3 Front No. 1 Differential Side Gear Thrust Washer

      Remove SST from the front differential case assembly with ring gear, and then remove the 2 front differential side gears, 2 front No. 1 differential side gear thrust washers and 2 conical springs from the front differential case assembly with ring gear.

      Note

      Do not drop the front differential side gear, front No. 1 differential side gear thrust washer and conical spring.
