IGNITION SWITCH COMPONENTS

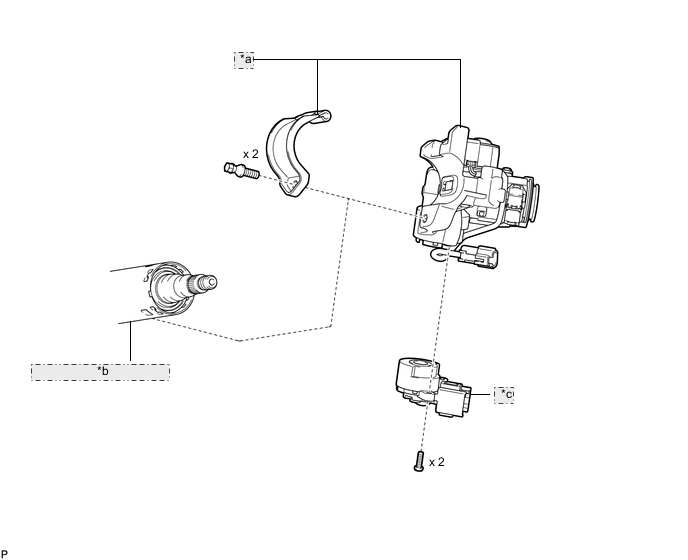

ILLUSTRATION

for Manual Transaxle

*a	UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY
*b	STEERING COLUMN ASSEMBLY
*c	IGNITION SWITCH ASSEMBLY

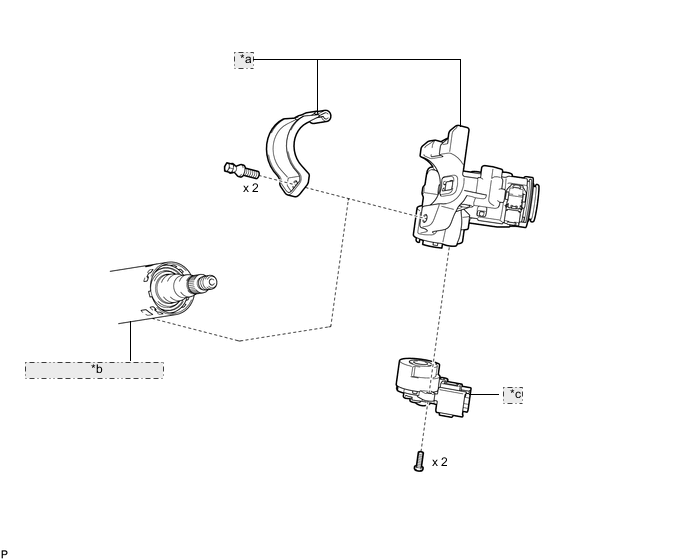

ILLUSTRATION

for CVT

*a	UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY
*b	STEERING COLUMN ASSEMBLY
*c	IGNITION SWITCH ASSEMBLY
