REAR SPOILER INSTALLATION


  1. INSTALL NO. 3 REAR SPOILER PROTECTOR


    1. Clean the rear spoiler.


      1. Remove any double-sided tape from the rear spoiler.

      2. Wipe off any tape adhesive residue with cleaner.

    2. Install 2 new No. 3 rear spoiler protectors.


      1. Remove the release paper from the 2 No. 3 rear spoiler protectors.

        Tech Tips

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      2. Install 2 new No. 3 rear spoiler protectors.

  2. INSTALL NO. 4 REAR SPOILER PROTECTOR


    1. Clean the rear spoiler.


      1. Remove any double-sided tape from the rear spoiler.

      2. Wipe off any tape adhesive residue with cleaner.

    2. Install 2 new No. 4 rear spoiler protectors.


      1. Remove the release paper from the 2 No. 4 rear spoiler protectors.

        Tech Tips

        After removing the release paper, keep the exposed adhesive free from foreign matter.

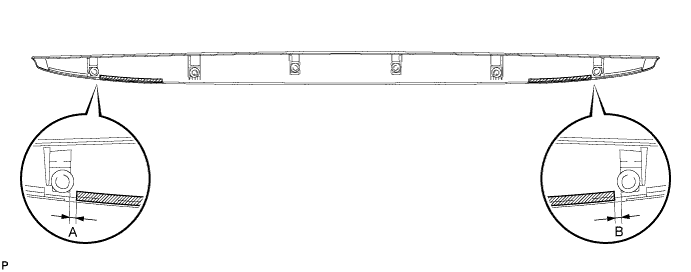

      2. Install 2 new No. 4 rear spoiler protectors as shown in the illustration.

        A01HUFYE01
        Standard Measurement
        Dimension Measurement Dimension Measurement
        A 5.2 mm (0.205 in.) B 5.2 mm (0.205 in.)

  3. INSTALL NO. 5 REAR SPOILER PROTECTOR


    1. Clean the rear spoiler.


      1. Remove any double-sided tape from the rear spoiler.

      2. Wipe off any tape adhesive residue with cleaner.

    2. Install 2 new No. 5 rear spoiler protectors.


      1. Remove the release paper from the 2 No. 5 rear spoiler protectors.

        Tech Tips

        After removing the release paper, keep the exposed adhesive free from foreign matter.

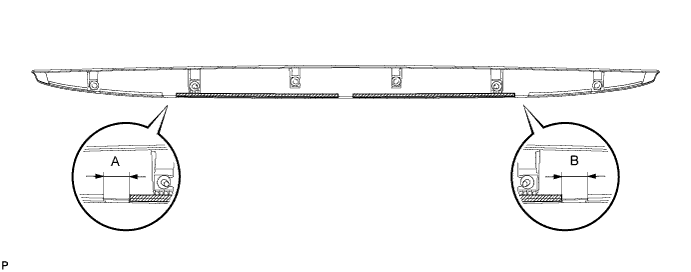

      2. Install 2 new No. 5 rear spoiler protectors as shown in the illustration.

        A01HU95E01
        Standard Measurement
        Dimension Measurement Dimension Measurement
        A 38.0 mm (1.50 in.) B 38.0 mm (1.50 in.)

  4. INSTALL REAR SPOILER SUB-ASSEMBLY


    1. When replacing the rear spoiler with a new one:


      1. Install the 2 stud bolts to the rear spoiler.

    2. Install 2 new gaskets to the rear spoiler.

    3. Install 4 new clips to the rear spoiler.

    4. Clean the rear spoiler.


      1. Remove any double-sided tape from the rear spoiler.

      2. Wipe off any tape adhesive residue with cleaner.

    5. Install a new No. 2 rear spoiler protector.


      1. Remove the release paper from the No. 2 rear spoiler protector.

        Tech Tips

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      2. Install a new No. 2 rear spoiler protector.

        Tech Tips

        Use the same procedure for the RH side and LH side.

    6. Install the No. 1 rear spoiler protector.


      1. Remove the release paper from the No. 1 rear spoiler protector.

        Tech Tips

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      2. Install the No. 1 rear spoiler protector as shown in the illustration.

        A01HSBXE01
        Standard Measurement
        Dimension Measurement Dimension Measurement
        A 5.0 mm (0.197 in.) B 5.0 mm (0.197 in.)

    7. Clean the vehicle body surface.


      1. Using a heat light, heat the vehicle body surface.

      2. Remove the double-sided tape from the vehicle body.

      3. Wipe off any tape adhesive residue with cleaner.

    8. Install the rear spoiler sub-assembly.


      1. Using a heat light, heat the vehicle body and rear spoiler sub-assembly.

      2. Remove the release paper from the rear spoiler sub-assembly.

        Tech Tips

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. A01HTXB

        Engage the 4 clips.

      4. Install the rear spoiler sub-assembly with the 2 nuts.

  5. INSTALL LUGGAGE COMPARTMENT DOOR COVER


    1. A01HVNE

      Install the luggage compartment door cover with the 13 clips.
