FRONT PASSENGER SIDE POWER WINDOW SWITCH INSPECTION


  1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY


    1. Check the switch function.

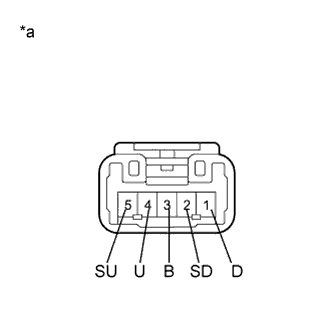

      1. A01HUN9E20
        Text in Illustration
        *a

        Component without harness connected

        (Power Window Regulator Switch Assembly (for Front Passenger Door))

        Measure the resistance when the switch is operated according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Condition Specified Condition
        1 (D) - 2 (SD) UP Below 1 Ω
        3 (B) - 4 (U) Below 1 Ω
        1 (D) - 2 (SD) off Below 1 Ω
        4 (U) - 5 (SU) Below 1 Ω
        4 (U) - 5 (SU) DOWN Below 1 Ω
        1 (D) - 3 (B) Below 1 Ω

        If the result is not as specified, replace the power window regulator switch assembly (for front passenger door).
