FRONT SEATBACK HEATER INSPECTION


  1. INSPECT FRONT SEAT BACK HEATER ASSEMBLY LH

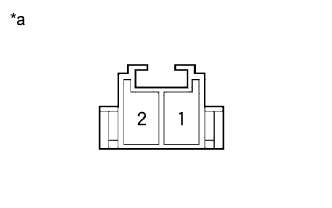

    1. A01HTUJE09
      Text in Illustration
      *a

      Component without harness connected

      (Front Seat Back Heater Assembly LH)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 Always 3.26 to 4 Ω

      If the result is not as specified, replace the front seat back heater assembly LH.

  2. INSPECT FRONT SEAT BACK HEATER ASSEMBLY RH


    1. A01HTUJE09
      Text in Illustration
      *a

      Component without harness connected

      (Front Seat Back Heater Assembly RH)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 Always 3.26 to 4 Ω

      If the result is not as specified, replace the front seat back heater assembly RH.
