FRONT SEAT ASSEMBLY (for Manual Seat) COMPONENTS

ILLUSTRATION

A01HUL5E01

ILLUSTRATION

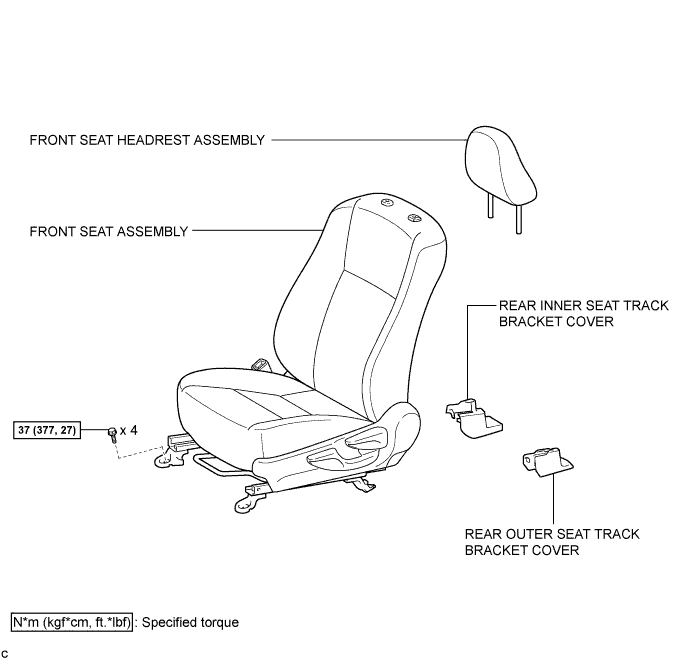

A01HTTUE01

ILLUSTRATION

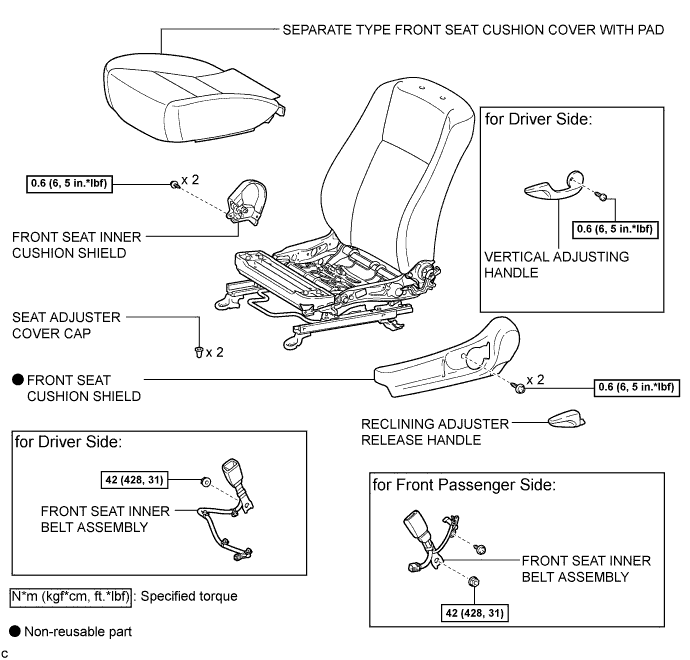

A01HVSBE01

ILLUSTRATION

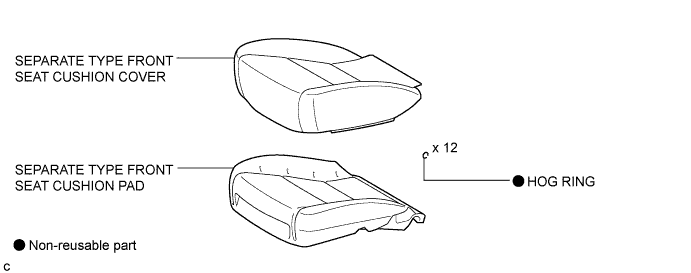

A01HSQAE01

ILLUSTRATION

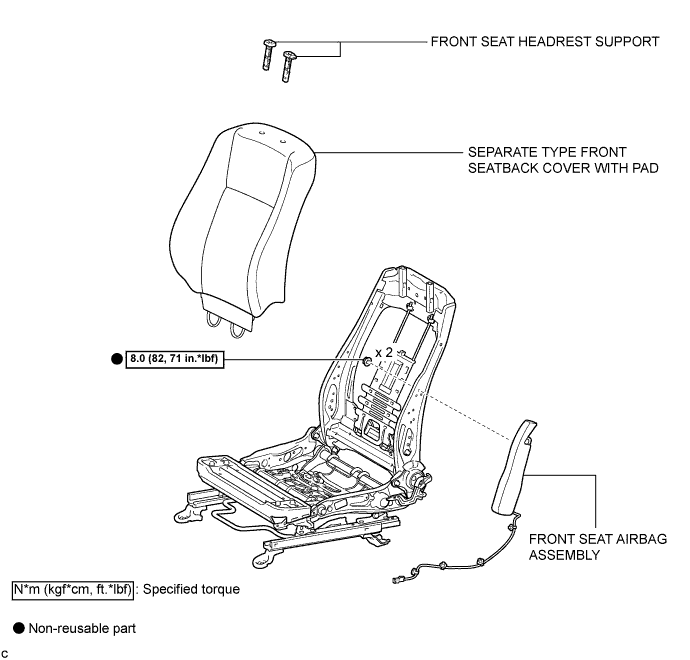

A01HVQUE01

ILLUSTRATION

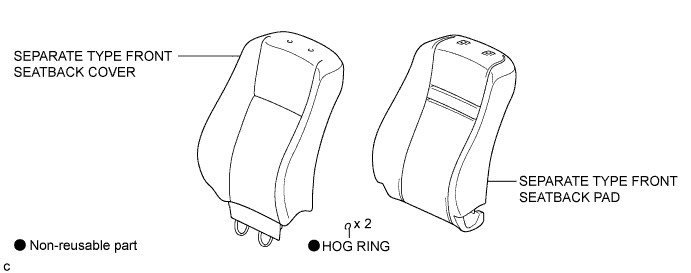

A01HUOWE01

ILLUSTRATION

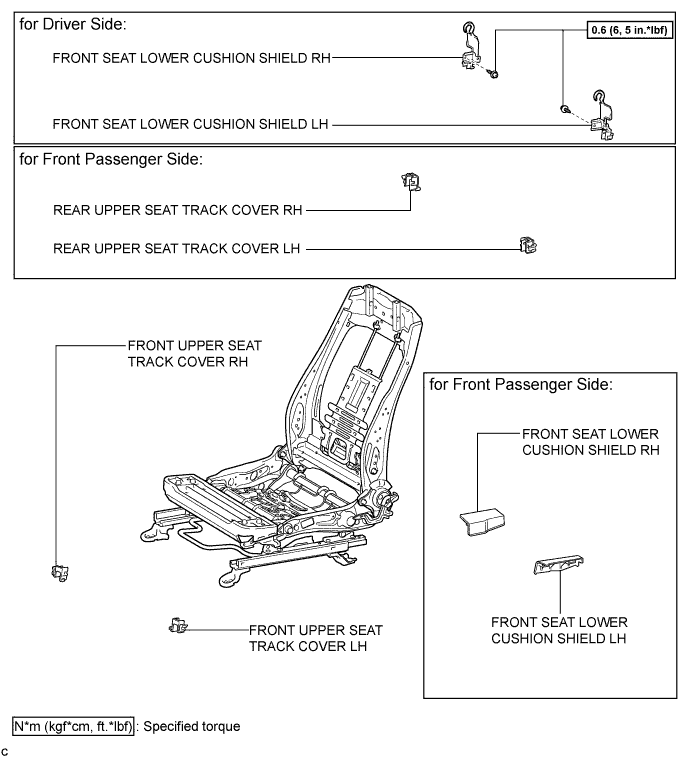

A01HUYTE01

ILLUSTRATION

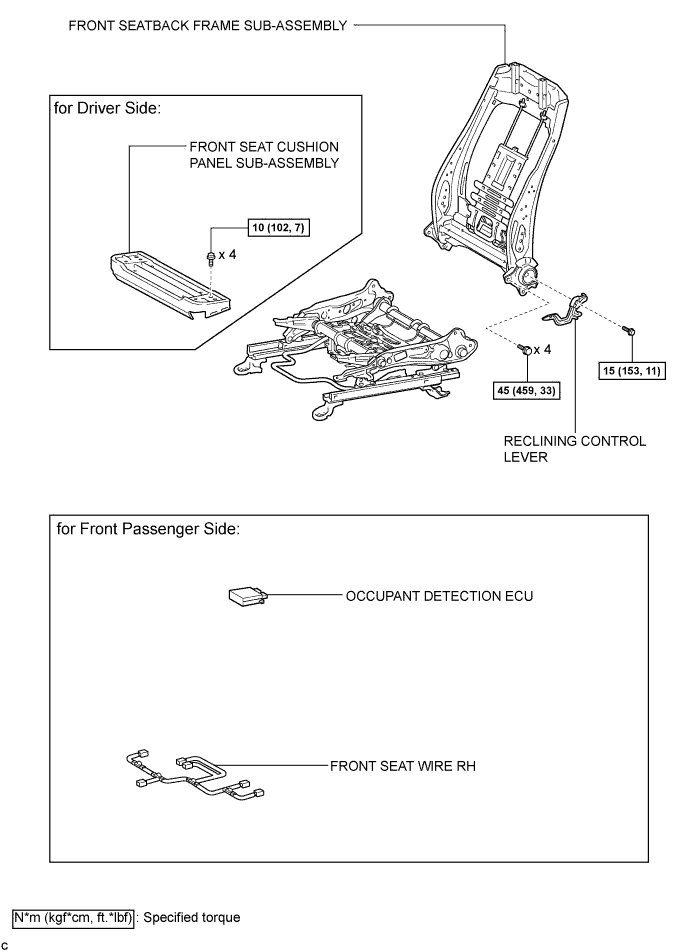

A01HV8TE02

ILLUSTRATION

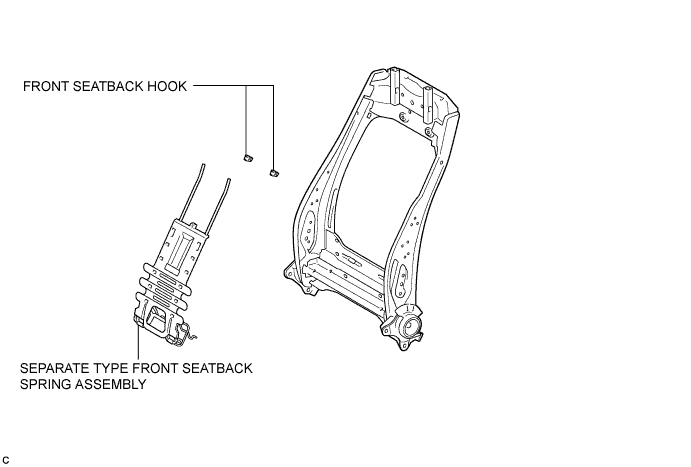

A01HVPDE01

ILLUSTRATION

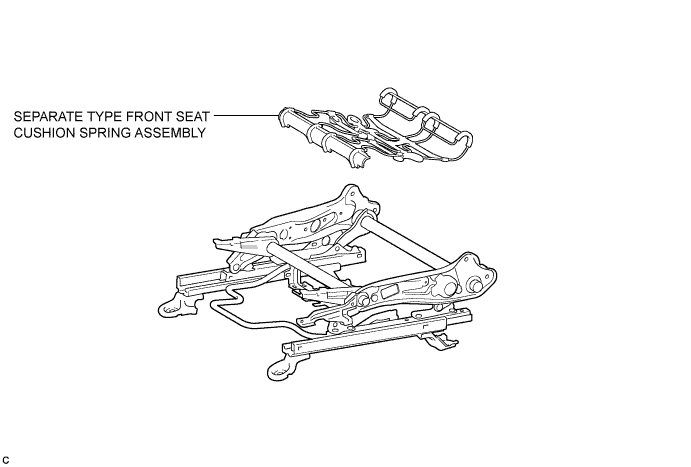

A01HV6NE01
