RADIO ANTENNA INSTALLATION


  1. INSTALL NO. 1 AMPLIFIER ANTENNA ASSEMBLY


    1. Engage the 2 claws to install the No. 1 amplifier antenna assembly.

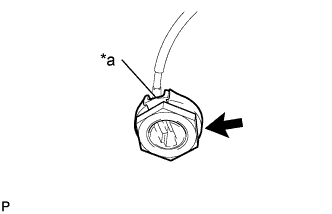

    2. A01EKPHE02
      Text in Illustration
      *a Cutout

      Place the antenna cord in the cutout of the antenna nut.

    3. Install the No. 1 amplifier antenna assembly with the antenna nut.

      Torque:
      4.5 N*m  { 46 kgf*cm, 40 in.*lbf }

    4. Connect the 2 connectors.

  2. INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY

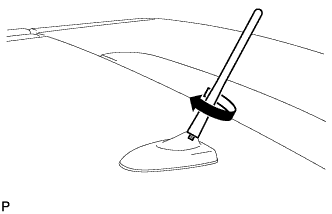

    1. A01EMH5

      Turn the roof antenna pole sub-assembly in the direction indicated by the arrow in the illustration to install it.

  3. INSTALL ROOF HEADLINING ASSEMBLY

    Click here
