FRONT DOOR SPEAKER INSPECTION


  1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY


    1. With the speaker installed, check that there is no looseness or other abnormalities.

    2. Check that there is no foreign matter in the speaker, no tears on the speaker cone or other abnormalities.

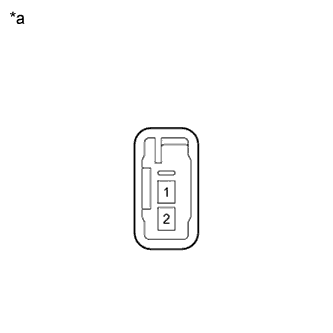

    3. A01EMIHE02
      Text in Illustration
      *a

      Component without harness connected

      (Front No. 1 Speaker Assembly)

      Measure the resistance of the speaker.

      Standard Resistance
      for 6 Speakers:
      Tester Connection Condition Specified Condition
      1 - 2 Always 3.2 to 4.8 Ω
      for 13 Speakers:
      Tester Connection Condition Specified Condition
      1 - 2 Always 1.65 to 2.15 Ω

      If the result is not as specified, replace the speaker.
