SFI SYSTEM, Diagnostic DTC:P0420

DTC Code DTC Name
P0420 Catalyst System Efficiency Below Threshold (Bank 1)

MONITOR DESCRIPTION

The ECM uses sensors mounted in front of and behind the Three-Way Catalytic Converter (TWC) to monitor its efficiency.

The first sensor, the air fuel ratio sensor, sends pre-catalyst information to the ECM. The second sensor, the heated oxygen sensor, sends post-catalyst information to the ECM.

In order to detect any deterioration in the three-way catalytic converter, the ECM calculates the oxygen storage capacity of the three-way catalytic converter. This calculation is based on the voltage output of the heated oxygen sensor while performing active air fuel ratio control.

The oxygen storage capacity value is an indication of the oxygen storage capacity of the three-way catalytic converter. When the vehicle is being driven with a warm engine, active air fuel ratio control is performed for approximately 15 to 20 seconds. When it is performed, the ECM deliberately sets the air fuel ratio to lean or rich levels. If the cycle of the waveform for the heated oxygen sensor is long, the oxygen storage capacity is great. There is a direct correlation between the heated oxygen sensor and the oxygen storage capacity of the three-way catalytic converter.

The ECM uses the oxygen storage capacity value to determine the state of the three-way catalytic converter. If any deterioration has occurred, the ECM illuminates the MIL and sets the DTC.

DTC No. DTC Detection Condition Trouble Area
P0420 The oxygen storage capacity value is less than the standard value under active air fuel ratio control (2 trip detection logic).

  • Gas leak from exhaust system

  • Air fuel ratio sensor (bank 1 sensor 1)

  • Heated oxygen sensor (bank 1 sensor 2)

  • Exhaust manifold converter sub-assembly (TWC: Front catalyst) and center exhaust pipe assembly (TWC: Rear catalyst)

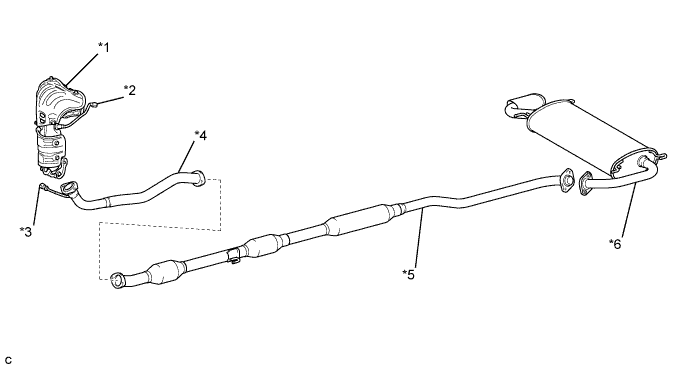

CATALYST LOCATION

A01ELIIE01
Text in Illustration
*1 Exhaust Manifold Converter Sub-assembly (TWC: Front Catalyst) *2 Air Fuel Ratio Sensor (Sensor 1)
*3 Heated Oxygen Sensor (Sensor 2) *4 Front Exhaust Pipe Assembly
*5 Canter Exhaust Pipe Assembly (TWC: Rear Catalyst) *6 Tail Exhaust Pipe Assembly

Note

Replace the exhaust manifold converter sub-assembly (*1) and the center exhaust pipe assembly (*5) together when catalyst replacement is necessary. (Excluding air fuel ratio sensor *2 and heated oxygen sensor *3)

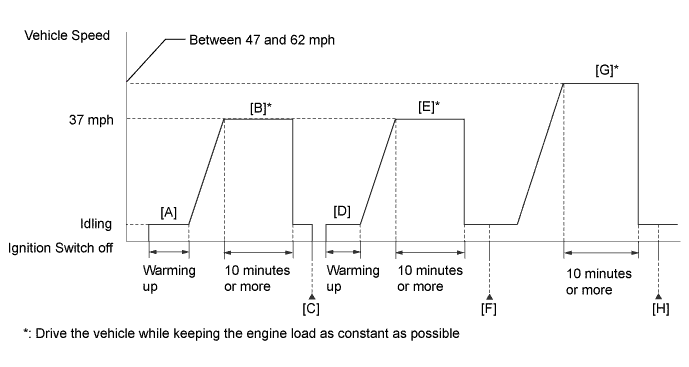

CONFIRMATION DRIVING PATTERN

Tech Tips

Performing this confirmation driving pattern will activate the catalyst efficiency monitor. This is very useful for verifying the completion of a repair.

A01EJFSE40

  1. Connect the GTS to the DLC3.

  2. Turn the ignition switch to ON.

  3. Turn the GTS on.

  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Click here.

  5. Turn the ignition switch off and wait for at least 30 seconds.

  6. Turn the ignition switch to ON and turn the GTS on.

  7. Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher [A].

  8. Drive the vehicle at approximately 37 mph (60 km/h) for 10 minutes or more [B].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    Tech Tips

    Drive the vehicle while keeping the engine load as constant as possible.

  9. Turn the ignition switch off and wait for at least 30 seconds [C].

  10. Turn the ignition switch to ON and turn the GTS on.

  11. Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher [D].

  12. Drive the vehicle at approximately 37 mph (60 km/h) for 10 minutes or more [E].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    Tech Tips

    Drive the vehicle while keeping the engine load as constant as possible.

  13. Enter the following menus: Powertrain / Engine / Trouble Codes [F].

  14. Read the pending DTCs.

    Tech Tips


    • If a pending DTC is output, the system is malfunctioning.

    • If a pending DTC is not output, perform the following procedure.

  15. Drive the vehicle at a speed between 47 and 62 mph (75 and 100 km/h) for 10 minutes or more [G].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    Tech Tips

    Drive the vehicle while keeping the engine load as constant as possible.

  16. Enter the following menus: Powertrain / Engine / Trouble Codes [H].

  17. Read the pending DTCs.

    Tech Tips


    • If a pending DTC is output, the system is malfunctioning.

    • If a pending DTC is not output, the system is normal.

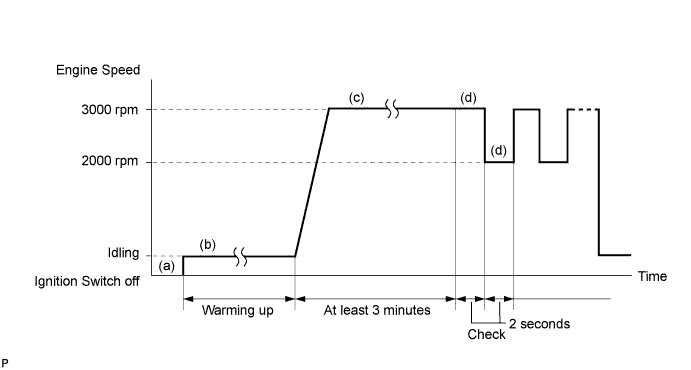

CONDITIONING FOR SENSOR TESTING

Tech Tips

Perform the operation with the engine speeds and time durations described below prior to checking the waveforms of the air fuel ratio sensor and heated oxygen sensor. This is to activate the sensors sufficiently to obtain the appropriate inspection results.

A01EJL9E44

  • (a) Connect the GTS to the DLC3.

  • (b) Start the engine and warm it up with all the accessories switched off until the engine coolant temperature stabilizes.

  • (c) Run the engine at an engine speed of between 2500 rpm and 3000 rpm for at least 3 minutes.

  • (d) While running the engine at 3000 rpm for 2 seconds and 2000 rpm for 2 seconds, check the waveforms of the air fuel ratio and heated oxygen sensors using the GTS.

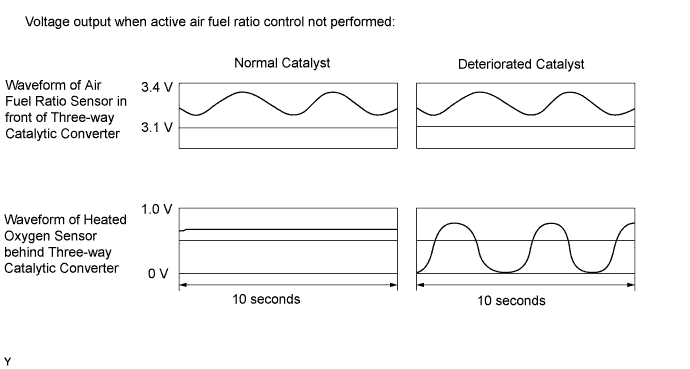

Tech Tips


  • If either voltage output of the air fuel ratio or heated oxygen sensor does not fluctuate, or there is noise in the waveform of either sensor, the sensor may be malfunctioning.

  • If the voltage outputs of both the sensors remain lean or rich, the air fuel ratio may be extremely lean or rich. In such cases, enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume.

  • If the three-way catalytic converter has deteriorated, the heated oxygen sensor (located behind the three-way catalytic converter) voltage output fluctuates up and down frequently, even under normal driving conditions (active air fuel ratio control is not performed).

A01EJRYE09

INSPECTION PROCEDURE

Tech Tips


  • Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

  • If a malfunction cannot be found when troubleshooting DTC P0420, a lean or rich abnormality may be the cause. Perform troubleshooting by following the inspection procedure for P0171 (System Too Lean) and P0172 (System Too Rich).

  • Sensor 1 refers to the sensor closest to the engine assembly.

  • Sensor 2 refers to the sensor farthest away from the engine assembly.

PROCEDURE


  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0420)


    1. Connect the GTS to the DLC3.

    2. Turn the ignition switch to ON.

    3. Turn the GTS on.

    4. Enter the following menus: Powertrain / Engine / Trouble Codes.

    5. Read the DTCs.

      Result
      Result Proceed to
      DTC P0420 is output A
      DTC P0420 and other DTCs are output B

      Tech Tips

      If any DTCs other than P0420 are output, troubleshoot those DTCs first.


    B

    GO TO DTC CHART Click here

    A

  2. PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME)


    1. Connect the GTS to the DLC3.

    2. Start the engine and warm it up.

    3. Turn the GTS on.

    4. Run the engine at an engine speed of 2500 rpm for approximately 90 seconds.

    5. Enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume / All Data / AFS Voltage B1S1 and O2S B1S2.

    6. Perform the Active Test operation with the engine idling (press the RIGHT or LEFT button to change the fuel injection volume).

    7. Monitor the voltage outputs of the air fuel ratio sensor and heated oxygen sensor (AFS Voltage B1S1 and O2S B1S2) displayed on the GTS.

      Tech Tips


      • Change the fuel injection volume within the range of -12% to 12%. The injection volume can be changed in fine gradations.

      • Each sensor reacts in accordance with increases and decreases in the fuel injection volume.

      • The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.

      • If the sensor output voltage does not change (almost no reaction) while performing the Active Test, the sensor may be malfunctioning.

        Standard

        GTS Display

        (Sensor)

        		 Injection Volume Status Voltage

        AFS Voltage B1S1

        (Air fuel ratio)

        		 12% Rich Below 3.1 V
        -12% Lean Higher than 3.4 V

        O2S B1S2

        (Heated oxygen)

        		 12% Rich Higher than 0.55 V
        -12% Lean Below 0.4 V
        Result

        Status

        AFS Voltage B1S1

        Status

        O2S B1S2

        Air Fuel Ratio Condition and Air Fuel Ratio and

        Heated Oxygen Sensors Condition

        		 Misfire Main Suspected Trouble Area Proceed to
        Lean/Rich Lean/Rich Normal -

        • Three-way catalytic converter

        • Gas leak from exhaust system

        		 A
        Lean Lean/Rich Air fuel ratio sensor malfunction -

        • Air fuel ratio sensor

        		 B
        Rich Lean/Rich Air fuel ratio sensor malfunction -

        • Air fuel ratio sensor
        Lean/Rich Lean Heated oxygen sensor malfunction -

        • Heated oxygen sensor

        • Gas leak from exhaust system

        		 C
        Lean/Rich Rich Heated oxygen sensor malfunction -

        • Heated oxygen sensor

        • Gas leak from exhaust system
        Lean Lean Actual air fuel ratio lean May occur

        • Extremely lean actual air fuel ratio

        • Gas leak from exhaust system

        		 D
        Rich Rich Actual air fuel ratio rich -

        • Extremely rich actual air fuel ratio

        • Gas leak from exhaust system

        Lean: During Control the Injection Volume, the air fuel ratio sensor output voltage (AFS Voltage B1S1) is consistently higher than 3.4 V, and the heated oxygen sensor output voltage (O2S B1S2) is consistently below 0.4 V.

        Rich: During Control the Injection Volume, the AFS Voltage B1S1 is consistently below 3.1 V, and the O2S B1S2 is consistently higher than 0.55 V.

        Lean/Rich: During Control the Injection Volume of the Active Test, the output voltage of the heated oxygen sensor alternates correctly.


    B

    REPLACE AIR FUEL RATIO SENSOR Click here

    C

    CHECK FOR EXHAUST GAS LEAK Click here

    D

    CHECK FOR EXHAUST GAS LEAK Click here

    A

  3. CHECK FOR EXHAUST GAS LEAK


    1. Check for exhaust gas leaks.

      OK
      No gas leaks.

    NG

    REPAIR OR REPLACE EXHAUST GAS LEAK POINT Click here

    OK

  4. REPLACE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (TWC: FRONT CATALYST) AND CENTER EXHAUST PIPE ASSEMBLY (TWC: REAR CATALYST))

    Note

    Replace the exhaust manifold converter sub-assembly (TWC: Front catalyst) and the center exhaust pipe assembly (TWC: Rear catalyst) together when catalyst replacement is necessary.

    Tech Tips

    Confirm the replacement parts, referring to the illustration in the Catalyst Location.


    1. Replace the exhaust manifold converter sub-assembly (TWC: Front catalyst) Click here.

    2. Replace the center exhaust pipe assembly (TWC: Rear catalyst) Click here.


    NEXT

    END

  5. REPLACE AIR FUEL RATIO SENSOR


    1. Replace the air fuel ratio sensor Click here.


    NEXT

    CHECK WHETHER DTC OUTPUT RECURS (DTC P0420) Click here

  6. CHECK FOR EXHAUST GAS LEAK


    1. Check for exhaust gas leaks.

      OK
      No gas leaks.

    NG

    REPAIR OR REPLACE EXHAUST GAS LEAK POINT Click here

    OK

  7. REPLACE HEATED OXYGEN SENSOR


    1. Replace the heated oxygen sensor Click here.


    NEXT

    CHECK WHETHER DTC OUTPUT RECURS (DTC P0420) Click here

  8. CHECK FOR EXHAUST GAS LEAK


    1. Check for exhaust gas leaks.

      OK
      No gas leaks.

    NG

    REPAIR OR REPLACE EXHAUST GAS LEAK POINT Click here

    OK

  9. CHECK CAUSE OF EXTREMELY RICH OR LEAN ACTUAL AIR FUEL RATIO


    1. Cheek the cause of extremely rich or lean actual air fuel ratio, referring to the DTC P0171 Inspection Procedure Click here.


    NEXT

    CHECK WHETHER DTC OUTPUT RECURS (DTC P0420) Click here

  10. REPAIR OR REPLACE EXHAUST GAS LEAK POINT


    1. Repair or replace exhaust gas leak point.


    NEXT

  11. CHECK WHETHER DTC OUTPUT RECURS (DTC P0420)


    1. Connect the GTS to the DLC3.

    2. Turn the ignition switch to ON.

    3. Turn the GTS on.

    4. Clear the DTCs Click here.

    5. Turn the ignition switch off and wait for at least 30 seconds.

    6. Turn the ignition switch to ON.

    7. Turn the GTS on.

    8. Start the engine.

    9. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

    10. Enter the following menus: Powertrain / Engine / Trouble Codes.

    11. Read the DTCs.

      Result
      Result Proceed to
      DTC P0420 is output A

      DTC is not output

      (No pending DTCs output)

      		 B

    B

    END

    A

  12. REPLACE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (TWC: FRONT CATALYST) AND CENTER EXHAUST PIPE ASSEMBLY (TWC: REAR CATALYST))

    Note

    Replace the exhaust manifold converter sub-assembly (TWC: Front catalyst) and the center exhaust pipe assembly (TWC: Rear catalyst) together when catalyst replacement is necessary.

    Tech Tips

    Confirm the replacement parts, referring to the illustration in the Catalyst Location.


    1. Replace the exhaust manifold converter sub-assembly (TWC: Front catalyst) Click here.

    2. Replace the center exhaust pipe assembly (TWC: Rear catalyst) Click here.


    NEXT

    END
