SFI SYSTEM, Diagnostic DTC:P0013

DTC Code DTC Name
P0013 Camshaft Position "B" Actuator Circuit / Open (Bank 1)

DESCRIPTION

The Variable Valve Timing (VVT) system adjusts the exhaust valve timing to improve driveability. The engine oil pressure turns the VVT controller to adjust the valve timing.

The camshaft timing oil control valve assembly is a solenoid valve and switches the engine oil line. The valve moves when the ECM applies 12 V to the solenoid. The ECM changes the energizing time to the solenoid (duty-cycle) in accordance with the camshaft position, crankshaft position, throttle position, etc.

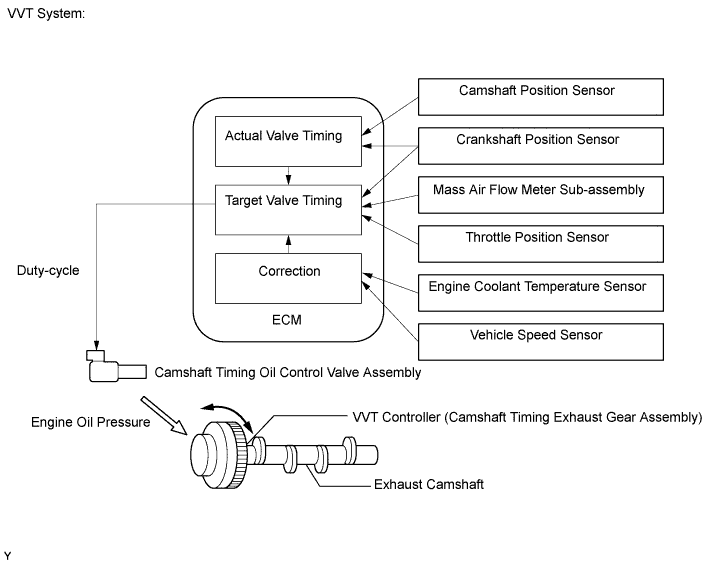

A01EKLWE20
DTC No. DTC Detection Condition Trouble Area
P0013

Open or short in camshaft timing oil control valve assembly (for exhaust camshaft) circuit

(1 trip detection logic)

  • Open or short in camshaft timing oil control valve assembly (for exhaust camshaft) circuit

  • Camshaft timing oil control valve assembly (for exhaust camshaft)

  • ECM

MONITOR DESCRIPTION

This DTC is designed to detect open or short in the camshaft timing oil control valve assembly (for exhaust camshaft) circuit. If the camshaft timing oil control valve assembly duty-cycle is excessively high or low while the ignition switch is ON or the engine is running, the ECM will illuminate the MIL and set the DTC.

CONFIRMATION DRIVING PATTERN


  1. Connect the GTS to the DLC3.

  2. Turn the ignition switch to ON and turn the GTS on.

  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Click here.

  4. Turn the ignition switch off and wait for at least 30 seconds.

  5. Turn the ignition switch to ON and turn the GTS on.

  6. Wait 5 seconds or more.

  7. Enter the following menus: Powertrain / Engine / Trouble Codes.

  8. Read pending DTCs.

    Tech Tips


    • If a pending DTC is output, the system is malfunctioning.

    • If a pending DTC is not output, perform the following procedure.

  9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

  10. Input the DTC: P0013.

  11. Check the DTC judgment result.

    GTS Display Description
    NORMAL

    • DTC judgment completed

    • System normal
    ABNORMAL

    • DTC judgment completed

    • System abnormal
    INCOMPLETE

    • DTC judgment not completed

    • Perform driving pattern after confirming DTC enabling conditions
    N/A

    • Unable to perform DTC judgment

    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    Tech Tips


    • If the judgment result shows NORMAL, the system is normal.

    • If the judgment result shows ABNORMAL, the system has a malfunction.

    • If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.

WIRING DIAGRAM

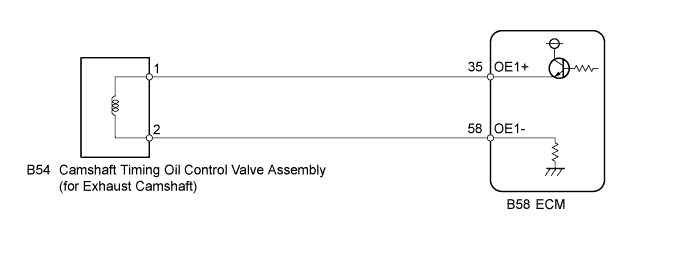

A01EJXEE27

INSPECTION PROCEDURE

Tech Tips


  • If DTC P0013 is output, check the VVT system (for exhaust camshaft) circuit.

  • Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

PROCEDURE


  1. READ OUTPUT DTC (DTC P0013)


    1. Connect the GTS to the DLC3.

    2. Turn the ignition switch to ON.

    3. Turn the GTS on.

    4. Clear the DTC after recording the freeze frame data and DTC.

    5. Turn the ignition switch off and wait for at least 30 seconds.

    6. Turn the ignition switch to ON and wait 5 seconds.

    7. Turn the GTS on.

    8. Enter the following menus: Powertrain / Engine / Trouble Codes.

    9. Read the DTCs.

      Result
      Result Proceed to
      DTC P0013 is output A
      DTC is not output B

    B

    CHECK FOR INTERMITTENT PROBLEMS Click here

    A

  2. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT)


    1. Inspect the camshaft timing oil control valve assembly (for exhaust camshaft) Click here.


    NG

    REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT) Click here

    OK

  3. CHECK HARNESS AND CONNECTOR (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT) - ECM)


    1. Disconnect the camshaft timing oil control valve assembly (for exhaust camshaft) connector.

    2. Disconnect the ECM connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      B54-1 - B58-35 (OE1+) Always Below 1 Ω
      B54-2 - B58-58 (OE1-) Always Below 1 Ω
      B54-1 or B58-35 (OE1+) - Body ground Always 10 kΩ or higher
      B54-2 or B58-58 (OE1-) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

    REPLACE ECM Click here
