FRONT BUMPER DISASSEMBLY


  1. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (w/ Bracket)

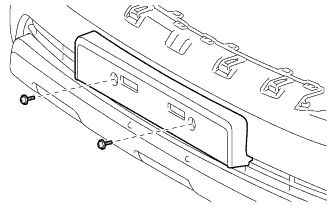

    1. A01DO8P

      Remove the 2 screws and front bumper extension mounting bracket.

  2. REMOVE FRONT SPOILER LH (w/ Front Spoiler)

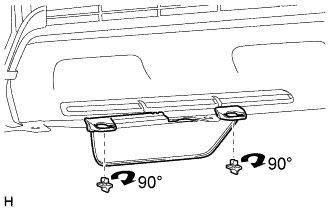

    1. A01DSW1E01

      Turn the 2 front spoiler No. 1 retainers 90° and remove the 2 front spoiler No. 1 retainers and front spoiler LH.

  3. REMOVE FRONT SPOILER RH (w/ Front Spoiler)

    Tech Tips

    Use the same procedure described for the LH side.

  4. REMOVE FRONT BUMPER REINFORCEMENT STOPPER RH (w/ Fog Light)


    1. A01DNIT

      Detach the 2 claws and front bumper reinforcement stopper RH.

  5. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    A01DMS1

    1. Disconnect the connector.

    2. Remove the 2 screws.

    3. Detach the 2 guides and remove the fog light assembly LH.

  6. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  7. REMOVE FOG LIGHT COVER LH (w/ Fog Light)

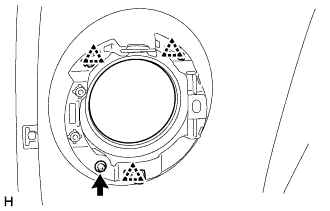

    1. A01DNKV

      Remove the screw.

    2. Detach the 3 clips and remove the fog light cover LH.

  8. REMOVE FOG LIGHT COVER RH (w/ Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  9. REMOVE FRONT BUMPER HOLE COVER LH (w/o Fog Light)

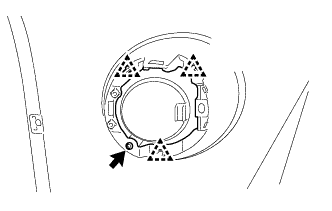

    1. A01DSX1

      Remove the screw.

    2. Detach the 3 clips and remove the front bumper hole cover LH.

  10. REMOVE FRONT BUMPER HOLE COVER RH (w/o Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  11. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH (w/ Headlight Cleaner System)


    1. A01DQL1E01
      Text in Illustration
      *1 Protective Tape

      Using a screwdriver, detach the 2 claws and separate the washer nozzle sub-assembly as shown in the illustration.

      Tech Tips

      Tape the screwdriver tip before use.

      Note

      Be careful not to damage the windshield.

    2. A01DUTI

      Disconnect the washer nozzle sub-assembly from the washer hose.

      Note

      Washer nozzles cannot be reused.

  12. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tech Tips

    Use the same procedure described for the LH side.

  13. REMOVE NO. 1 HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)


    1. A01DR69

      Disconnect the No. 1 headlight cleaner hose from the headlight washer actuator sub-assembly.

    2. Detach the 5 clamps and remove the No. 1 headlight cleaner hose from the front bumper cover.

  14. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)


    1. A01DSU8E01
      Text in Illustration
      *1 Headlight Cleaner Clamp

      Remove the headlight cleaner clamp as shown in the illustration.

    2. A01DUCFE01
      Text in Illustration
      *1 Headlight Cleaner Clamp B

      Pull down the headlight cleaner clamp B and remove it.

    3. Push the tab shown by arrow 1, detach the 2 claws and remove the headlight washer actuator sub-assembly LH as shown in the illustration.

      A01DTAWE01

  15. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tech Tips

    Use the same procedure described for the LH side.

  16. REMOVE NO. 1 ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

    A01DSDY

    Tech Tips

    Use the same procedure to remove the No. 1 ultrasonic sensor on the other side.


    1. Disconnect the connector.

    2. Detach the 2 claws and remove the No. 1 ultrasonic sensor.

  17. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

    A01DQYQ

    Tech Tips

    Use the same procedure to remove the No. 1 ultrasonic sensor retainer on the other side.


    1. Detach the 2 claws and remove the No. 1 ultrasonic sensor retainer.

  18. REMOVE NO. 2 ENGINE ROOM WIRE (w/ TOYOTA Parking Assist-sensor System)


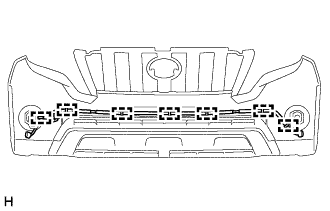

    1. A01DSDF

      Detach the 7 clamps and remove the No. 2 engine room wire.

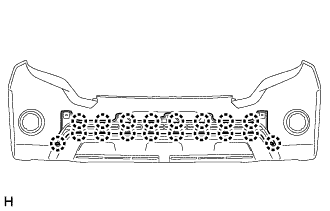

  19. REMOVE LOWER NO. 1 RADIATOR GRILLE


    1. A01DTG1

      Detach the 18 claws and remove the lower No. 1 radiator grille.
