SIDE TURN SIGNAL LIGHT ASSEMBLY INSPECTION


  1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH

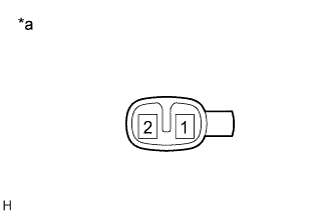

    1. A01DN2PE16
      Text in Illustration
      *a

      Component without harness connected

      (Side Turn Signal Light Assembly LH)

      Apply battery voltage to the connector and check the LED illumination condition.

      OK
      Measurement Condition Specified Condition

      Battery positive (+) → 1

      Battery negative (-) → 2

      		 LED illuminates

      If the result is not as specified, replace the side turn signal light assembly.
