FUEL LID LOCK CONTROL CABLE ASSEMBLY (for 3 Door) REMOVAL


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note


    • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  2. REMOVE FRONT SEAT ASSEMBLY (for RHD)


    1. for Manual Seat:

      Remove the front seat assembly Click here.

    2. for Walk in Seat:

      Remove the front seat assembly Click here.

  3. REMOVE CONSOLE BOX ASSEMBLY (for RHD)


    1. for Automatic Transmission:

      Remove the console box assembly Click here.

    2. for Manual Transmission:

      Remove the console box assembly Click here.

    3. w/ Refrigerated Cool Box:

      Remove the console box assembly Click here.

  4. REMOVE REAR NO. 1 SEAT ASSEMBLY (w/ Rear No. 1 Seat)


    1. for LH Side:

      Remove the rear No. 1 seat assembly Click here.

    2. for RH Side:

      Remove the rear No. 1 seat assembly Click here.

  5. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    A01DNTTE01
    Text in Illustration
    *1 Protective Tape

    1. Put protective tape around the door scuff plate.

    2. Using a screwdriver, detach the 4 clips, 10 claws and 2 guides and remove the door scuff plate.

      Tech Tips

      Tape the screwdriver tip before use.

  6. REMOVE DOOR SCUFF PLATE ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  7. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)


    1. Remove the tonneau cover.

  8. REMOVE MAT SET PLATE COVER

    A01DNTXE01
    Text in Illustration
    *1 Protective tape

    Tech Tips

    Use the same procedure for all mat set plate covers.


    1. Using a screwdriver, detach the 2 claws and remove the mat set plate cover.

      Tech Tips

      Tape the screwdriver tip before use.

  9. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE

    A01DSF1

    1. Remove the 5 screws.

    2. Detach the 6 claws and remove the rear floor mat rear support plate.

  10. REMOVE QUARTER TRIM COVER HOLE LH

    A01DOG6

    1. Detach the 2 claws and 2 guides and remove the quarter trim cover hole.

  11. REMOVE REAR FLOOR CARPET ASSEMBLY

    A01DTIS

    1. Remove the rear floor carpet.

  12. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    A01DNOJ

    Tech Tips

    Use the same procedure for the other No. 1 luggage compartment trim hook.


    1. Remove the luggage compartment trim hook by turning it clockwise.

  13. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Tonneau Cover)

    A01DMF1E01
    Text in Illustration
    *1 Protective tape

    Tech Tips

    Use the same procedure for the other tonneau cover holder cap.


    1. Using a screwdriver, detach the 2 claws and remove the tonneau cover holder cap.

      Tech Tips

      Tape the screwdriver tip before use.

  14. REMOVE FRONT DECK SIDE TRIM COVER (w/ Tonneau Cover)

    A01DTB0E01
    Text in Illustration
    *1 Protective tape

    Tech Tips

    Use the same procedure for the other front deck side trim cover.


    1. Using a screwdriver, detach the 2 claws and remove the front deck side trim cover.

      Tech Tips

      Tape the screwdriver tip before use.

  15. REMOVE QUARTER TRIM POCKET TRAY

    A01DRRVE01
    Text in Illustration
    *1 Protective tape

    1. Put protective tape around the quarter trim pocket tray.

    2. Using a screwdriver, detach the 6 claws and 2 guides, and remove the quarter trim pocket tray.

      Tech Tips

      Tape the screwdriver tip before use.

  16. REMOVE OUTER LAP BELT ANCHOR COVER

    A01DRK4

    Tech Tips

    Use the same procedure for the other outer lap belt anchor cover.


    1. Detach the 3 claws and remove the outer lap belt anchor cover.

  17. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    A01DO0R

    1. Remove the bolt and disconnect the front seat outer belt floor anchor.

    2. A01DOAG

      Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.

    3. Remove the 3 bolts and 2 screws.

    4. Detach the 9 claws and 12 clips and remove the deck trim side panel.

      A01DR76

  18. REMOVE REAR QUARTER TRIM PANEL ASSEMBLY LH

    A01DPPE

    1. Detach the 7 clips.

    2. A01DOBV

      Detach the 4 claws and 2 guides, pass the rear No. 1 seat belt floor anchor through the rear quarter trim panel and remove the rear quarter trim panel.

  19. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY


    1. A01DSAV

      Detach the 3 claws.

    2. Remove the fuel lid lock control cable assembly and fuel lid lock open lever sub-assembly.

  20. REMOVE FRONT FLOOR CARPET ASSEMBLY

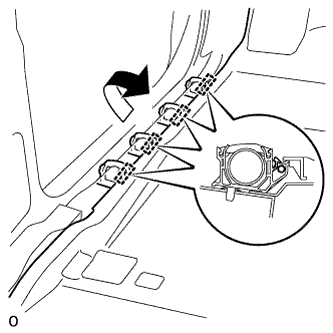

    1. A01DNV0

      for LHD:


      1. Detach the 4 clamps and fold back the front floor carpet from the floor carpet hooks.

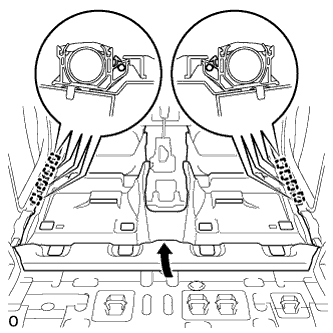

    2. A01DP2Y

      for RHD:


      1. Detach the 8 clamps and fold back the front floor carpet from the floor carpet hooks.

  21. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY


    1. A01DT1H

      Turn the cable counterclockwise and remove the cable from the retainer.

    2. A01DN5G

      Turn the lock retainer counterclockwise and remove the lock retainer.

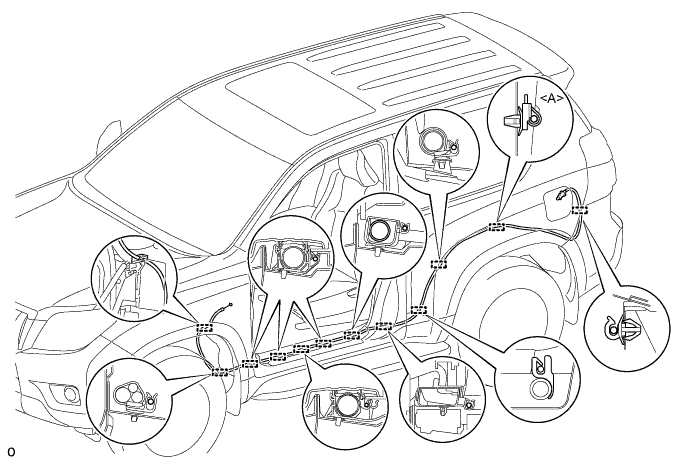

    3. for LHD:


      1. Using a clip remover, detach the clamp labeled <A>.

      2. Detach the 11 clamps and remove the fuel lid lock control cable.

        A01DR7GE01

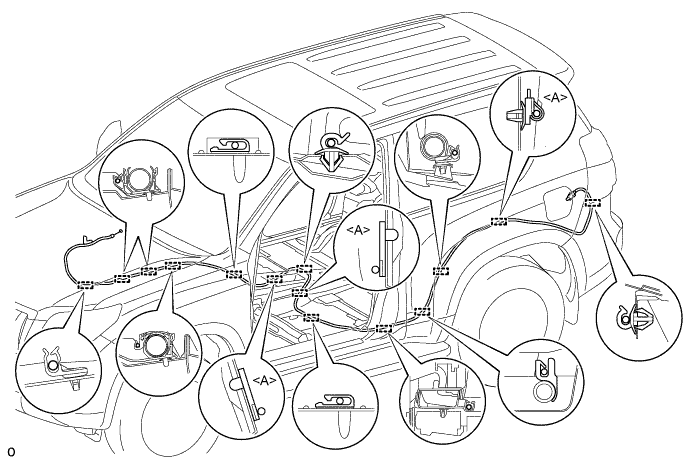

    4. for RHD:


      1. Using a clip remover, detach the 3 clamps labeled <A>.

      2. Detach the 11 clamps and remove the fuel lid lock control cable.

        A01DQGDE01
