ROOF HEADLINING (for 5 Door) REMOVAL

Tech Tips

Use the same procedure for RHD and LHD vehicles.
The procedure listed below is for LHD vehicles.

PRECAUTION

Note

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Note

When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.
REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)
1. for Manual Seat Type:

  Remove the rear No. 2 seat assembly Click here.
2. for Power Seat Type:

  Remove the rear No. 2 seat assembly Click here.
3. for Face to Face Seat Type:

  Remove the rear No. 2 seat assembly Click here.
REMOVE REAR NO. 1 SEAT ASSEMBLY (w/ Rear No. 1 Seat)
1. for 60/40 Split Slide Walk-in Seat Type LH Side:

  Remove the rear No. 1 seat assembly Click here.
2. for 60/40 Split Slide Walk-in Seat Type RH Side:

  Remove the rear No. 1 seat assembly Click here.
REMOVE REAR NO. 1 SEATBACK ASSEMBLY (w/ Rear No. 1 Seat)
1. for 60/40 Split Double-folding Seat Type LH Side:

  Remove the rear No. 1 seatback assembly Click here.
2. for 60/40 Split Double-folding Seat Type RH Side:

  Remove the rear No. 1 seatback assembly Click here.
REMOVE DOOR SCUFF PLATE ASSEMBLY LH
Text in Illustration

*1 Protective Tape
1. Put protective tape around the door scuff plate.
2. Using a screwdriver, detach the 4 clips, 10 claws and 2 guides and remove the door scuff plate.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE DOOR SCUFF PLATE ASSEMBLY RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE COWL SIDE TRIM BOARD LH
1. Remove the clip.
2. Detach the clip and claw and remove the cowl side trim board.
REMOVE COWL SIDE TRIM BOARD RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
1. Remove the front door opening trim weatherstrip.
REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE FRONT NO. 1 ASSIST GRIP PLUG LH
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for the other front No. 1 assist grip plug.
1. Using a screwdriver, detach the 2 claws and remove the front No. 1 assist grip plug.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE FRONT NO. 1 ASSIST GRIP PLUG RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE NO. 1 ASSIST GRIP
Tech Tips

Use the same procedure for the other No. 1 assist grip.
1. Remove the 2 bolts.
2. Detach the 2 claws and remove the No. 1 assist grip.

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Protective Tape

REMOVE FRONT PILLAR GARNISH LH

Detach the 3 guides and remove the front pillar garnish.

Text in Illustration
*1	Curtain Shield Airbag Assembly
*2	Adhesive Tape
*3	Protective Cover

w/ Curtain Shield Airbag:

Protect the curtain shield airbag assembly.

Completely cover the airbag with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.

Note

Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

REMOVE FRONT PILLAR GARNISH RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE REAR NO. 1 FLOOR STEP COVER (w/ Rear No. 2 Seat)
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for all rear No. 1 floor step covers.
1. Using a screwdriver, detach the 2 claws and remove the rear No. 1 floor step cover.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE QUARTER SCUFF PLATE LH (w/ Rear No. 2 Seat)
1. Remove the 2 bolts and quarter scuff plate.
REMOVE QUARTER SCUFF PLATE RH (w/ Rear No. 2 Seat)

Tech Tips

Use the same procedure described for the LH side.
REMOVE REAR DOOR SCUFF PLATE LH
Text in Illustration

*1 Protective Tape
1. Put protective tape around the rear door scuff plate.
2. Using a screwdriver, detach the 3 clips, 6 claws and 2 guides and remove the rear door scuff plate.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE REAR DOOR SCUFF PLATE RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
1. Remove the rear door opening trim weatherstrip.
REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE OUTER LAP BELT ANCHOR COVER
Tech Tips

Use the same procedure for the other outer lap belt anchor cover.
1. Detach the 3 claws and remove the outer lap belt anchor cover.
REMOVE LOWER CENTER PILLAR GARNISH LH
1. Remove the bolt and disconnect the front seat outer belt floor anchor.
2. Detach the 4 claws and 2 clips and remove the lower center pillar garnish.
REMOVE LOWER CENTER PILLAR GARNISH RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE NO. 2 ASSIST GRIP PLUG LH
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for the other front No. 2 assist grip plug.
1. Using a screwdriver, detach the 2 claws and remove the front No. 2 assist grip plug.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE NO. 2 ASSIST GRIP PLUG RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE NO. 2 ASSIST GRIP
Tech Tips

Use the same procedure for the other No. 2 assist grip.
1. Remove the 2 bolts.
2. Detach the 2 claws and remove the No. 2 assist grip.
REMOVE CENTER PILLAR GARNISH LH
1. Move the front shoulder belt anchor adjuster to the lowest position.
2. Remove the bolt.
3. Detach the 2 clips and 2 guides.
4. Pass the front seat outer belt floor anchor through the center pillar garnish and remove the center pillar garnish.
REMOVE CENTER PILLAR GARNISH RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
1. Remove the tonneau cover.
REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/o Rear No. 2 Seat)
Tech Tips

Use the same procedure for the other front luggage compartment trim cover.
1. Detach the 4 claws and remove the cap.
2. Text in Illustration

  *1 Luggage Hold Belt Striker

  Remove the bolt, luggage hold belt striker and front luggage compartment trim cover.
REMOVE NO. 1 DECK BOARD SUB-ASSEMBLY (w/o Rear No. 2 Seat)
1. Detach the clip and remove the No. 1 deck board.
REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)
1. Detach the 5 clips and 4 claws and remove the rear floor mat rear support plate.
REMOVE FLOOR SIDE RAIL LH (w/ Deck Rail)
1. Remove the 3 bolts and floor side rail.
REMOVE FLOOR SIDE RAIL RH (w/ Deck Rail)

Tech Tips

Use the same procedure described for the LH side.

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Luggage Hold Belt Striker

REMOVE REAR FLOOR CARPET ASSEMBLY (w/o Rear No. 2 Seat)

Detach the 4 claws and remove the rear floor carpet.

Text in Illustration
*A	w/o Deck Rail	*B	w/ Deck Rail
*C	for Face to Face Seat Type	-	-

REMOVE REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER
Tech Tips

Use the same procedure for the other rear No. 1 seat outer lap belt anchor cover.
1. Detach the 3 claws and remove the rear No. 1 seat outer lap belt anchor cover.
REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Tech Tips

Use the same procedure for the other No. 1 luggage compartment trim hook.
1. Remove the luggage compartment trim hook by turning it clockwise.
REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Tonneau Cover)
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for the other No. 1 tonneau cover holder cap.
1. Using a screwdriver, detach the 2 claws and remove the No. 1 tonneau cover holder cap.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE FRONT DECK SIDE TRIM COVER (w/ Tonneau Cover)
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for the other front deck side trim cover.
1. Using a screwdriver, detach the 2 claws and remove the front deck side trim cover.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE ASSIST GRIP PLUG (w/ Rear No. 2 Seat)
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for all assist grip plugs.
1. Using a screwdriver, detach the 2 claws and remove the assist grip plug.

  Tech Tips

  Tape the screwdriver tip before use.
REMOVE ASSIST GRIP SUB-ASSEMBLY (w/ Rear No. 2 Seat)
Tech Tips

Use the same procedure for the other assist grip.
1. Remove the 2 bolts and assist grip.
REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
1. w/o Rear No. 2 Seat:
  1. Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.
  2. Detach the 6 claws and 2 guides and disconnect the rear seatback lock control lever base.
  3. Remove the 4 bolts and 2 screws.
  4. Detach the 5 clips and 8 claws.
  5. Pass the rear seatback lock control lever base through the deck trim side panel and remove the deck trim side panel.
2. w/ Rear No. 2 Seat:
  1. Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.
  2. Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.
  3. Remove the 2 bolts and 2 screws.
  4. Detach the 4 clips and 8 claws and remove the deck trim side panel.
REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
1. w/o Rear No. 2 Seat:
  1. Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.
  2. Detach the 6 claws and 2 guides and disconnect the rear seatback lock control lever base.
  3. Remove the 4 bolts and screws.
  4. Detach the 5 clips and 8 claws.
  5. Disconnect each connector.
  6. Pass the rear seatback lock control lever base through the deck trim side panel and remove the deck trim side panel.
2. w/ Rear No. 2 Seat:
  1. Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.
  2. Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.
  3. Remove the 2 bolts and screw.
  4. Detach the 4 clips and 8 claws.
  5. Disconnect each connector and remove the deck trim side panel.
REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
1. Move the rear shoulder belt anchor adjuster to the lowest position.
2. Detach the 2 clips and 2 guides.
3. Pass the rear No. 1 seat outer belt floor anchor through the front quarter trim panel and remove the front quarter trim panel.
REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE REAR QUARTER TRIM PANEL ASSEMBLY LH
1. w/o Rear No. 2 Seat:
  1. Detach the 7 clips and 2 guides and remove the rear quarter trim panel.
2. w/ Rear No. 2 Seat:
  1. Detach the 7 clips and 2 guides.
  2. Detach the 4 clips and 2 guides, pass the rear No. 2 seat outer belt floor anchor through the rear quarter trim panel and remove the rear quarter trim panel.
REMOVE REAR QUARTER TRIM PANEL ASSEMBLY RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE ASSIST GRIP SUB-ASSEMBLY
Text in Illustration

*1 Protective Tape

Tech Tips

Use the same procedure for the other assist grip.
1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

  Tech Tips

  Tape the screwdriver tip before use.
2. Detach the 2 clips and remove the assist grip.
3. Remove the 2 clips from the vehicle body.
REMOVE REAR ASSIST GRIP ASSEMBLY LH
Text in Illustration

*1 Protective Tape
1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

  Tech Tips

  Tape the screwdriver tip before use.
2. Detach the 2 clips and remove the assist grip.
3. Remove the 2 clips from the vehicle body.
REMOVE REAR ASSIST GRIP ASSEMBLY RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE ASSIST GRIP (w/ Rear No. 2 Seat)
Tech Tips

Use the same procedure for the other assist grip.
1. Using a screwdriver, detach the 4 claws and open the 2 covers.

  Tech Tips

  Tape the screwdriver tip before use.

  Text in Illustration

  *1 Protective Tape
2. Remove the 2 bolts and assist grip.
REMOVE VISOR BRACKET COVER LH
Tech Tips

Use the same procedure for the other visor bracket cover.
1. Detach the 4 claws and remove the visor bracket cover.
REMOVE VISOR BRACKET COVER RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE VISOR ASSEMBLY LH
1. Remove the 2 screws and visor.
REMOVE VISOR ASSEMBLY RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE VISOR HOLDER
Tech Tips

Use the same procedure for the other visor holder.
1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.
2. Detach the 2 claws and remove the visor holder.
REMOVE MAP LIGHT ASSEMBLY
1. Detach the 4 clips.
2. Disconnect the connector and remove the map light.
REMOVE RAIN SENSOR COVER (w/ Rain Sensor)
1. Detach the 2 claws and remove the rain sensor cover.
REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)
1. Detach the 2 claws and slide the inner rear view mirror stay holder cover in the direction indicated by the arrow in the illustration.
2. Detach the 2 claws and remove the inner rear view mirror stay holder cover.
REMOVE NO. 1 ROOM LIGHT ASSEMBLY
1. Remove the No. 1 room light assembly Click here.
REMOVE NO. 2 ROOM LIGHT ASSEMBLY
1. Remove the No. 2 room light assembly Click here.
REMOVE TELEVISION BASE (w/ Rear Seat Entertainment System)
1. Detach the 7 claws and 4 clips and remove the television base.
REMOVE REAR SIDE NO. 1 AIR DUCT (w/ Rear Air Conditioning System)
1. Detach the 2 claws and remove the cooler plate.
2. Swing the bottom of the duct sideways and remove the duct.
REMOVE REAR HEADER SPEAKER ASSEMBLY (w/ Rear Air Conditioning System)
1. Disconnect the connector.
2. Remove the 2 bolts and rear header speaker assembly.

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Protective Tape

Text in Illustration
*1	Protective Tape

REMOVE ROOF HEADLINING ASSEMBLY

w/ EC Mirror:

Disconnect the inner mirror connector.
w/ Rain Sensor:

Disconnect the rain sensor connector.
w/ Sliding Roof:

Disconnect the drive gear connector.
w/ Digital Audio Broadcasting Antenna:

Disconnect the connector and detach the wire harness clamp.
Disconnect the 2 connectors and detach the 3 clamps from the front pillar LH.
Remove the bolt.
Disconnect the 2 connectors and detach the 3 clamps from the front pillar RH.
Disconnect the 2 connectors and detach the clamp from the rear pillar LH.
Disconnect the connector and detach the 3 clamps from the rear pillar RH.
w/ Rear Seat Entertainment System:

Disconnect the 2 connectors.
w/o Sliding Roof:
1. Detach the 2 clips.

Text in Illustration
*1	Guide
*2	Fastener

w/ Sliding Roof:

Detach the 2 clips, 2 guides and 8 fasteners.

Text in Illustration
*1	Guide
*2	Fastener

w/ Rear Seat Entertainment System:

Detach the 2 clips, 2 guides and 6 fasteners.

Remove the roof headlining from the back door as shown in the illustration.

Note

Be careful not to damage the roof headlining when removing it.

REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
1. Detach the 5 claws of the front shoulder belt anchor plate and slide the front shoulder belt anchor plate in the direction of the arrow to remove it.
REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
1. Detach the 6 claws of the rear shoulder belt anchor plate and slide the rear shoulder belt anchor plate in the direction of the arrow to remove it.
REMOVE REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

Tech Tips

Use the same procedure described for the LH side.

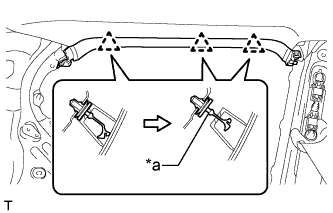

REMOVE NO. 1 ROOF SIDE RAIL GARNISH LH
1. Text in Illustration

  *1 Cut Off Position

  Detach the 3 clips.
2. Cut off the 3 clips and remove the roof side rail garnish.
3. Remove 3 clips from the vehicle body.
REMOVE NO. 1 ROOF SIDE RAIL GARNISH RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE ROOF SIDE INNER GARNISH CAP LH (w/o Rear No. 2 Seat)
1. Detach the 4 claws and 2 guides and remove the roof side inner garnish cap.
REMOVE ROOF SIDE INNER GARNISH CAP RH (w/o Rear No. 2 Seat)

Tech Tips

Use the same procedure described for the LH side.
REMOVE REAR SEAT SHOULDER BELT HANGER LH
1. Detach the claw and guide and remove the rear seat shoulder belt hanger.
REMOVE REAR SEAT SHOULDER BELT HANGER RH

Tech Tips

Use the same procedure described for the LH side.
REMOVE QUARTER TRIM COVER
Tech Tips

Use the same procedure for the other quarter trim cover.
1. Detach the 2 claws and remove the quarter trim cover.
REMOVE QUARTER TRIM JACK COVER
1. Detach the 3 claws and 2 guides and remove the quarter trim jack cover.
REMOVE DECK SIDE TRIM COVER LH
1. Detach the 3 claws and 2 guides and remove the deck side trim cover.
REMOVE REAR SIDE RAIL SPACER LH (w/o Curtain Shield Airbag)
1. Detach the 2 claws and remove the rear side rail spacer.
REMOVE REAR SIDE RAIL SPACER RH (w/o Curtain Shield Airbag)

Tech Tips

Use the same procedure described for the LH side.
REMOVE REAR NO. 2 SIDE RAIL SPACER LH (w/o Curtain Shield Airbag)
1. Detach the 2 claws and remove the rear No. 2 side rail spacer.
REMOVE REAR NO. 2 SIDE RAIL SPACER RH (w/o Curtain Shield Airbag)

Tech Tips

Use the same procedure described for the LH side.
REMOVE REAR NO. 3 SIDE RAIL SPACER LH
1. Detach the 2 claws and remove the rear No. 3 side rail spacer.
REMOVE REAR NO. 3 SIDE RAIL SPACER RH

Tech Tips

Use the same procedure described for the LH side.
