STARTER (for 2.0 kW Type) DISASSEMBLY

Click here
Click here Click here
  1. Click here

    REMOVE STARTER YOKE ASSEMBLY

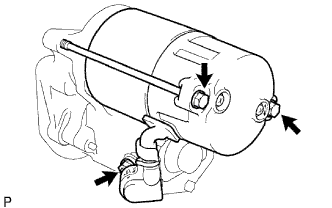

    1. A01DSEQE02

      Remove the nut, and then disconnect the lead wire from terminal C.

    2. Remove the 2 through bolts.

    3. Pull out the starter yoke together with the starter armature.

    4. Remove the O-ring from the starter yoke.

  2. Click here

    REMOVE MAGNET STARTER SWITCH ASSEMBLY


    1. Remove the 2 screws and magnet starter switch.

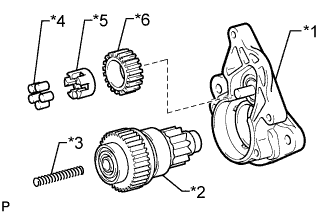

    2. A01DRHRE03

      Remove the idle gear, retainer, clutch roller, return spring and starter clutch from the starter drive housing.

      Table 1. Text in Illustration
      *1 Starter Drive Housing
      *2 Starter Clutch
      *3 Return Spring
      *4 Clutch Roller
      *5 Retainer
      *6 Idle Gear
    3. A01DOTCE03

      Using a magnet hand, remove the steel ball from the clutch.

      Table 2. Text in Illustration
      *1 Magnet Hand
  3. Click here

    REMOVE STARTER BRUSH HOLDER ASSEMBLY

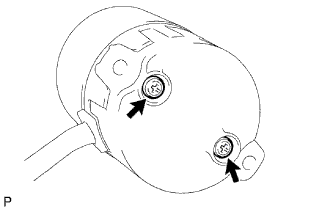

    1. A01DOFHE01

      Remove the 2 screws and commutator end frame from the starter yoke.

    2. Remove the O-ring from the starter yoke.

    3. Disconnect the 4 brushes from the starter brush holder.

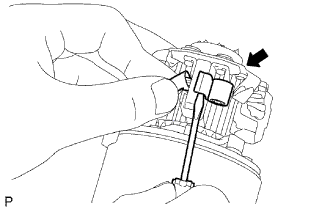

      1. A01DRGLE01

        Using a screwdriver, hold back the brush spring.

      2. Disconnect the brush from the brush holder.

    4. Remove the brush holder from the starter yoke.

  4. Click here

    REMOVE STARTER ARMATURE ASSEMBLY


    1. Remove the starter armature from the starter yoke.
