CRUISE CONTROL SYSTEM ROAD TEST


  1. INSPECT SET SWITCH


    1. A01DSZA

      Turn the cruise control switch on.

    2. Check that the CRUISE main indicator light in the combination meter assembly illuminates.

    3. Drive the vehicle at a desired speed (between 40 km/h and 200 km/h [25 mph and 125 mph]).

    4. A01DT6S

      Push the cruise control switch to -SET.

    5. Check that the SET indicator light in the combination meter assembly illuminates.

    6. After releasing the switch, check that the vehicle cruises at the desired speed.

  2. INSPECT "+" SWITCH


    1. A01DSZA

      Turn the cruise control switch on.

    2. Drive the vehicle at a desired speed (between 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. A01DT6S

      Push the cruise control switch to -SET.

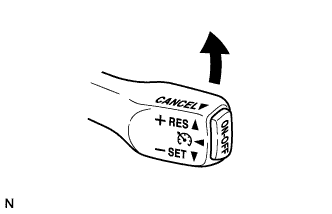

    4. A01DS5C

      Check that the vehicle speed increases while the cruise control switch is pushed to +RES, and that the vehicle cruises at the set speed when the cruise control switch is released.

    5. Momentarily push the cruise control switch upward to +RES and immediately release it. Check that the vehicle speed increases by about 1.6 km/h (1 mph) (tap-up function).

  3. INSPECT "-" SWITCH


    1. A01DSZA

      Turn the cruise control switch on.

    2. Drive the vehicle at a desired speed (between 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. A01DT6S

      Push the cruise control switch to -SET.

    4. Check that the vehicle speed decreases while the cruise control switch is pushed down to -SET, and that the vehicle cruises at the set speed when the cruise control switch is released.

    5. Momentarily push the cruise control switch downward to -SET and immediately release it. Check that the vehicle speed decreases by about 1.6 km/h (1 mph) (tap-down function).

  4. INSPECT CANCEL FUNCTION (CANCEL SWITCH)


    1. A01DSZA

      Turn the cruise control switch on.

    2. Drive the vehicle at a desired speed (between 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. A01DT6S

      Push the cruise control switch to -SET.

    4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.


      • Depressing the brake pedal

      • Pushing the cruise control switch off

      • Pulling the cruise control switch to CANCEL

      • Driving the vehicle while the vehicle stability control system is operating

      • for Automatic Transmission:

        Moving the shift lever from D to N, or selecting 3rd, 2nd or 1st range with the shift lever in S

      • for Manual Transmission:

        Depressing the clutch pedal

  5. INSPECT RES (RESUME) SWITCH


    1. A01DSZA

      Turn the cruise control switch on.

    2. Drive the vehicle at a desired speed (between 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. A01DT6S

      Push the cruise control switch to -SET.

    4. Cancel the cruise control system by performing one of the following.


      • Depressing the brake pedal

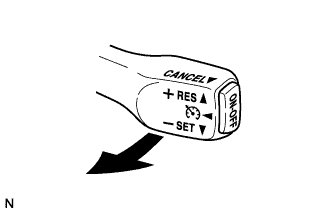

      • A01DTBX

        Pulling the cruise control switch to CANCEL

      • Driving the vehicle while the vehicle stability control system is operating

      • for Automatic Transmission:

        Moving the shift lever from D to N, or selecting 3rd, 2nd or 1st range with the shift lever in S

      • for Manual Transmission:

        Depressing the clutch pedal

    5. A01DS5C

      After the cruise control switch is pushed up to +RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed that was set before the cancellation.
