THERMOSTAT REMOVAL


  1. REMOVE UPPER RADIATOR SUPPORT SEAL


    1. Remove the 13 clips and upper radiator support seal.

  2. REMOVE FRONT BUMPER COVER LOWER


    1. Remove the clip, 5 bolts and front bumper cover lower.

  3. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY


    1. Remove the 4 bolts.

    2. A01DQWQ

      Unhook the engine under cover from the vehicle body as shown in the illustration.

  4. DRAIN ENGINE COOLANT

    CAUTION:

    Do not remove the radiator reservoir cap while the engine and radiator are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.


    1. Loosen the radiator drain cock plug.

      A01DQCVE01
      Text in Illustration
      *1 Radiator Cap *2 Radiator Reservoir
      *3 Radiator Drain Cock Plug *4 Cylinder Block Drain Cock Plug

      Tech Tips

      Collect the coolant in a container and dispose of it according to the regulations in your area.

    2. Drain the coolant by removing the radiator cap.

    3. Loosen the cylinder block drain cock plug.

    4. Loosen the cylinder block drain cock plug and drain the coolant from the engine.

      Note

      If coolant is not drained from the radiator drain cock plug, cylinder block drain cock plugs and radiator reservoir, clogging in the radiator or coolant leakage from the seal of the water pump may result.

  5. DISCONNECT NO. 1 RADIATOR HOSE

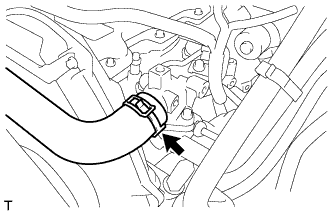

    A01DMSA

  6. REMOVE WATER OUTLET

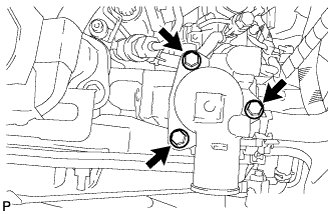

    1. A01DNH0

      Remove the 3 bolts and water outlet.

  7. REMOVE THERMOSTAT


    1. Remove the thermostat with gasket.

    2. Remove the gasket from the thermostat.
