INTERCOOLER (w/ DPF) REMOVAL


  1. REMOVE RADIATOR ASSEMBLY WITH INTERCOOLER ASSEMBLY

    Click here

  2. REMOVE NO. 2 RADIATOR TO SUPPORT SEAL

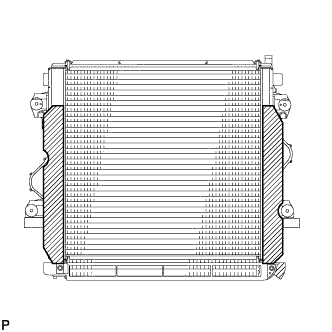

    1. A01DMML

      Remove the 2 No. 2 radiator to support seals from the intercooler.

  3. REMOVE INTERCOOLER ASSEMBLY

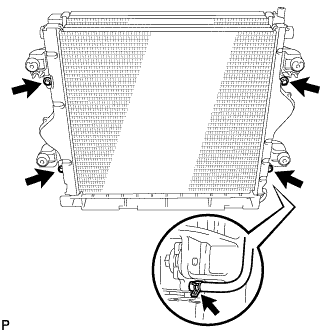

    1. A01DP1T

      Disconnect the vacuum hose from the intercooler.

    2. Remove the 4 bolts and intercooler from the radiator.
