CANISTER REMOVAL


  1. REMOVE CANISTER

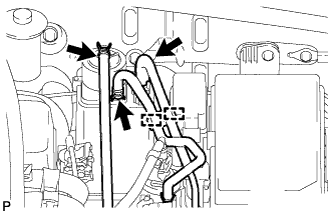

    A01DNW8

    1. Disconnect the vent line hose.

    2. Disconnect the purge line hose.

    3. Disconnect the air inlet line hose.

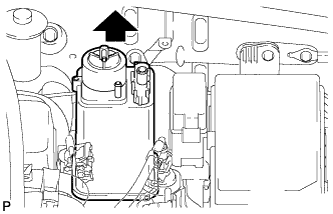

    4. A01DNP2

      Remove the canister from the bracket.
