AIR PUMP INSTALLATION


  1. INSTALL AIR PUMP

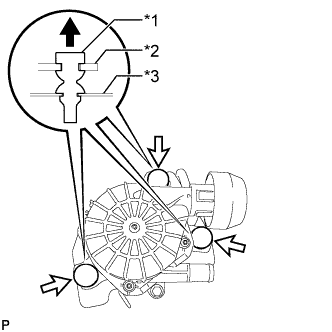

    1. A01DTKXE01
      Text in Illustration
      *1 Insulator
      *2 Air Pump
      *3 Air Pump Bracket
      A01DQPB Upper

      Attach the 3 fittings of the air pump insulator to install the air pump to the bracket.

    2. Attach the air pump connector clamp.

  2. INSTALL AIR PUMP ASSEMBLY


    1. Install the air pump assembly with the 3 bolts.

      Torque:
      20 N*m  { 204 kgf*cm, 15 ft.*lbf }

    2. Connect the air pump connector and attach the wire harness clamp.

  3. CONNECT NO. 1 AIR INJECTION SYSTEM HOSE

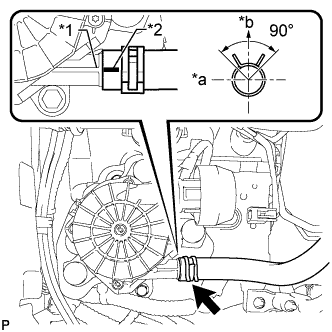

    1. A01DSVME01
      Text in Illustration
      *1 Rib
      *2 Paint Mark
      *a Front
      *b Upper

      Connect the No. 1 air injection system hose so that its paint mark aligns with the rib of the air pump as shown in the illustration.

      Tech Tips


      • Make sure the paint mark of the No. 1 air injection system hose is facing upward.

      • Make sure the direction of the hose clamp is as shown in the illustration.
