PURGE VALVE REMOVAL

Click here
Click here Click here
  1. Click here

    REMOVE V-BANK COVER


    1. A01DQBNE01

      Raise the front of the V-bank cover to detach the 2 pins. Then remove the 2 V-bank cover hooks from the bracket, and remove the V-bank cover.

      Table 1. Text in Illustration
      *1 Pin
      *2 Hook
  2. Click here

    REMOVE PURGE VSV


    1. Disconnect the purge VSV connector.

    2. Disconnect the 2 purge line hoses.

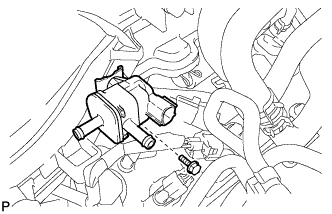

    3. A01DURJ

      Remove the bolt and purge VSV.
