CANISTER REMOVAL


  1. REMOVE CANISTER (for Single Tank Type)


    1. A01DNW8

      Disconnect the purge line hose from the canister.

    2. Disconnect the vent line hose from the canister.

    3. Disconnect the air inlet line hose from the canister.

    4. A01DNP2

      Remove the canister from the bracket.

  2. REMOVE CANISTER (for Double Tank Type)

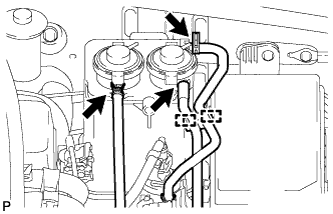

    1. A01DMB1

      Disconnect the purge line hose from the canister.

    2. Disconnect the vent line hose from the canister.

    3. Disconnect the air inlet line hose from the canister.

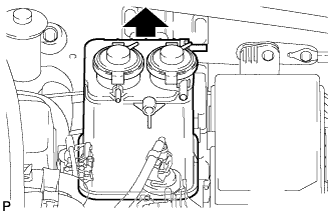

    4. A01DMQ2

      Remove the canister from the bracket.
